Rolling Shutters/Aluminium & Stainless Shutters
Aluminium Rolling Shutter
Light, corrosion resistant, and made to be looked at.

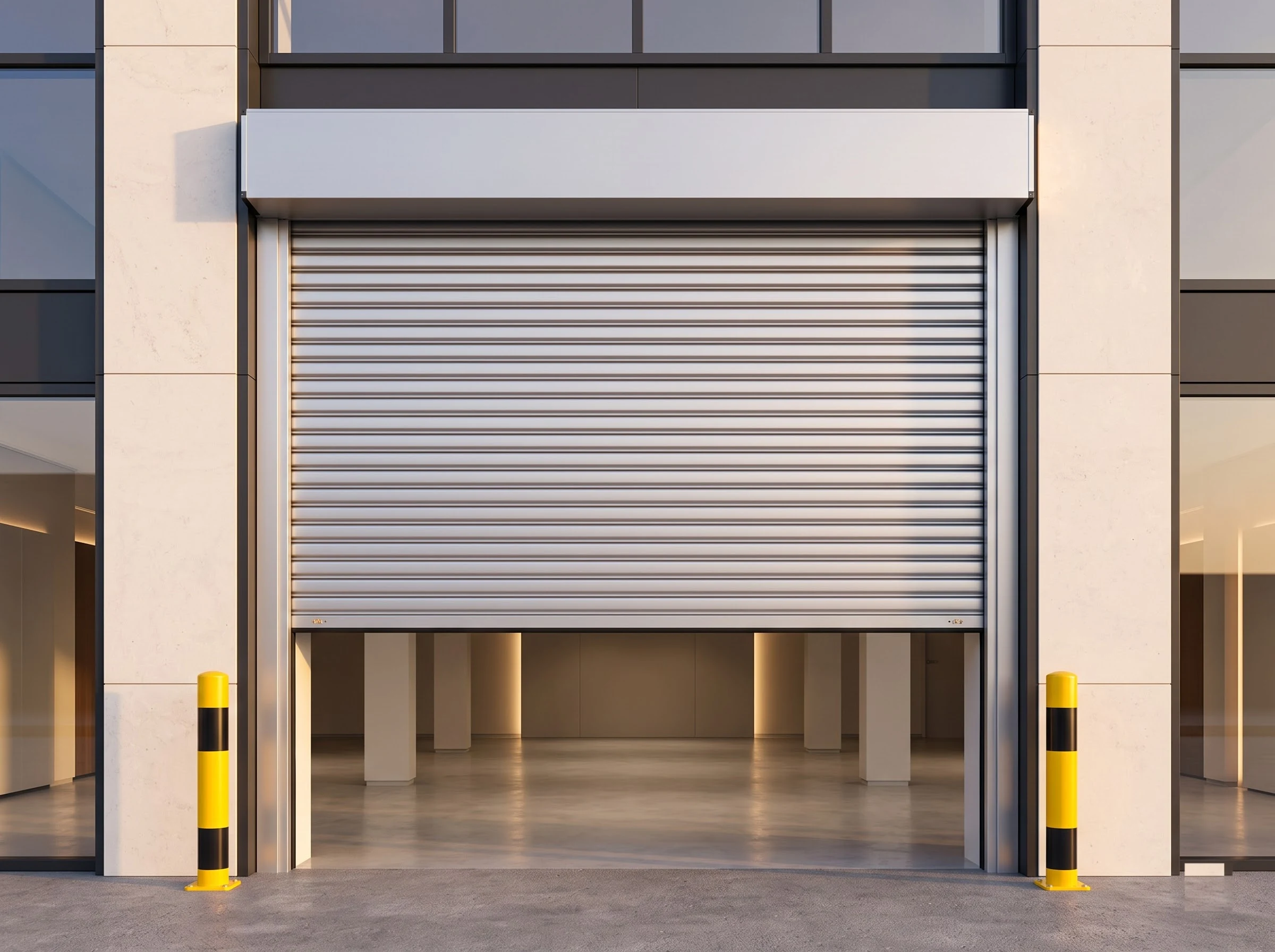

Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Standard
- Approx. 1.0 mm class
- Heavy duty
- Approx. 1.2–1.5 mm class
- Premium
- Extruded, configuration dependent
- Finish
- Mill, anodised, powder coated, RAL
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About Aluminium Rolling Shutter
Aluminium is specified for three reasons: it does not corrode the way steel does, it is light enough that a large curtain stays easy to operate, and it takes a finish that suits a front elevation rather than a service yard.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Standard — roll-formed
Lightweight roll-formed aluminium profile in approximately the 1.0 mm class, for shops, offices and commercial entrances.
Heavy duty — roll-formed
Heavier roll-formed aluminium profile in approximately the 1.2 to 1.5 mm class, for wider openings and heavier use.

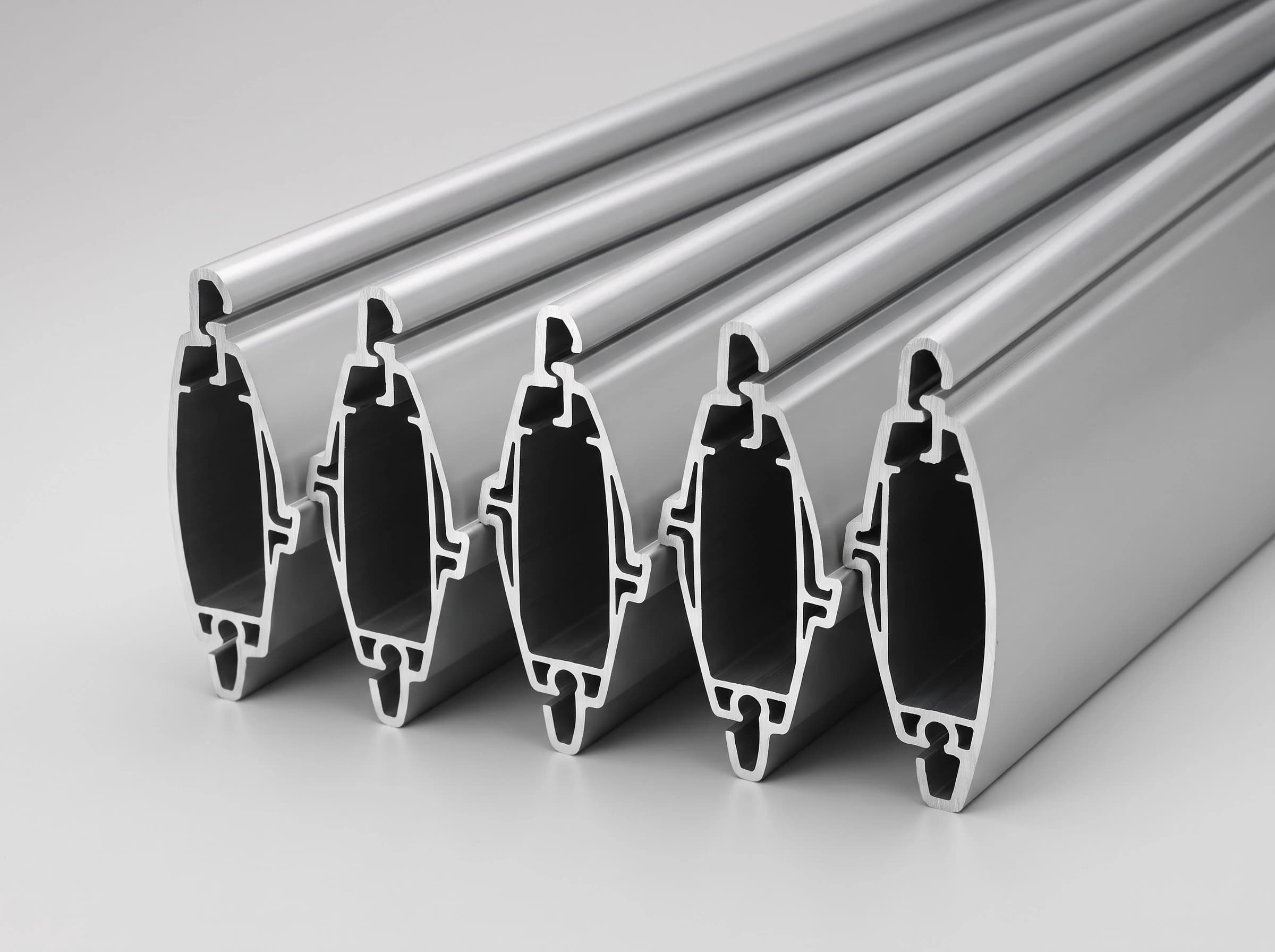

Premium — extruded
Extruded architectural aluminium profile. Thickness and profile dimensions are configuration dependent, because an extruded section is specified by its geometry rather than by sheet thickness.
10Gallery
Aluminium Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- Aluminium Rolling Shutter
- Material
- Aluminium
- Material grade
- Aluminium alloy selected according to the profile and system
- Coating
- Mill finish, anodised or powder coated
- Surface treatment
- Anodised or powder coated
Curtain7 fields
- Construction
- Roll-formed aluminium, or extruded architectural aluminium on the premium configuration
- Profile
- Profile dependent; single wall, double wall or insulated depending on configuration
- Profile height
- Profile dependent
- Slat thickness
- Approximately 1.0 mm class standard / 1.2–1.5 mm class heavy duty / extruded configuration dependent
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected profile and material
- Curtain weight
- Calculated from the selected profile, material and opening dimensions
An extruded architectural section is specified by geometry rather than by sheet thickness.
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements

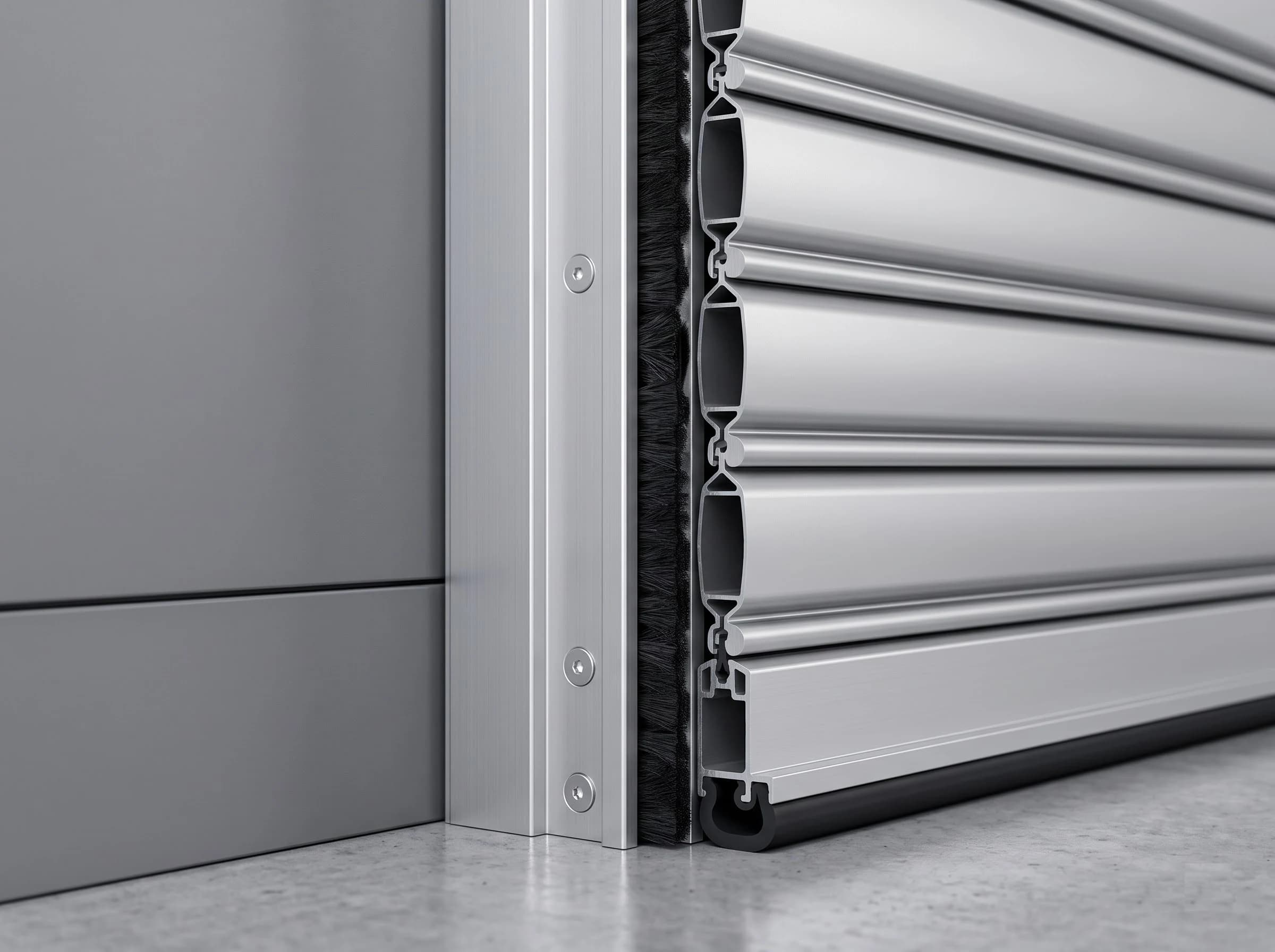

Guide7 fields
- Guide material
- Aluminium or steel depending on the system
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent

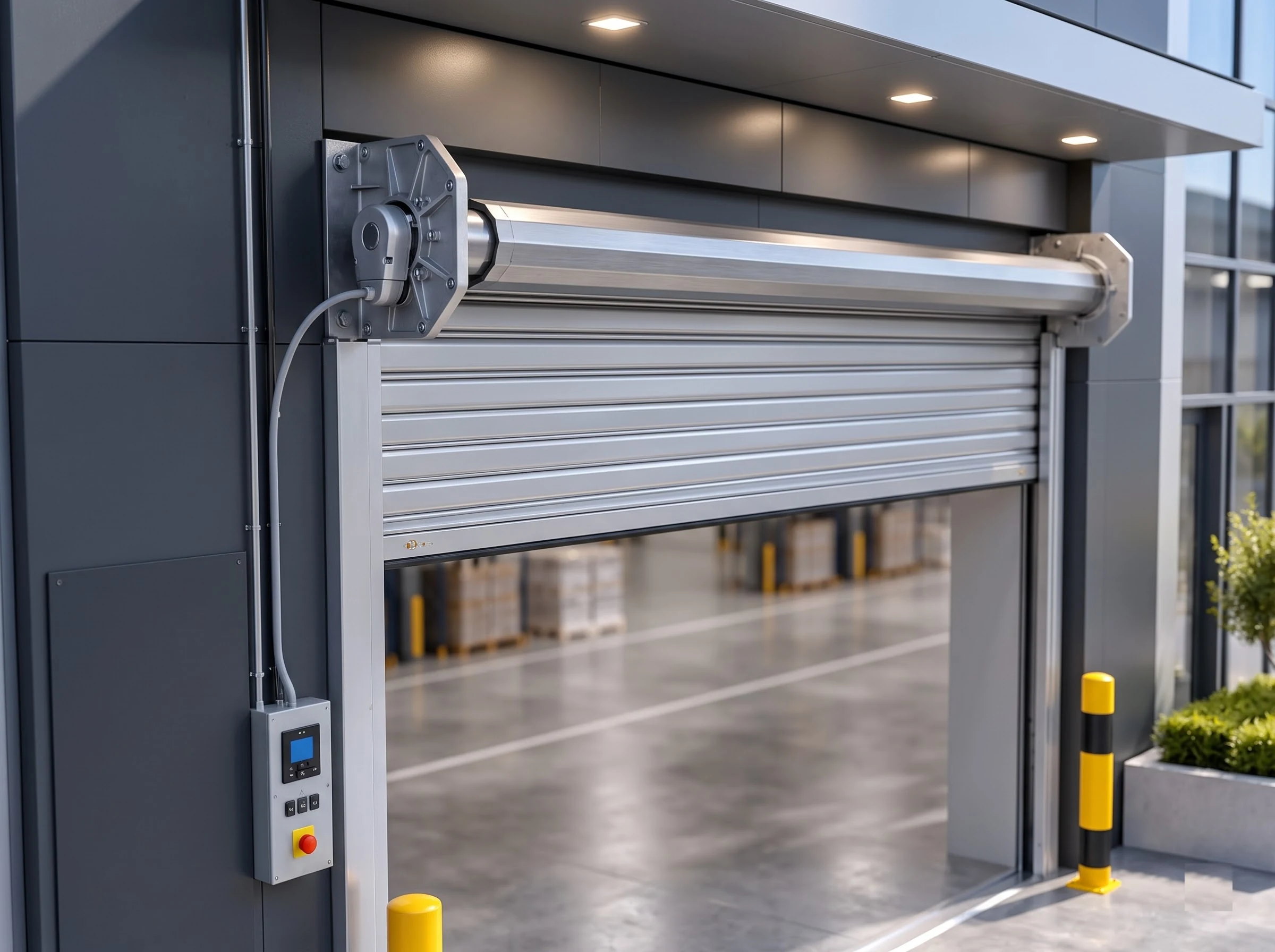

Barrel & shaft5 fields
- Barrel type
- Conventional or motorised barrel according to configuration
- Shaft diameter
- Configuration dependent
- Shaft material
- Steel
- Bracket
- Aluminium or steel according to the system
- Hood / headbox
- Aluminium hood or headbox; size configuration dependent
Bottom4 fields
- Bottom profile
- Aluminium bottom rail
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields
- Operation
- Manual, gear operated where applicable, or motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Standard configuration; wind-resistant configuration available
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Configuration dependent; insulated configurations available
- Acoustic performance
- Configuration dependent
- Corrosion resistance
- High relative corrosion resistance
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Mill finish, anodised or powder coated
- Colour
- Natural, anodised, powder coated or custom RAL
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | Aluminium Rolling Shutter |
|---|---|
| Material | Aluminium |
| Material grade | Aluminium alloy selected according to the profile and system |
| Coating | Mill finish, anodised or powder coated |
| Surface treatment | Anodised or powder coated |
| Construction | Roll-formed aluminium, or extruded architectural aluminium on the premium configuration |
|---|---|
| Profile | Profile dependent; single wall, double wall or insulated depending on configuration |
| Profile height | Profile dependent |
| Slat thicknessAn extruded architectural section is specified by geometry rather than by sheet thickness. | Approximately 1.0 mm class standard / 1.2–1.5 mm class heavy duty / extruded configuration dependent |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected profile and material |
| Curtain weight | Calculated from the selected profile, material and opening dimensions |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | Aluminium or steel depending on the system |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Conventional or motorised barrel according to configuration |
|---|---|
| Shaft diameter | Configuration dependent |
| Shaft material | Steel |
| Bracket | Aluminium or steel according to the system |
| Hood / headbox | Aluminium hood or headbox; size configuration dependent |
| Bottom profile | Aluminium bottom rail |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Manual, gear operated where applicable, or motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Standard configuration; wind-resistant configuration available |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Configuration dependent; insulated configurations available |
| Acoustic performance | Configuration dependent |
| Corrosion resistance | High relative corrosion resistance |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Mill finish, anodised or powder coated |
|---|---|
| Colour | Natural, anodised, powder coated or custom RAL |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- What thickness is the aluminium curtain?
- Approximately the 1.0 mm class on the standard roll-formed profile and approximately 1.2 to 1.5 mm on heavy duty. The premium extruded profile is configuration dependent, because an extruded section is defined by its geometry rather than by a sheet thickness.
- Is aluminium as secure as steel?
- For the same opening, a steel curtain gives more physical resistance. Aluminium is specified where corrosion resistance, curtain weight and finish matter more, which on a showroom or office entrance is often the correct trade.
- Can we have a specific colour?
- Yes. Anodised, powder coated or a specified RAL colour. Give us the RAL reference with the enquiry and it is quoted with the shutter.
- What sizes is the Aluminium Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
