Rolling Shutters/Transparent Shutters
Transparent Polycarbonate Rolling Shutter

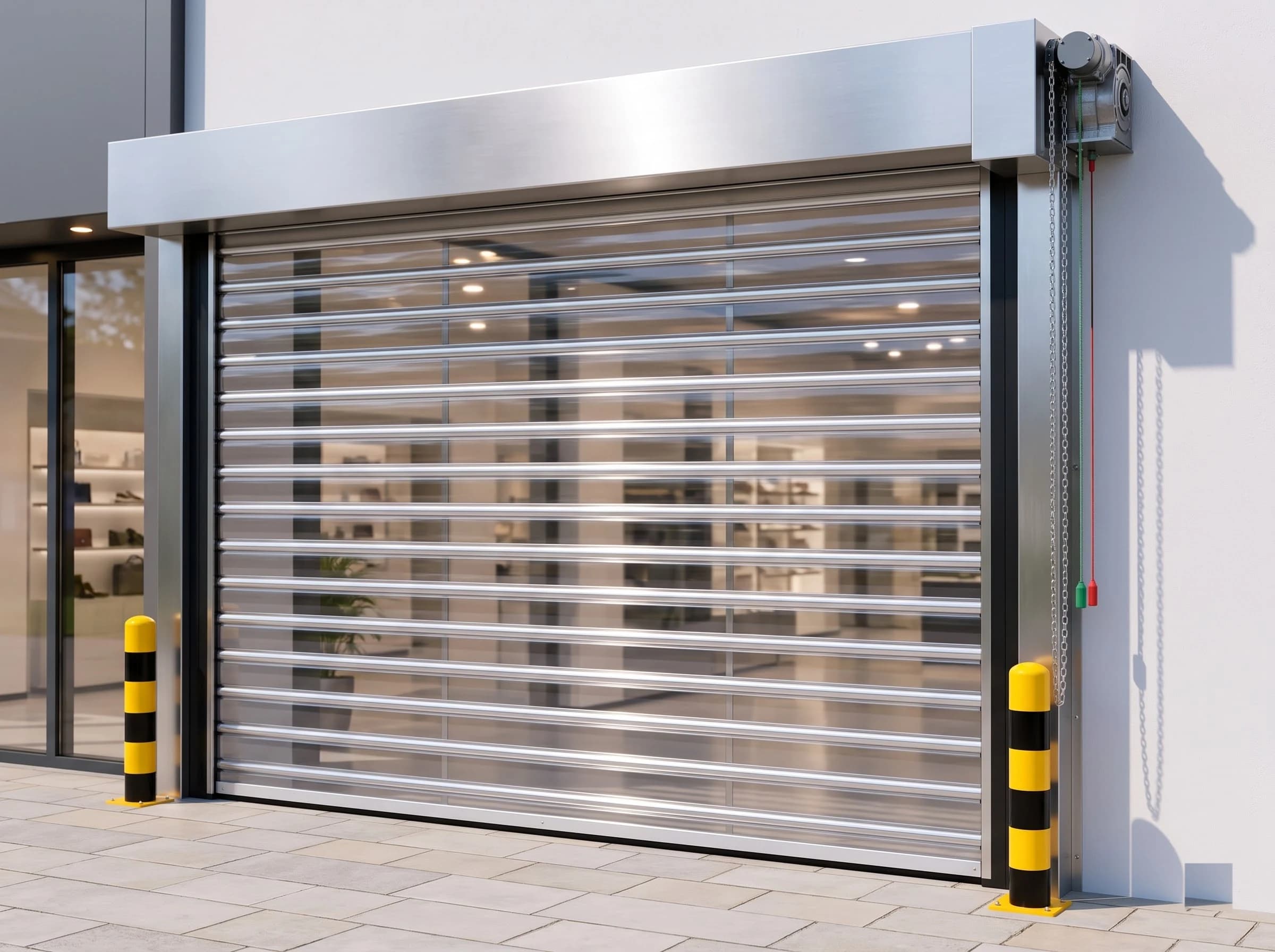

Closed, secured, and still a shop window.
Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Material
- UV-resistant polycarbonate
- Standard thickness
- Approx. 2–3 mm class
- Heavier / custom
- Approx. 3–5 mm class
- Sizes
- Profile and drive dependent
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About Transparent Polycarbonate Rolling Shutter

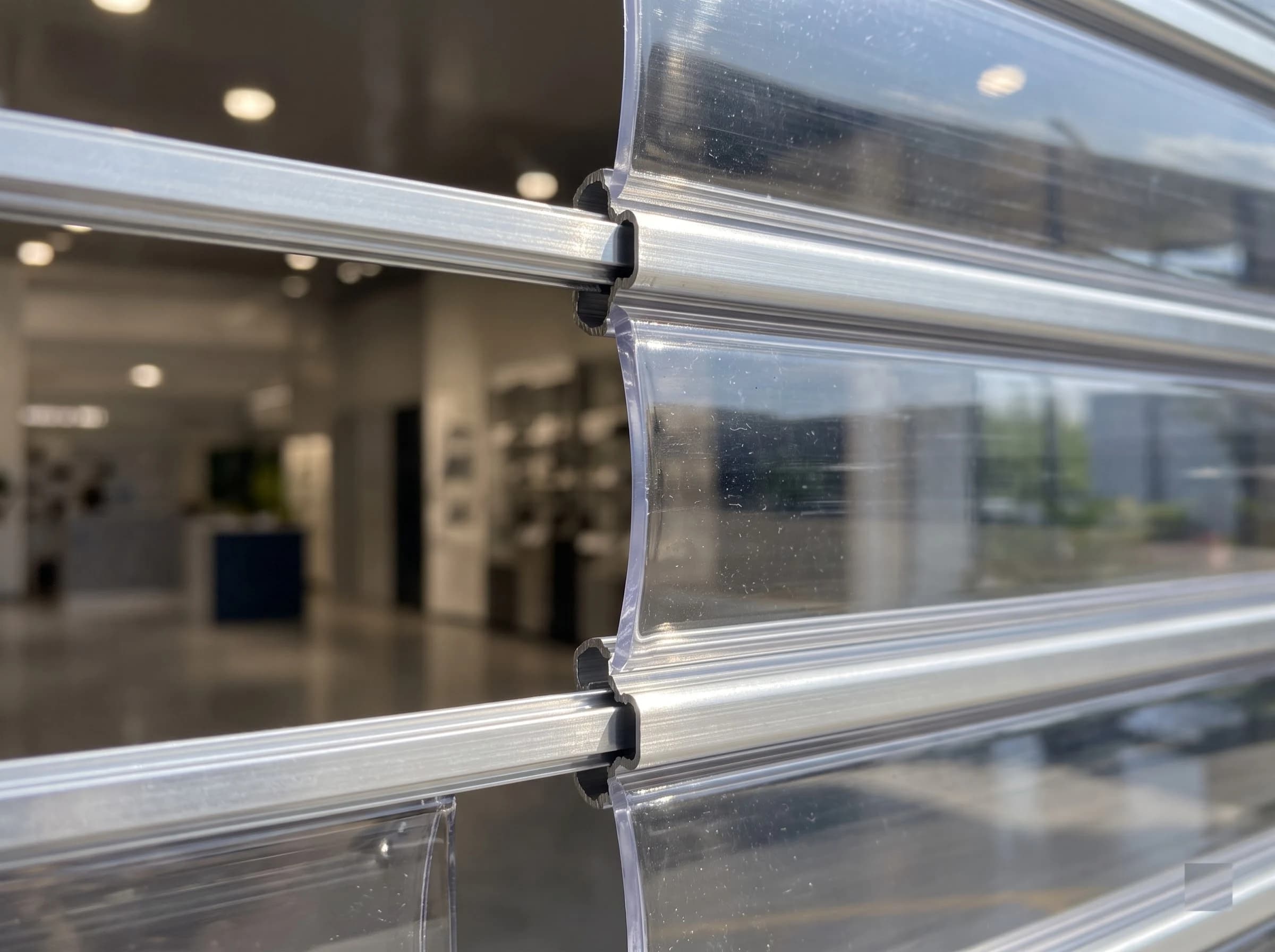

A polycarbonate shutter closes the opening with transparent interlocking sections instead of metal slats. The storefront stays a storefront: the display is visible, lit and selling, while the opening is closed.

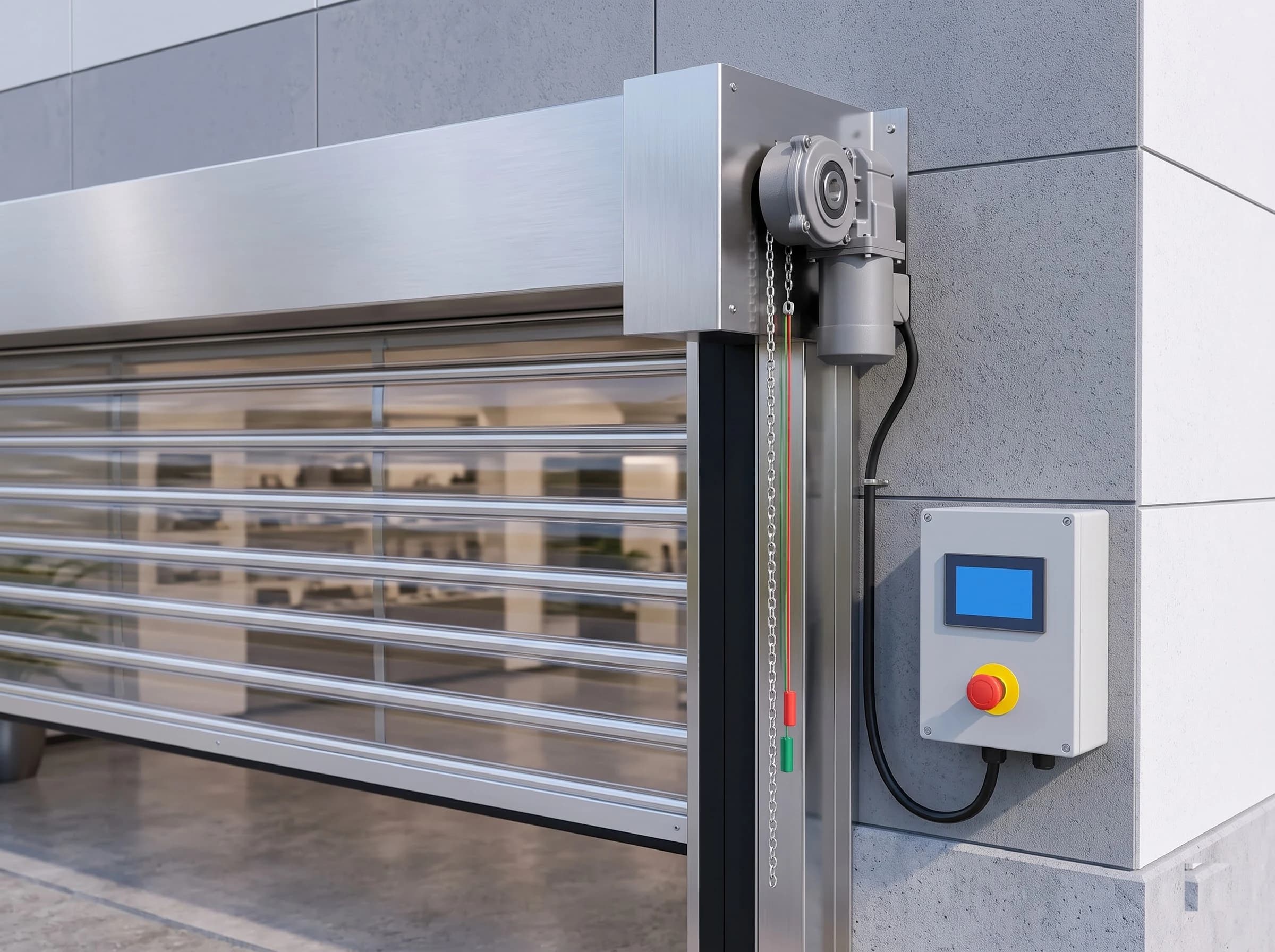

Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Clear
Clear UV-resistant polycarbonate sections, for maximum visibility of the display behind the opening.
Tinted
Tinted polycarbonate sections, where glare or a degree of screening is wanted alongside visibility.
Premium security
A heavier configuration for premium retail. Section thickness, connector and hardware specification are confirmed per project.
10Gallery
Transparent Polycarbonate Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- Transparent Polycarbonate Rolling Shutter
- Material
- UV-resistant polycarbonate
- Material grade
- UV-stabilised polycarbonate; grade configuration dependent
- Coating
- Not applicable; UV stabilisation is within the material
- Surface treatment
- UV stabilised
Curtain10 fields
- Construction
- Polycarbonate interlocking sections with aluminium connectors
- Profile
- Configuration dependent
- Profile height
- Configuration dependent
- Section thickness
- Approximately 2–3 mm standard class / 3–5 mm heavier or custom class
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected section and connectors
- Curtain weight
- Calculated from the selected section, connectors and opening dimensions
- Connector material
- Aluminium connectors; stainless steel depending on system
- Connecting rod
- Stainless steel or corrosion-resistant hardware where applicable
- Transparency
- High; configuration dependent
Opening4 fields
- Maximum width
- Depends on the selected profile and drive system
- Maximum height
- Depends on the selected profile and drive system
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements
Guide7 fields
- Guide material
- Aluminium, steel or stainless steel depending on configuration
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent
Barrel & shaft5 fields
- Barrel type
- Motorised barrel; configuration dependent
- Shaft diameter
- Configuration dependent
- Shaft material
- Steel
- Bracket
- Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
- Hood / headbox
- Aluminium hood or headbox; size configuration dependent
Bottom4 fields
- Bottom profile
- Aluminium bottom profile
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- EPDM or rubber seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields
- Operation
- Primarily motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual emergency operation available depending on the drive
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Configuration dependent
- Fire rating
- Not rated; no fire classification is assigned without testing
- Thermal performance
- Not rated unless tested
- Acoustic performance
- Not rated unless tested
- Corrosion resistance
- Not applicable to the curtain; hardware specified to the environment
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Clear or tinted polycarbonate; aluminium components finished to requirement
- Colour
- Clear or tinted
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | Transparent Polycarbonate Rolling Shutter |
|---|---|
| Material | UV-resistant polycarbonate |
| Material grade | UV-stabilised polycarbonate; grade configuration dependent |
| Coating | Not applicable; UV stabilisation is within the material |
| Surface treatment | UV stabilised |
| Construction | Polycarbonate interlocking sections with aluminium connectors |
|---|---|
| Profile | Configuration dependent |
| Profile height | Configuration dependent |
| Section thickness | Approximately 2–3 mm standard class / 3–5 mm heavier or custom class |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected section and connectors |
| Curtain weight | Calculated from the selected section, connectors and opening dimensions |
| Connector material | Aluminium connectors; stainless steel depending on system |
| Connecting rod | Stainless steel or corrosion-resistant hardware where applicable |
| Transparency | High; configuration dependent |
| Maximum width | Depends on the selected profile and drive system |
|---|---|
| Maximum height | Depends on the selected profile and drive system |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | Aluminium, steel or stainless steel depending on configuration |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Motorised barrel; configuration dependent |
|---|---|
| Shaft diameter | Configuration dependent |
| Shaft material | Steel |
| Bracket | Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward |
| Hood / headbox | Aluminium hood or headbox; size configuration dependent |
| Bottom profile | Aluminium bottom profile |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | EPDM or rubber seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Primarily motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual emergency operation available depending on the drive |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Configuration dependent |
|---|---|
| Fire rating | Not rated; no fire classification is assigned without testing |
| Thermal performance | Not rated unless tested |
| Acoustic performance | Not rated unless tested |
| Corrosion resistance | Not applicable to the curtain; hardware specified to the environment |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Clear or tinted polycarbonate; aluminium components finished to requirement |
|---|---|
| Colour | Clear or tinted |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- How thick are the polycarbonate sections?
- Approximately the 2 to 3 mm class as standard, with a 3 to 5 mm heavier and custom class available. These are reference ranges for the profiles available rather than universal values, and the section is confirmed with the configuration.
- Is a polycarbonate shutter bulletproof or unbreakable?
- No, and we will not describe it that way. It is a transparent security shutter for storefronts. We publish no impact, ballistic or fire performance for it, because no such test data has been supplied to us.
- Will it yellow over time?
- The material is UV stabilised, which is what the UV-resistant specification is for. We do not publish a discolouration figure or a service life, because that depends on the installation and the exposure.
- How large can the opening be?
- Maximum size depends on the selected profile and drive system rather than on a fixed catalogue limit. Give us the opening and we will confirm what is achievable.
- What sizes is the Transparent Polycarbonate Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
