Stainless Steel Rolling Shutter
For openings where the cleaning regime, or the sea, decides the specification.

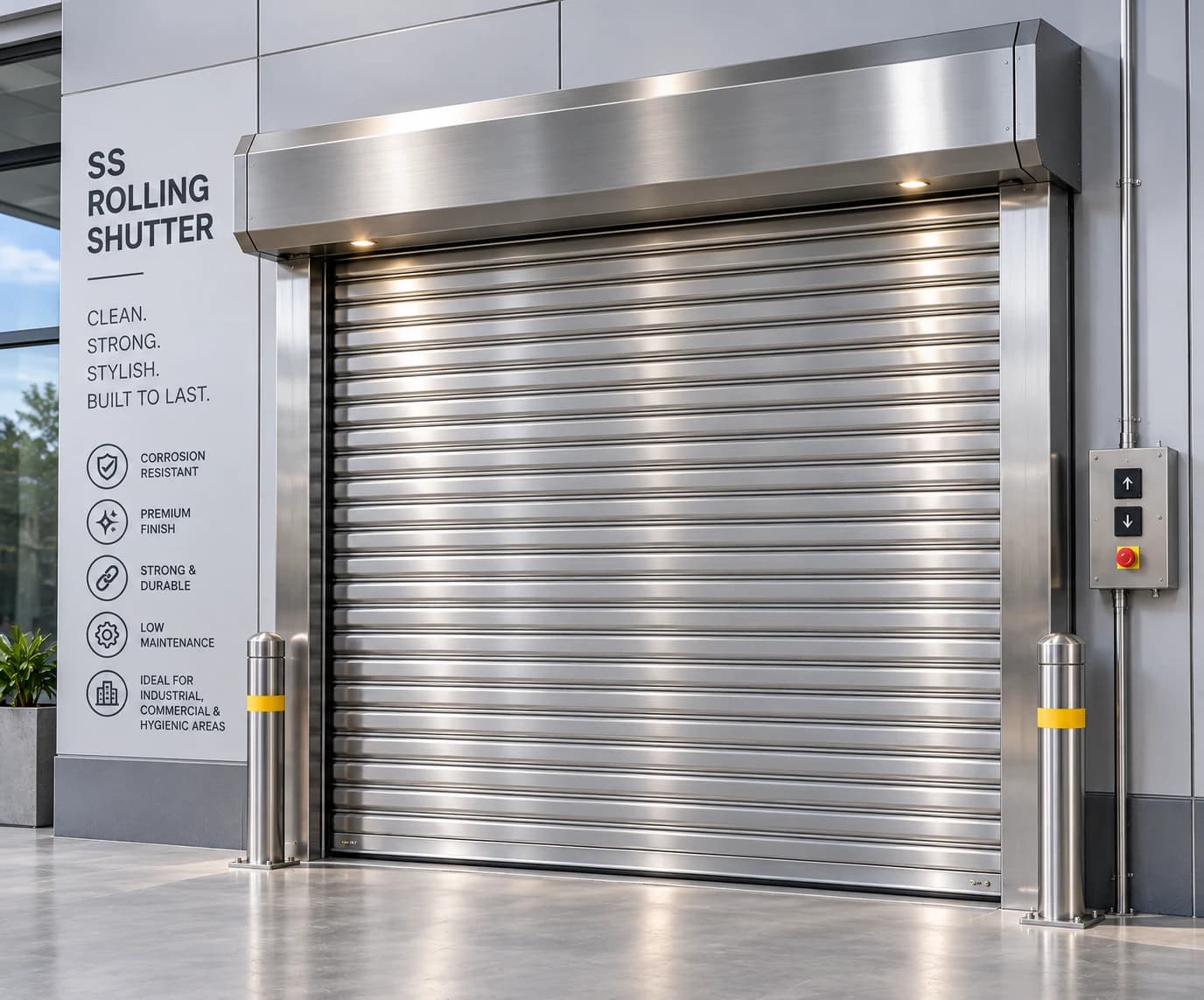

Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Grades
- SS304 and SS316
- SS304 standard
- Approx. 0.9–1.2 mm class
- SS316
- Configuration dependent
- Finish
- Brushed, satin or polished
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About Stainless Steel Rolling Shutter
Stainless steel is specified when something in the environment will destroy a coated curtain: a washdown regime with aggressive cleaning agents, a process atmosphere, or coastal salt. It is the most expensive metal option in the range and it is chosen for a reason, not for appearance alone.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
SS304 standard
Curved interlocking SS304 curtain in approximately the 0.9 to 1.2 mm class depending on the profile selected, for food, pharmaceutical, healthcare and premium commercial openings.
SS304 heavy duty
Heavy-duty interlocking SS304 curtain in approximately the 1.2 mm class or as the profile requires, for wider openings and heavier use.
SS316 special / coastal
SS316 curtain for coastal and high-corrosion installations. Thickness is configuration dependent and is confirmed with the profile.
10Gallery
Stainless Steel Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- Stainless Steel Rolling Shutter
- Material
- Stainless steel
- Material grade
- SS304 standard; SS316 for coastal and high-corrosion environments
- Coating
- None; corrosion resistance is inherent to the alloy
- Surface treatment
- Brushed, satin or polished
Curtain7 fields
- Construction
- Curved interlocking, or heavy-duty interlocking where applicable
- Profile
- Configuration dependent
- Profile height
- Configuration dependent
- Slat thickness
- SS304 approximately 0.9–1.2 mm class / SS304 heavy approximately 1.2 mm class / SS316 configuration dependent
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected profile and material
- Curtain weight
- Calculated from the selected profile, material and opening dimensions
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements
Guide7 fields
- Guide material
- Stainless steel preferred for washdown and high-corrosion environments; MS or GI where suitable
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- Configuration dependent
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent
Barrel & shaft5 fields
- Barrel type
- Conventional or motorised barrel according to configuration
- Shaft diameter
- Configuration dependent
- Shaft material
- Steel
- Bracket
- Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
- Hood / headbox
- Stainless hood or headbox; size configuration dependent
Bottom4 fields
- Bottom profile
- Stainless steel bottom rail
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields
- Operation
- Manual, gear operated or motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain load and duty
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Standard configuration; wind-resistant configuration available
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Not rated unless supplied as an insulated configuration
- Acoustic performance
- Not rated unless specified
- Corrosion resistance
- High; SS316 specified for coastal and chemically aggressive environments
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Brushed, satin or polished
- Colour
- Natural stainless finish; powder coating only where suitable
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | Stainless Steel Rolling Shutter |
|---|---|
| Material | Stainless steel |
| Material grade | SS304 standard; SS316 for coastal and high-corrosion environments |
| Coating | None; corrosion resistance is inherent to the alloy |
| Surface treatment | Brushed, satin or polished |
| Construction | Curved interlocking, or heavy-duty interlocking where applicable |
|---|---|
| Profile | Configuration dependent |
| Profile height | Configuration dependent |
| Slat thickness | SS304 approximately 0.9–1.2 mm class / SS304 heavy approximately 1.2 mm class / SS316 configuration dependent |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected profile and material |
| Curtain weight | Calculated from the selected profile, material and opening dimensions |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | Stainless steel preferred for washdown and high-corrosion environments; MS or GI where suitable |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | Configuration dependent |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Conventional or motorised barrel according to configuration |
|---|---|
| Shaft diameter | Configuration dependent |
| Shaft material | Steel |
| Bracket | Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward |
| Hood / headbox | Stainless hood or headbox; size configuration dependent |
| Bottom profile | Stainless steel bottom rail |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Manual, gear operated or motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain load and duty |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Standard configuration; wind-resistant configuration available |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Not rated unless supplied as an insulated configuration |
| Acoustic performance | Not rated unless specified |
| Corrosion resistance | High; SS316 specified for coastal and chemically aggressive environments |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Brushed, satin or polished |
|---|---|
| Colour | Natural stainless finish; powder coating only where suitable |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- What thickness is a stainless curtain?
- It depends on the profile. SS304 standard is approximately the 0.9 to 1.2 mm class and the heavy-duty profile is approximately 1.2 mm or as the section requires; SS316 is configuration dependent. We quote thickness against the profile rather than publishing one figure for every stainless shutter.
- When is SS316 actually necessary?
- Coastal installations and chemically aggressive process areas. If the environment is a normal food or pharmaceutical production space, SS304 is usually the correct and more economical specification.
- Should the guides be stainless too?
- On a high-corrosion installation, yes. A stainless curtain running in mild steel guides moves the corrosion problem to the guides rather than solving it.
- What sizes is the Stainless Steel Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
