GI Solid Rolling Shutter
The same steel shutter, galvanized before it is formed.
Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Slat thickness
- 0.8–1.0 mm class, 1.2 mm heavy
- Profile
- Approx. 75–80 mm class
- Finish
- Galvanized, powder coat optional
- Sizes
- Custom
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About GI Solid Rolling Shutter
A GI shutter is a mild steel shutter with the corrosion problem addressed at the material rather than at the paint. The zinc coating is on the steel before the slat is formed, so the protection is not something that has to be maintained on site to keep working.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Standard duty — 0.8–1.0 mm class
Interlocking galvanized curtain in the 0.8 to 1.0 mm class, manual, gear or motorised, for shops, commercial buildings, godowns and outdoor openings.
Heavy duty — 1.2 mm
Heavy interlocking GI curtain at 1.2 mm with a reinforced guide, gear operated or motorised, for warehouses, godowns and commercial or industrial buildings.
10Gallery

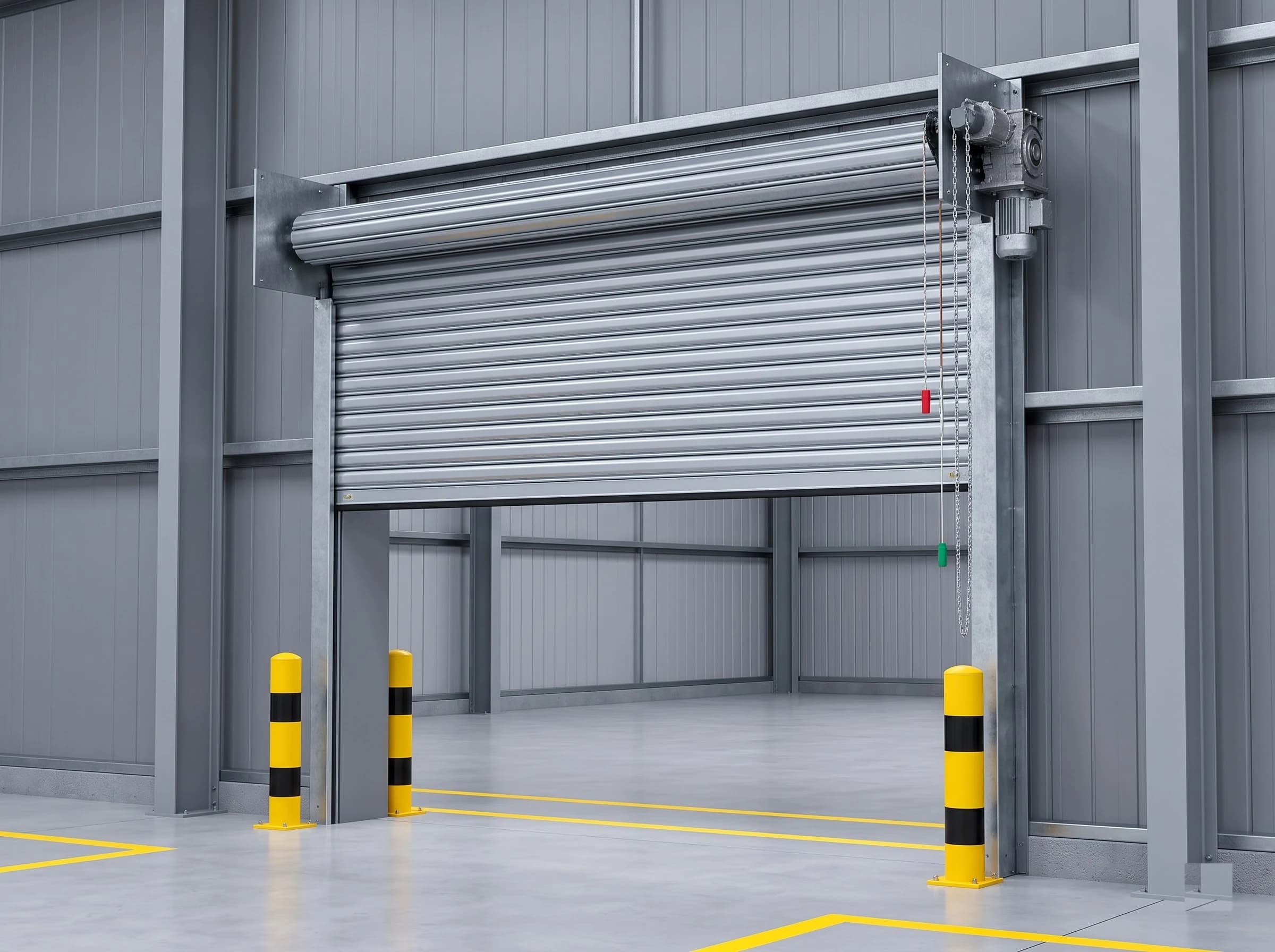

GI Solid Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- GI Solid Rolling Shutter
- Material
- Galvanized steel
- Material grade
- Galvanized steel selected according to the required coating specification
- Coating
- Zinc galvanized protective coating
- Surface treatment
- Galvanized finish; powder coating optional

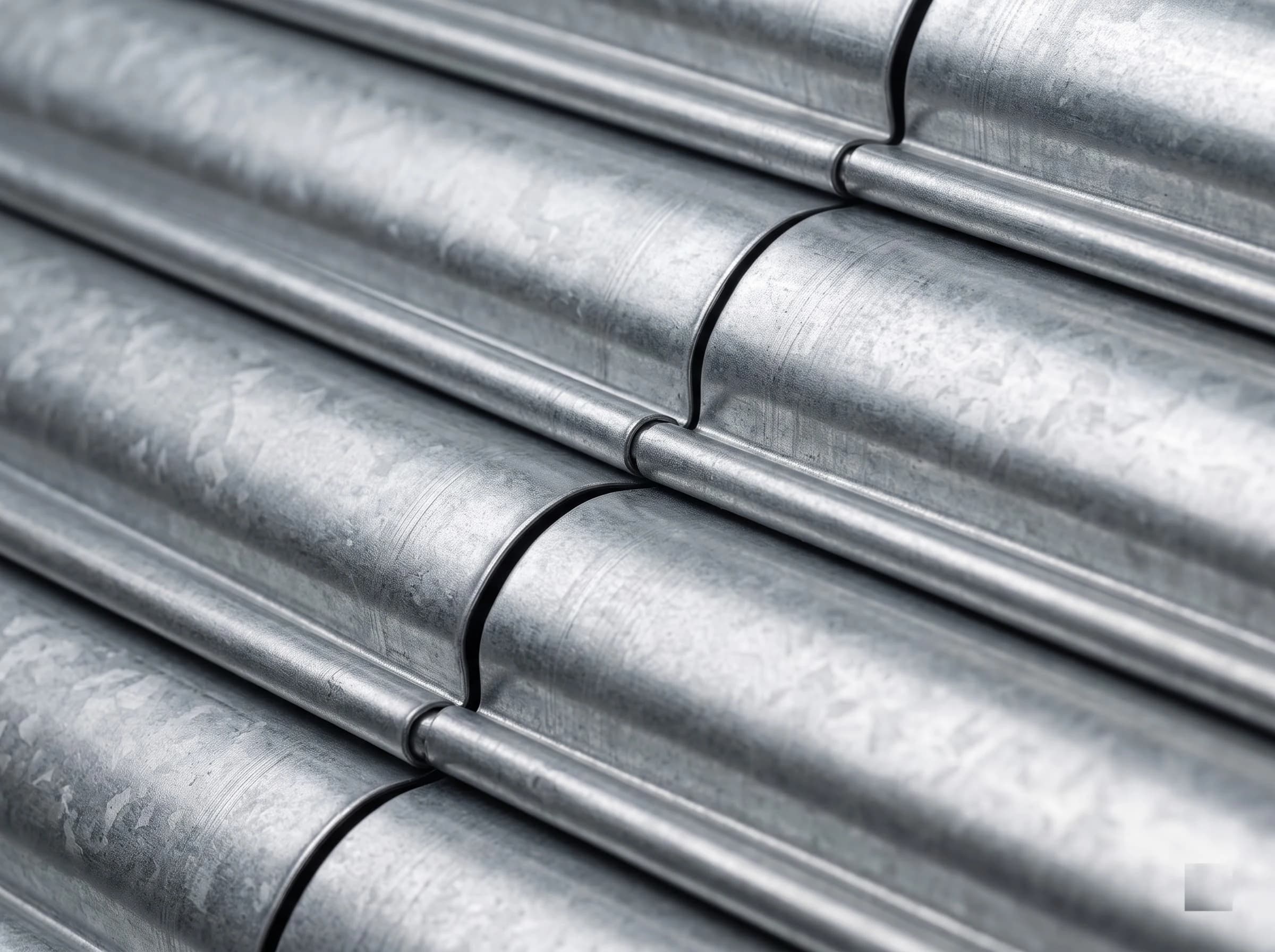

Curtain7 fields
- Construction
- Single-skin interlocking galvanized steel slats
- Profile
- Curved / interlocking, approximately 75–80 mm class
- Profile height
- Approximately 75–80 mm class
- Slat thickness
- 0.8–1.0 mm class standard / 1.2 mm heavy duty
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected profile and material
- Curtain weight
- Calculated from the selected profile, material and opening dimensions
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements

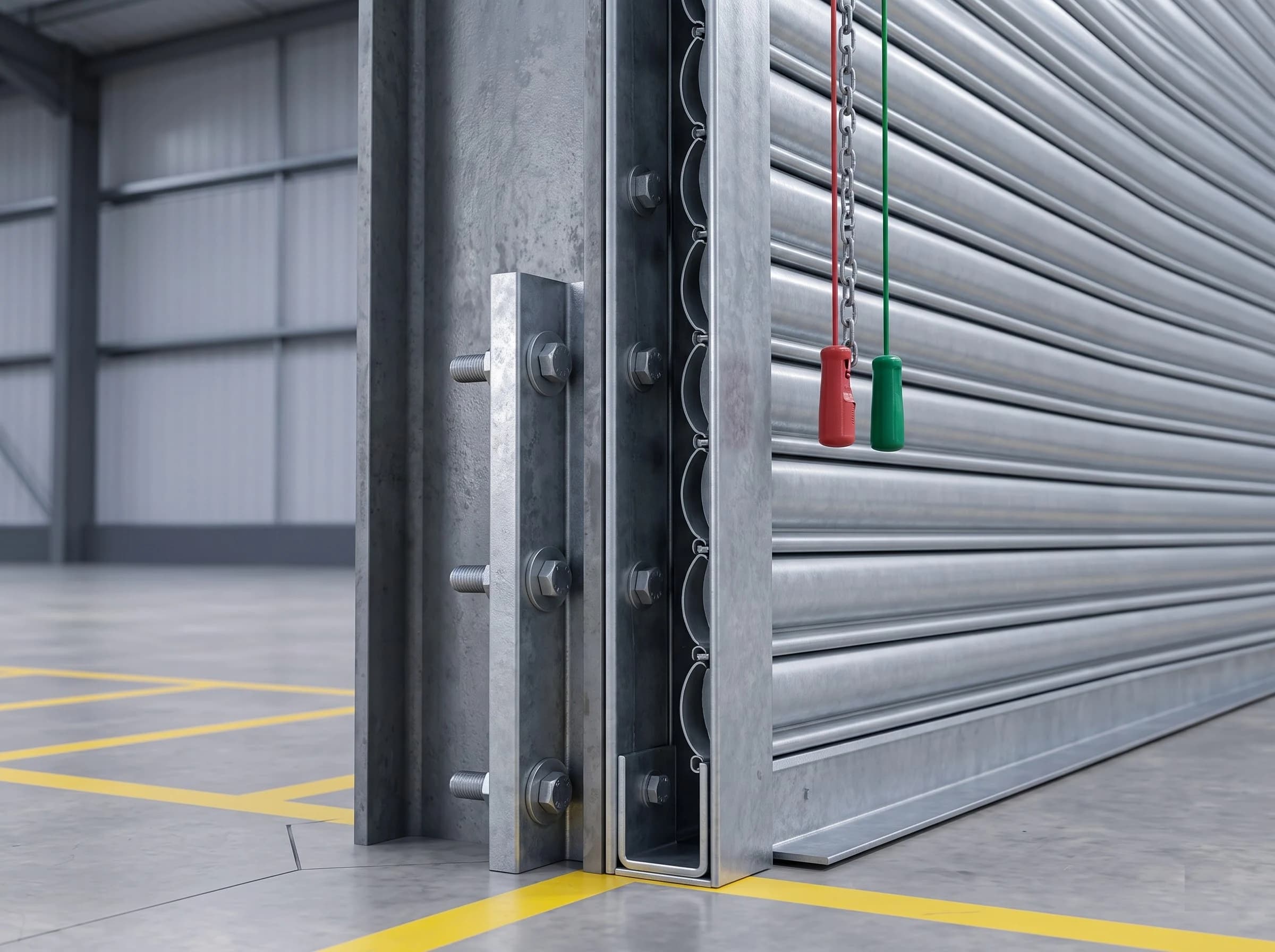

Guide7 fields
- Guide material
- GI / MS conventional guide construction; reinforced guide on the heavy duty configuration
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent

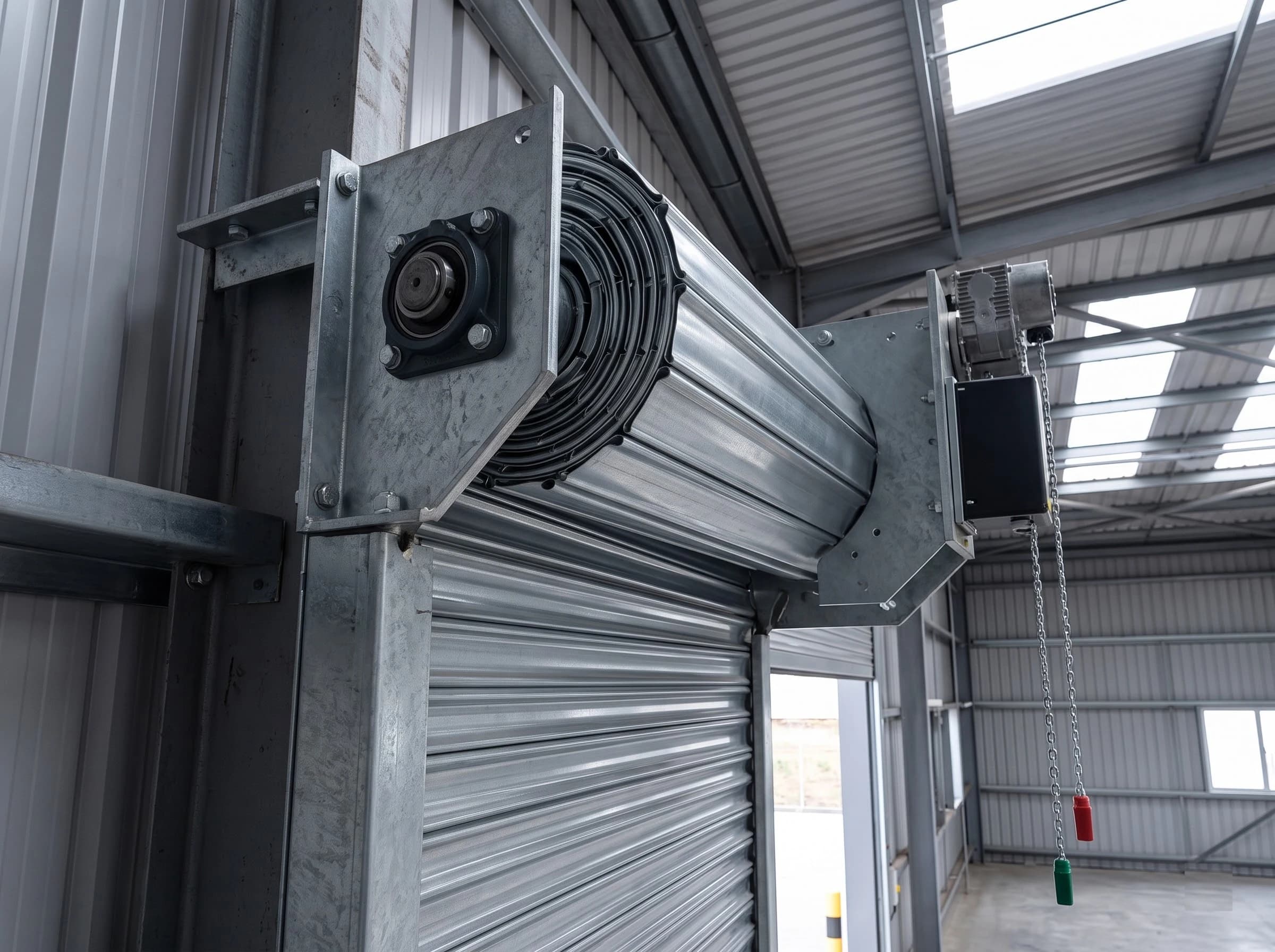

Barrel & shaft5 fields
- Barrel type
- Spring-balanced barrel for conventional manual systems
- Shaft diameter
- 32 / 40 / 50 mm class, selected according to shutter width and curtain load
- Shaft material
- Steel
- Bracket
- Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
- Hood / headbox
- GI or MS hood; size configuration dependent
Bottom4 fields
- Bottom profile
- GI or MS bottom rail
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields
- Operation
- Manual, gear operated or motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Standard configuration; wind-resistant configuration available
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Not rated
- Acoustic performance
- Not specifically rated; configuration dependent
- Corrosion resistance
- Good; galvanized surface protection
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Galvanized, or powder coated
- Colour
- Natural galvanized finish, or custom RAL powder coating
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | GI Solid Rolling Shutter |
|---|---|
| Material | Galvanized steel |
| Material grade | Galvanized steel selected according to the required coating specification |
| Coating | Zinc galvanized protective coating |
| Surface treatment | Galvanized finish; powder coating optional |
| Construction | Single-skin interlocking galvanized steel slats |
|---|---|
| Profile | Curved / interlocking, approximately 75–80 mm class |
| Profile height | Approximately 75–80 mm class |
| Slat thickness | 0.8–1.0 mm class standard / 1.2 mm heavy duty |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected profile and material |
| Curtain weight | Calculated from the selected profile, material and opening dimensions |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | GI / MS conventional guide construction; reinforced guide on the heavy duty configuration |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Spring-balanced barrel for conventional manual systems |
|---|---|
| Shaft diameter | 32 / 40 / 50 mm class, selected according to shutter width and curtain load |
| Shaft material | Steel |
| Bracket | Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward |
| Hood / headbox | GI or MS hood; size configuration dependent |
| Bottom profile | GI or MS bottom rail |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Manual, gear operated or motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Standard configuration; wind-resistant configuration available |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Not rated |
| Acoustic performance | Not specifically rated; configuration dependent |
| Corrosion resistance | Good; galvanized surface protection |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Galvanized, or powder coated |
|---|---|
| Colour | Natural galvanized finish, or custom RAL powder coating |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- How much longer does a GI shutter last than a painted MS one?
- We do not publish a figure, because it depends on the environment, the coating specification and how the shutter is maintained. What is fair to say is that the corrosion protection is in the steel rather than in a surface finish, which is why it is the better choice for an exposed opening.
- Can a GI shutter be powder coated?
- Yes. The galvanized base does the corrosion work and the powder coat gives the colour, which is the usual specification where the shutter is on a visible elevation.
- Is GI suitable for a coastal site?
- It is better than mild steel, but for a genuinely coastal or chemically aggressive installation we would point you at Galvalume or stainless steel rather than claim GI will be sufficient.
- What sizes is the GI Solid Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
