Rolling Shutters/Solid Steel Rolling Shutters
MS Solid Rolling Shutter
The standard steel shutter, in three curtain weights.
Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Slat thickness
- 0.8 / 1.0 / 1.2 mm
- Profile
- Approx. 75–80 mm class
- Operation
- Push-up, gear or motorised
- Sizes
- Custom
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About MS Solid Rolling Shutter
A mild steel rolling shutter is the default way to close a commercial opening in India, and for good reason: an interlocking single-skin steel curtain rolling onto a barrel is simple, repairable and cheap to own. The three duties below are the same product built in three curtain weights, and the weight is what you are actually choosing.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Light duty — 0.8 mm
0.8 mm curtain in the 75–80 mm profile class, for small shops, garages and small commercial openings operated by hand.
Standard duty — 1.0 mm
1.0 mm curtain, the general commercial specification for shops, commercial buildings, godowns and small warehouses.
Heavy duty — 1.2 mm
1.2 mm curtain in a heavier construction, gear operated or motorised, for larger commercial openings, godowns and warehouses.

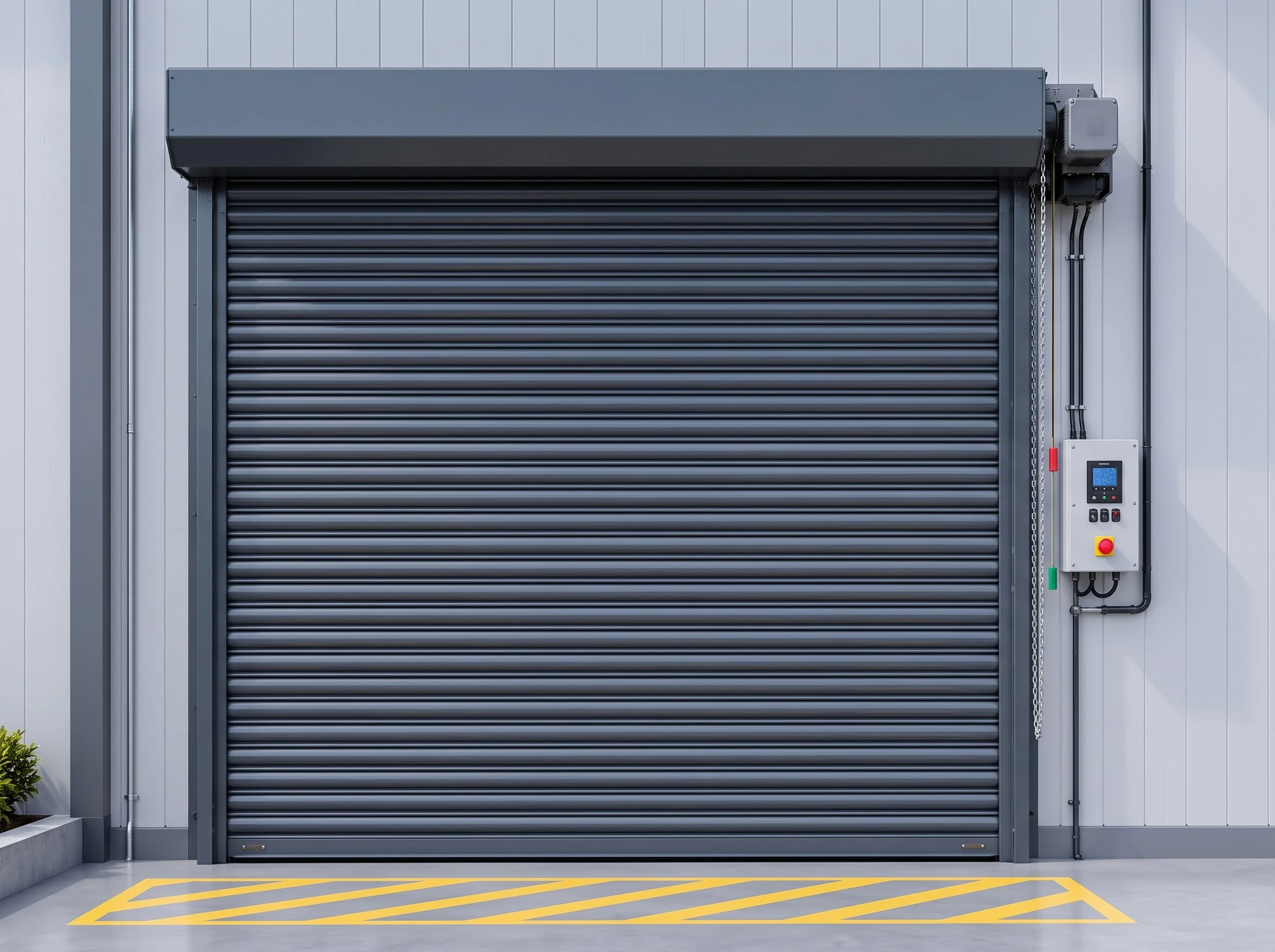

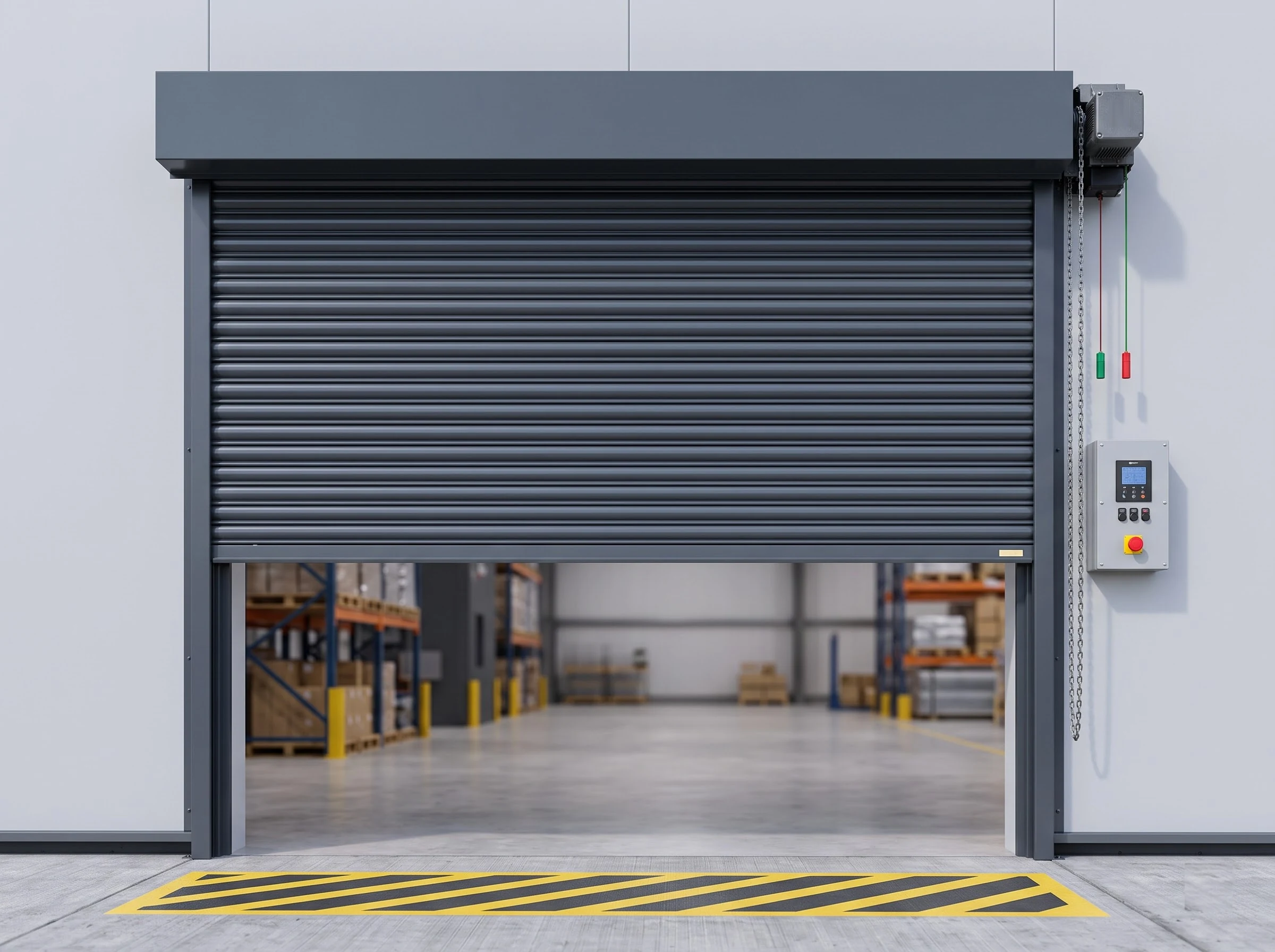

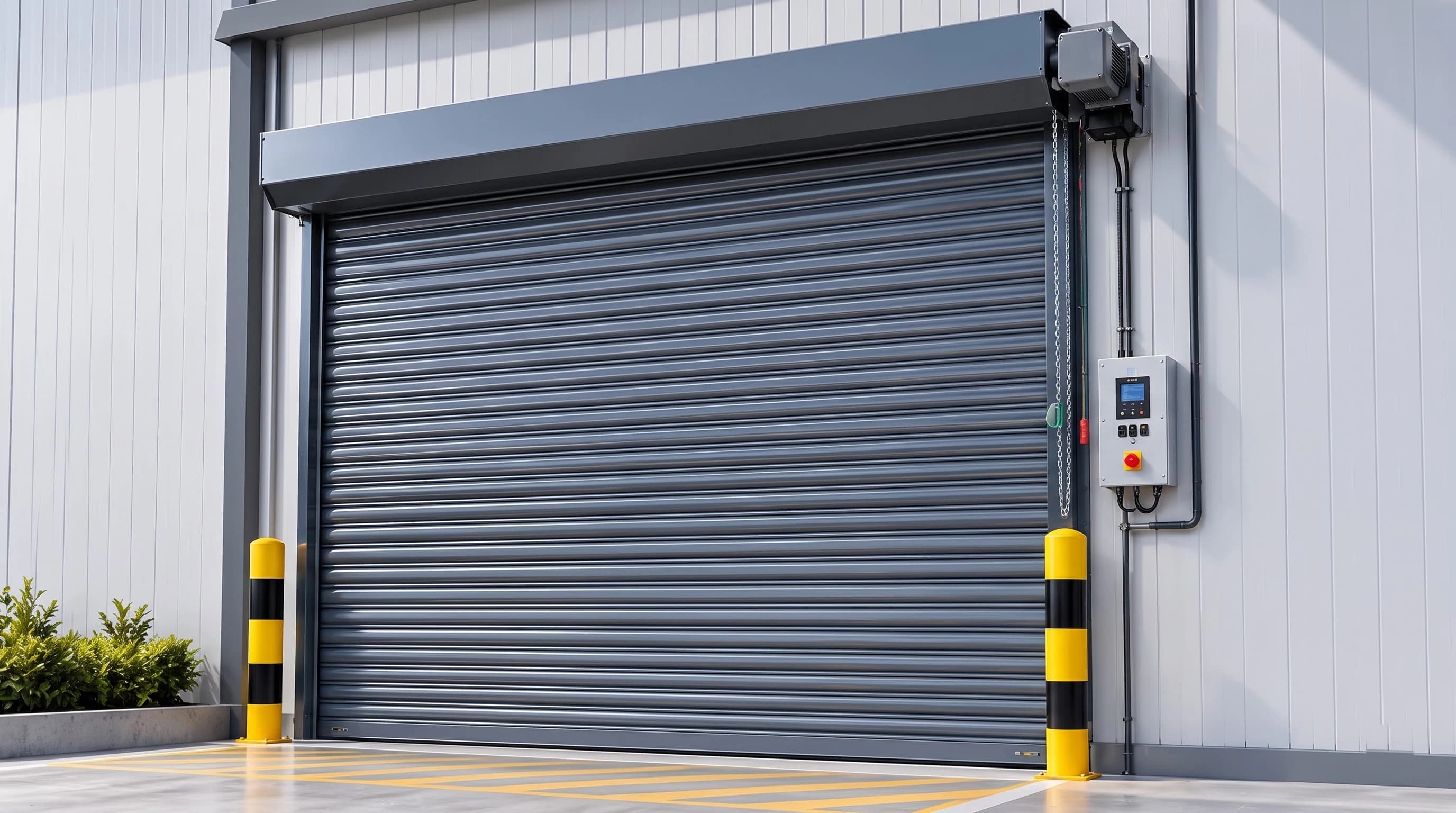

10Gallery
MS Solid Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- MS Solid Rolling Shutter
- Material
- Mild steel / CR steel
- Material grade
- Commercial mild steel or cold-rolled steel; grade selected according to manufacturing requirement
- Coating
- Primer and paint
- Surface treatment
- Powder coating optional

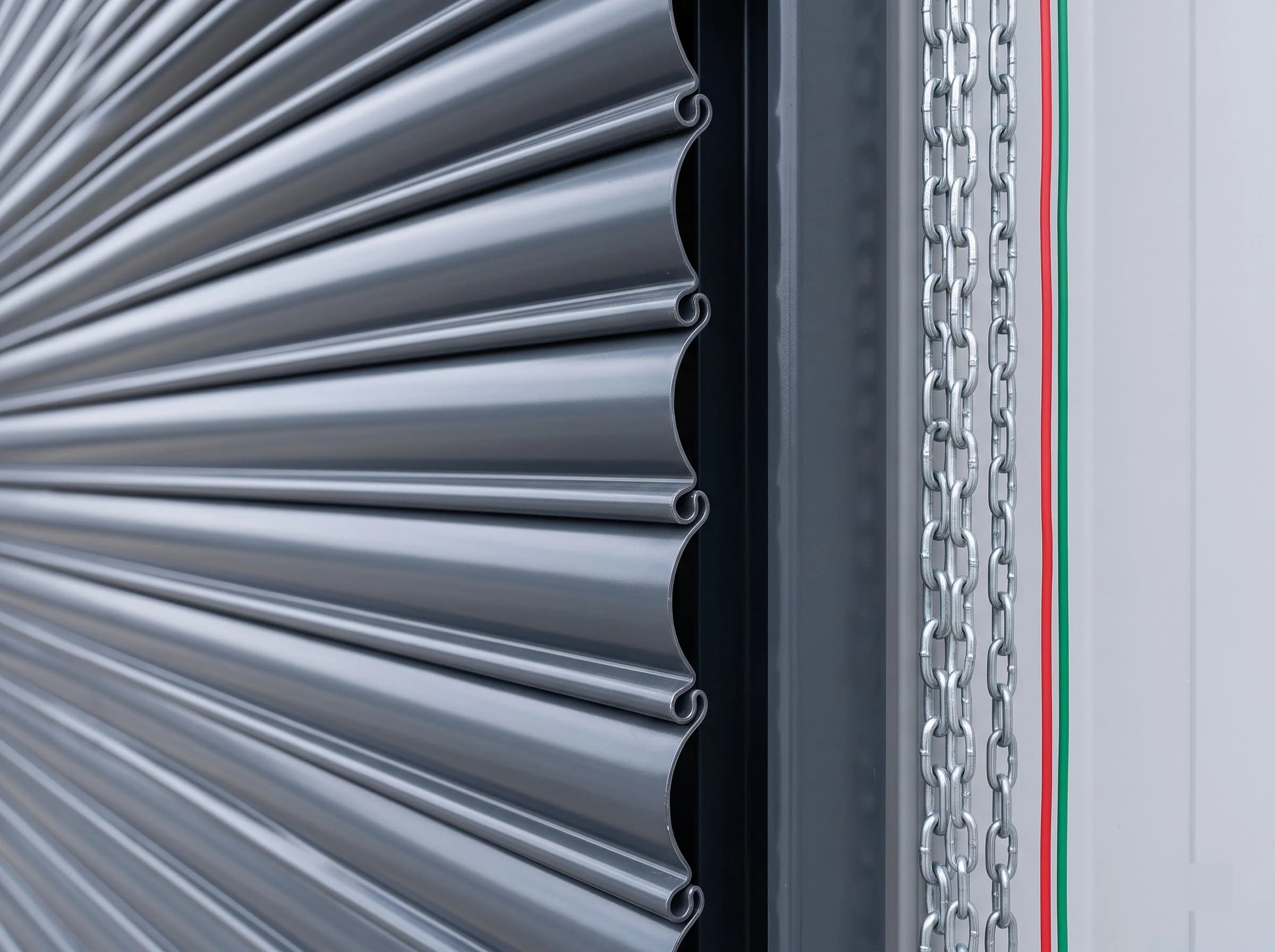

Curtain7 fields
- Construction
- Single-skin interlocking metal slats
- Profile
- Curved / interlocking, approximately 75–80 mm class
- Profile height
- Approximately 75–80 mm class
- Slat thickness
- 0.8 mm / 1.0 mm / 1.2 mm
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected profile and material
- Curtain weight
- Calculated from the selected profile, material and opening dimensions
Light duty 0.8 mm, standard duty 1.0 mm, heavy duty 1.2 mm.
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements
Guide7 fields
- Guide material
- MS / GI conventional guide construction
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent
Barrel & shaft5 fields
- Barrel type
- Spring-balanced barrel for conventional manual shutters
- Shaft diameter
- 32 / 40 / 50 mm class, selected according to shutter width and curtain load
- Shaft material
- Steel
- Bracket
- Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
- Hood / headbox
- MS or GI hood; size configuration dependent

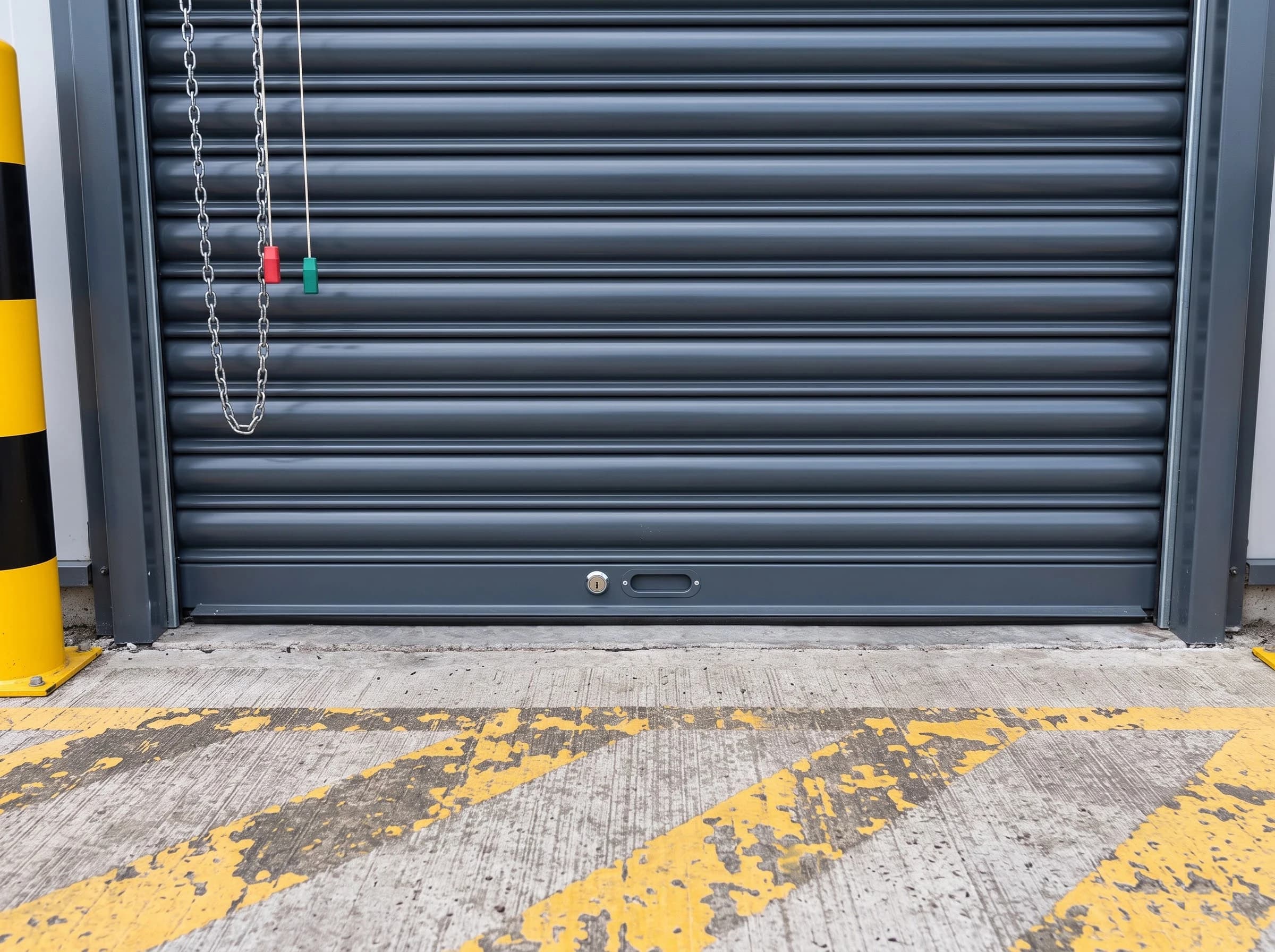

Bottom4 fields
- Bottom profile
- MS bottom rail
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration

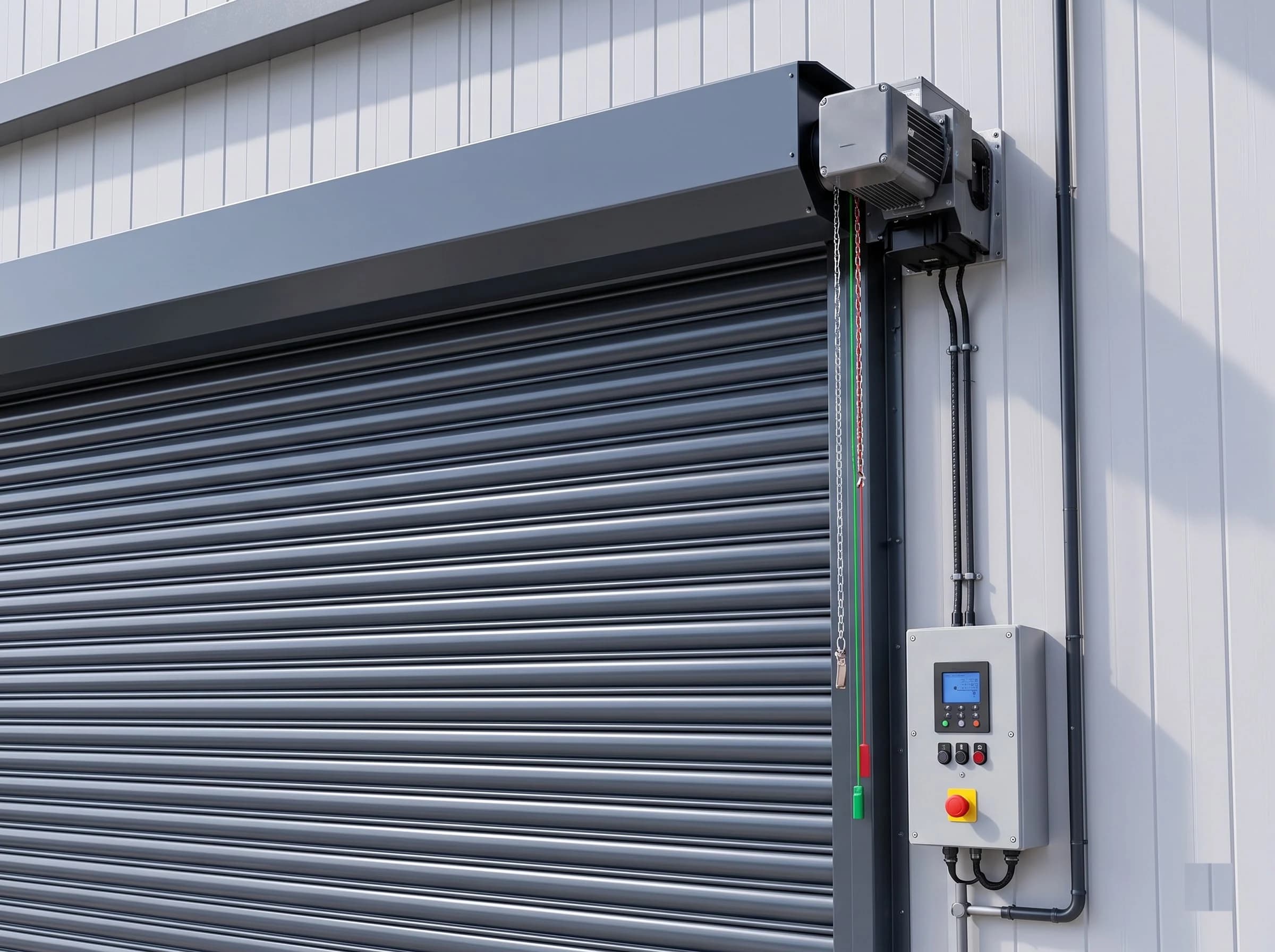

Operation & control6 fields
- Operation
- Push-up, gear operated or motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Standard configuration; wind-resistant configuration available
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Not rated
- Acoustic performance
- Not specifically rated; configuration dependent
- Corrosion resistance
- Standard; dependent on the coating and its maintenance
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Primer and paint, or powder coating
- Colour
- Standard colours; custom RAL available
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | MS Solid Rolling Shutter |
|---|---|
| Material | Mild steel / CR steel |
| Material grade | Commercial mild steel or cold-rolled steel; grade selected according to manufacturing requirement |
| Coating | Primer and paint |
| Surface treatment | Powder coating optional |
| Construction | Single-skin interlocking metal slats |
|---|---|
| Profile | Curved / interlocking, approximately 75–80 mm class |
| Profile height | Approximately 75–80 mm class |
| Slat thicknessLight duty 0.8 mm, standard duty 1.0 mm, heavy duty 1.2 mm. | 0.8 mm / 1.0 mm / 1.2 mm |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected profile and material |
| Curtain weight | Calculated from the selected profile, material and opening dimensions |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | MS / GI conventional guide construction |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Spring-balanced barrel for conventional manual shutters |
|---|---|
| Shaft diameter | 32 / 40 / 50 mm class, selected according to shutter width and curtain load |
| Shaft material | Steel |
| Bracket | Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward |
| Hood / headbox | MS or GI hood; size configuration dependent |
| Bottom profile | MS bottom rail |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Push-up, gear operated or motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Standard configuration; wind-resistant configuration available |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Not rated |
| Acoustic performance | Not specifically rated; configuration dependent |
| Corrosion resistance | Standard; dependent on the coating and its maintenance |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Primer and paint, or powder coating |
|---|---|
| Colour | Standard colours; custom RAL available |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- Which thickness should we specify?
- 0.8 mm for a small hand-operated shop opening, 1.0 mm for general commercial work, and 1.2 mm for larger openings or heavier use. Those three are the mild steel range; we do not offer a heavier mild steel curtain as a standard catalogue option.
- Why not just specify a thicker mild steel curtain?
- Because past 1.2 mm the curtain stops being the only thing that has to change. The guide, shaft, brackets and drive all have to be sized with it, which is what the industrial rolling shutter is. Making only the curtain heavier moves the failure somewhere else.
- How long will the paint finish last?
- That depends on the environment and on how the shutter is looked after, so we do not publish a figure. What we can say is that coating condition decides service life on a steel curtain, and that a galvanized or Galvalume base is the better answer where corrosion is the concern.
- What sizes is the MS Solid Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
