Galvalume Rolling Shutter
Aluminium-zinc coated steel, where galvanized is not quite enough.

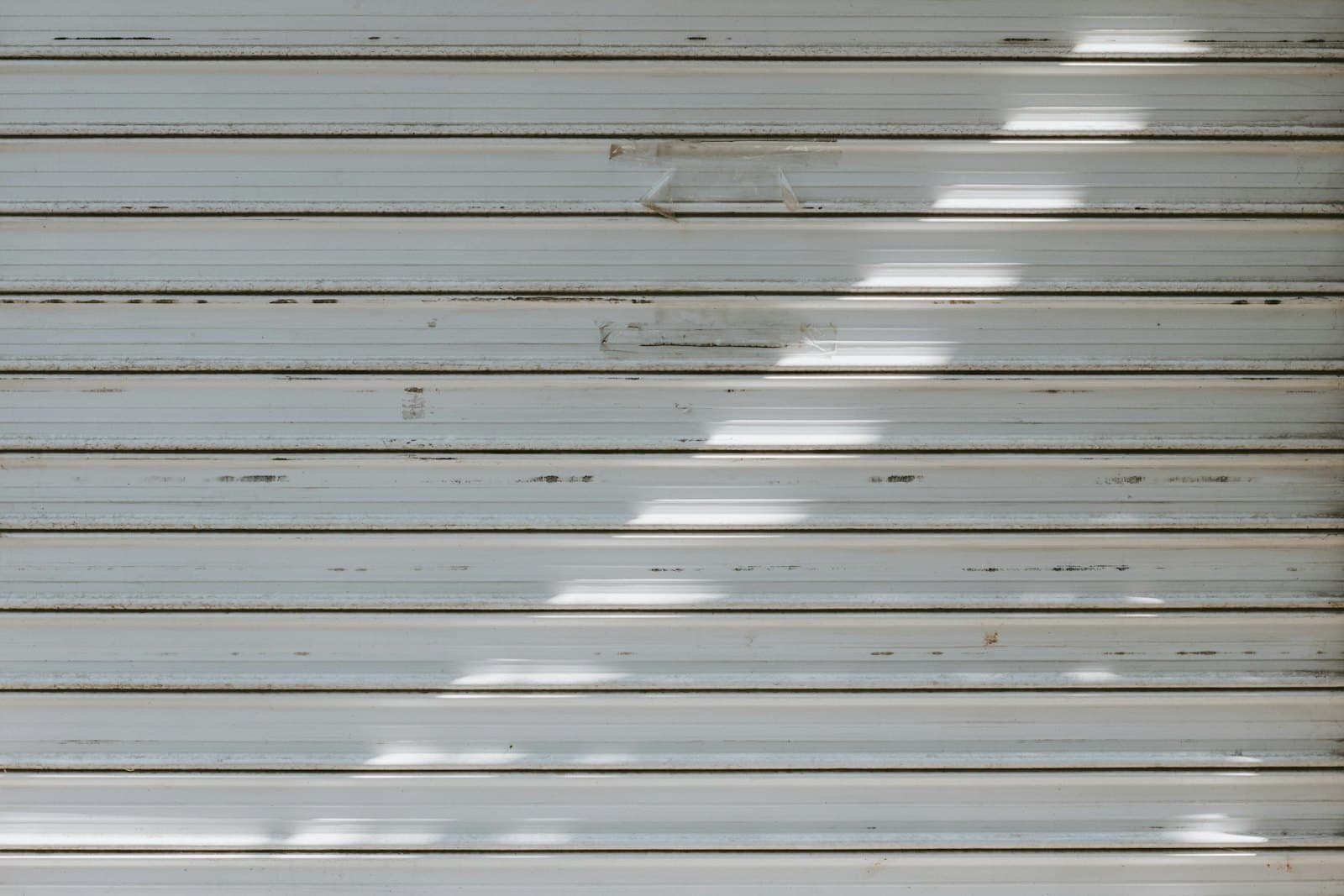

Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Material
- Aluminium-zinc coated steel
- Slat thickness
- 1.0 mm class, 1.2 mm heavy
- Profile
- Approx. 75–80 mm class
- Sizes
- Custom
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About Galvalume Rolling Shutter
Galvalume is steel coated with an aluminium-zinc alloy rather than zinc alone. It sits above galvanized on corrosion protection while keeping everything else about a steel shutter: the strength, the repairability and the cost base.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Standard — 1.0 mm class
Interlocking Galvalume curtain in the 1.0 mm class, manual, gear or motorised, for commercial, industrial and exposed outdoor openings.
Heavy duty — 1.2 mm class
Heavy interlocking Galvalume curtain in the 1.2 mm class, for warehouses, industrial buildings and exposed openings.
10Gallery
Galvalume Rolling Shutter in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- Galvalume Rolling Shutter
- Material
- Aluminium-zinc coated steel (Galvalume)
- Material grade
- Aluminium-zinc coated steel selected according to the required coating specification
- Coating
- Aluminium-zinc alloy coating
- Surface treatment
- Galvalume metallic finish; powder coating optional
Curtain7 fields
- Construction
- Interlocking formed steel slats
- Profile
- Curved / interlocking, approximately 75–80 mm class
- Profile height
- Approximately 75–80 mm class
- Slat thickness
- 1.0 mm class standard / 1.2 mm class heavy duty
- End lock
- Configuration dependent
- Slat weight
- Calculated from the selected profile and material
- Curtain weight
- Calculated from the selected profile, material and opening dimensions
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements
Guide7 fields
- Guide material
- Galvanized steel or MS as the configuration requires
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent
Barrel & shaft5 fields
- Barrel type
- Spring-balanced conventional barrel, or motorised barrel according to configuration
- Shaft diameter
- 32 / 40 / 50 mm class for conventional applications; larger engineered systems project specific
- Shaft material
- Steel
- Bracket
- Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
- Hood / headbox
- Galvalume or GI hood; size configuration dependent
Bottom4 fields
- Bottom profile
- Galvalume or GI bottom rail
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields
- Operation
- Manual, gear operated or motorised
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Standard configuration; wind-resistant configuration available
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Not rated
- Acoustic performance
- Not specifically rated; configuration dependent
- Corrosion resistance
- Enhanced corrosion protection compared with conventional painted MS; environment dependent
- Cycle rating
- Duty dependent; the operator is selected according to operating frequency
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Galvalume metallic coating, or powder coating
- Colour
- Metallic Galvalume, or custom powder-coated colours
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | Galvalume Rolling Shutter |
|---|---|
| Material | Aluminium-zinc coated steel (Galvalume) |
| Material grade | Aluminium-zinc coated steel selected according to the required coating specification |
| Coating | Aluminium-zinc alloy coating |
| Surface treatment | Galvalume metallic finish; powder coating optional |
| Construction | Interlocking formed steel slats |
|---|---|
| Profile | Curved / interlocking, approximately 75–80 mm class |
| Profile height | Approximately 75–80 mm class |
| Slat thickness | 1.0 mm class standard / 1.2 mm class heavy duty |
| End lock | Configuration dependent |
| Slat weight | Calculated from the selected profile and material |
| Curtain weight | Calculated from the selected profile, material and opening dimensions |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | Galvanized steel or MS as the configuration requires |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Spring-balanced conventional barrel, or motorised barrel according to configuration |
|---|---|
| Shaft diameter | 32 / 40 / 50 mm class for conventional applications; larger engineered systems project specific |
| Shaft material | Steel |
| Bracket | Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward |
| Hood / headbox | Galvalume or GI hood; size configuration dependent |
| Bottom profile | Galvalume or GI bottom rail |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Manual, gear operated or motorised |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Standard configuration; wind-resistant configuration available |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Not rated |
| Acoustic performance | Not specifically rated; configuration dependent |
| Corrosion resistance | Enhanced corrosion protection compared with conventional painted MS; environment dependent |
| Cycle rating | Duty dependent; the operator is selected according to operating frequency |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Galvalume metallic coating, or powder coating |
|---|---|
| Colour | Metallic Galvalume, or custom powder-coated colours |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- How is Galvalume different from galvanized?
- Galvanized steel is coated with zinc; Galvalume is coated with an aluminium-zinc alloy. In practice the alloy coating gives better protection in exposed conditions, on the same steel curtain.
- How long will it last in a coastal environment?
- We do not publish a corrosion life, because it depends on the specific atmosphere, the coating specification and maintenance. We can tell you where Galvalume sits relative to galvanized and stainless, and specify against the site rather than against a number.
- What sizes is the Galvalume Rolling Shutter available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
