What U-value does it achieve?

We only publish a U-value where real test data exists for the specific construction, and none has been supplied for these configurations. Tell us the differential the opening has to hold and we will specify the core and sealing against it rather than quote a number we cannot support.

How thick is the insulating core?

It is configuration dependent. Core material and thickness are chosen against the thermal and acoustic requirement, so there is no single figure that applies across the range.

Does it reduce noise as well as heat?

Yes, the double-wall construction with a core reduces noise transfer as well. If acoustic performance is the main reason for specifying it, say so, because it can change which core is appropriate.

What sizes is the Insulated Rolling Shutter available in?

It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.

Can it be motorised, and can an existing shutter be motorised?

Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.

What happens during a power failure?

Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.

What do you need from us to quote?

Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.

Rolling Shutters/Insulated Rolling Shutters

Insulated Rolling Shutter

Name: Standard Automatic Solutions Pvt. Ltd.
Address: 215, Business Square, Opp. DSK Ranwara, Bavdhan, Pune, Maharashtra, 411021, IN
Telephone: +91 8888 100 280

A double-wall slat with a core, where the opening separates two climates.

Request a Quote Talk to an Engineer

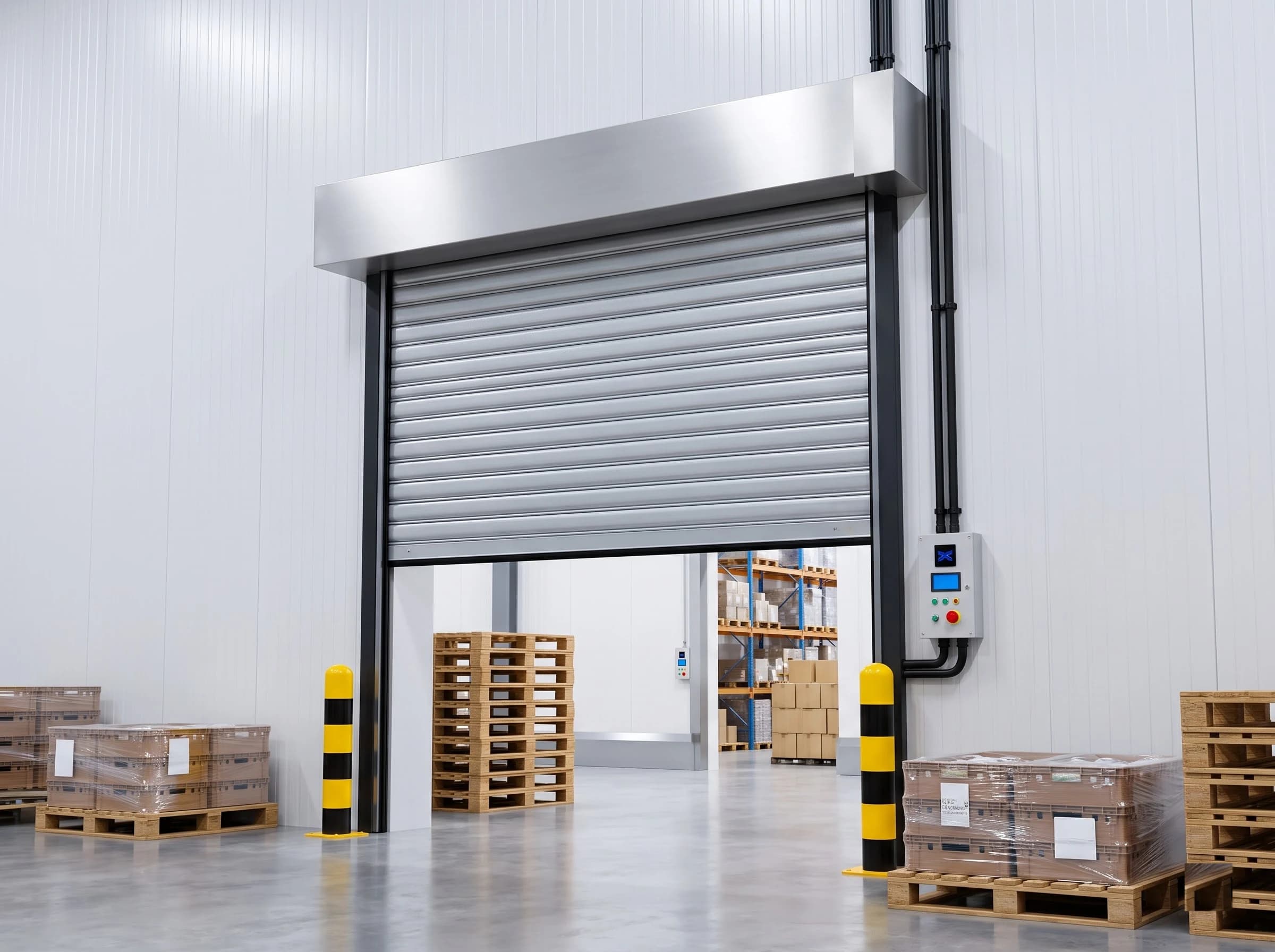

An insulated double-wall rolling shutter lowered to about two-thirds across the loading opening of a white-panelled temperature-controlled logistics building, its thick spangled galvanised slats running between black guides with rubber seals beneath a stainless hood, cool interior light beneath the bottom rail, a wall control station with red emergency stop at the jamb and yellow-and-black bollards on the concrete apron

Rolling Shutters

Product visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.

Key specifications

Construction: Double-wall profile with core
Face materials: Aluminium, GI or steel
Core thickness: Configuration dependent
Thermal performance: Configuration dependent

* Final specification depends on door dimensions, configuration, operating environment and project requirements.

01Overview

About Insulated Rolling Shutter

An insulated shutter replaces the single-skin slat with a double-wall profile and an insulating core. That does two things at once: it slows heat transfer through the closed opening, and it noticeably reduces noise through it.

It is specified where an opening separates two environments that need to stay different — a temperature-controlled store from a dispatch hall, a production area from a yard, or a loading area from an office elevation.

Core material and thickness are selected against the requirement rather than fixed. PU, PIR, mineral wool and other tested insulations are all used, and which one is right depends on the thermal, acoustic and fire requirements of the opening.

Operating method

01

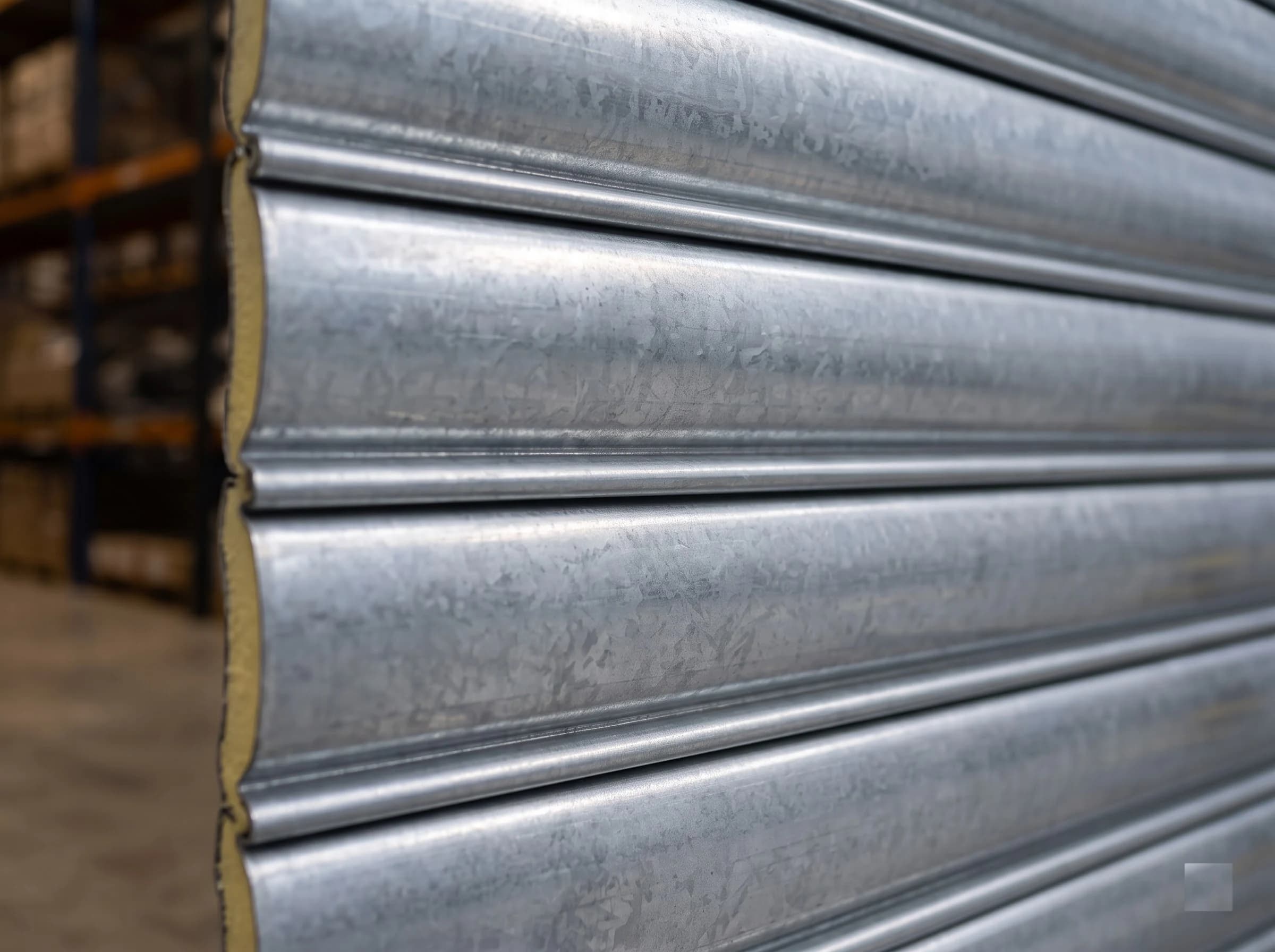

Double-wall slats with an insulating core form the curtain, which rolls onto a barrel above the opening.
02

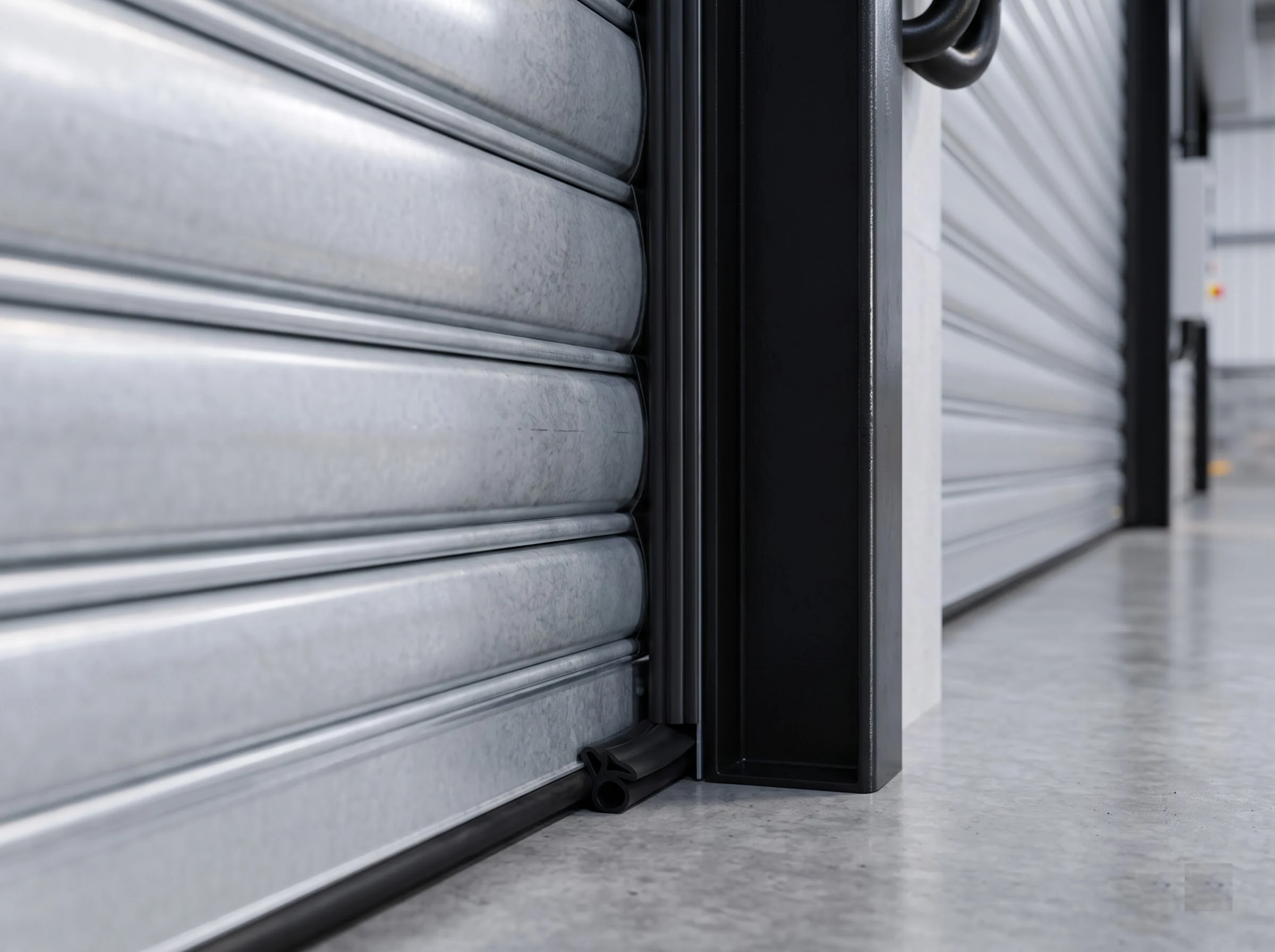

Guide and bottom seals close the perimeter so the insulated curtain becomes an insulated opening.
03
Operation is manual, gear operated or motorised depending on curtain weight.
04
A motorised shutter carries a manual override for use during a power failure.

03Variants

Available configurations

The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.

Standard insulated
Double-wall profile with an insulating core, for general commercial and light industrial openings that need thermal and acoustic separation.
Thermal insulated
Specified where thermal separation is the primary requirement, with the core and the perimeter sealing selected against the differential the opening has to hold.
Industrial insulated
Heavier construction for industrial openings, with the curtain, guide and drive sized for the span as well as the insulation requirement.

09Selection guide

Which configuration is right for your application?

What the decision actually turns on. If your situation is not listed, describe the opening and we will work it through with you.

The shutter is opened and closed many times a day: Size on duty first and motorise it. A shutter chosen only on curtain size will wear at the barrel and drive long before the curtain gives out.
The opening is external or exposed: State the exposure. It decides the guide section, whether wind locks are needed, and rules out lighter curtains regardless of opening size.
The opening separates two temperatures: State the differential. It decides the core, the core thickness and the perimeter sealing, which together are what actually deliver the performance.
Noise through the opening is the problem: The same construction helps, but state the acoustic requirement explicitly, because it can point at a different core.
A large industrial span as well as insulation: The industrial insulated configuration, where the curtain and drive are sized for the span alongside the insulation.
The room is a freezer and the opening is used constantly: An insulated shutter is not a rapid door. Where cycle time drives the air exchange, look at the high speed cold storage door instead.

10Gallery

Insulated Rolling Shutter in detail

04Technical specifications

Specification, features and ordering

Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.

Identification & material5 fields

Product family: Insulated Rolling Shutter
Material: Aluminium / GI / steel
Material grade: Face material selected according to the environment and the insulation requirement
Coating: Paint, powder coating, galvanized or aluminium finish depending on face material
Surface treatment: Powder coating optional

Curtain9 fields

Construction: Double-wall insulated profile
Profile: Double-wall insulated slat
Profile height: Configuration dependent
Overall profile thickness: Configuration dependent
End lock: Configuration dependent
Slat weight: Calculated from the selected profile and material
Curtain weight: Calculated from the selected profile, material and opening dimensions
Core material: PU / PUF, PIR, mineral wool or another tested insulation
Core thickness: Configuration dependent

Opening4 fields

Maximum width: Custom size; configuration dependent
Maximum height: Custom size; configuration dependent
Maximum area: Configuration dependent
Intermediate mullion: Available for large or multiple curtain arrangements

Guide7 fields

Guide material: Sealed or reinforced guide according to the profile
Guide width: 65 / 75 / 100 mm class depending on opening size
Guide depth: Configuration dependent; conventional systems approximately 65–100 mm class
Guide thickness: 3.15 mm class conventional guide construction
Curtain engagement: 40–60 mm depending on opening width
Wind lock: Optional; required where wind exposure or design demands it
Guide seal: Guide seal fitted

Barrel & shaft5 fields

Barrel type: Conventional or motorised barrel according to configuration
Shaft diameter: Configuration dependent
Shaft material: Steel
Bracket: Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
Hood / headbox: Hood or headbox to suit the face material; size configuration dependent

Bottom4 fields

Bottom profile: Insulated bottom rail
Bottom bar dimensions: Configuration dependent
Bottom seal: EPDM or rubber seal
Lock: Central or side locking according to configuration

Operation & control6 fields

Operation: Gear operated or motorised
Motor options: Tubular, central or side-mounted motor depending on shutter size and configuration
Motor rating: Selected according to curtain weight, opening and duty
Supply voltage: 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
Emergency manual override: Manual override available on powered configurations
Controls: Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible

Performance7 fields

Wind resistance: Standard configuration; wind-resistant configuration available
Fire rating: Not automatically fire-rated; a fire rating requires a certified system
Thermal performance: Configuration dependent; a U-value is published only where actual product test data exists
Acoustic performance: Configuration dependent; a tested dB figure is published only where documented
Corrosion resistance: Depends on the face material and finish selected
Cycle rating: Duty dependent; the operator is selected according to operating frequency
Opening speed: Motor and configuration dependent

Safety4 fields

Safety devices: Photocell, safety edge and emergency stop available depending on the motor and control configuration
Anti-drop device: Available where required; configuration dependent
Brake: Motor or gear brake according to the selected operator
Obstacle detection: Available with a compatible control and safety system

Finish2 fields

Finish: Paint, powder coating, galvanized or aluminium finish
Colour: Standard colours; custom RAL available

Installation4 fields

Mounting: Face mounted, between jamb or recessed
Headroom required: Survey dependent
Side room required: Survey dependent
Mounting substrate: Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate

Identification & material
Product family	Insulated Rolling Shutter
Material	Aluminium / GI / steel
Material grade	Face material selected according to the environment and the insulation requirement
Coating	Paint, powder coating, galvanized or aluminium finish depending on face material
Surface treatment	Powder coating optional

Curtain
Construction	Double-wall insulated profile
Profile	Double-wall insulated slat
Profile height	Configuration dependent
Overall profile thickness	Configuration dependent
End lock	Configuration dependent
Slat weight	Calculated from the selected profile and material
Curtain weight	Calculated from the selected profile, material and opening dimensions
Core material	PU / PUF, PIR, mineral wool or another tested insulation
Core thickness	Configuration dependent

Opening
Maximum width	Custom size; configuration dependent
Maximum height	Custom size; configuration dependent
Maximum area	Configuration dependent
Intermediate mullion	Available for large or multiple curtain arrangements

Guide
Guide material	Sealed or reinforced guide according to the profile
Guide width	65 / 75 / 100 mm class depending on opening size
Guide depth	Configuration dependent; conventional systems approximately 65–100 mm class
Guide thickness	3.15 mm class conventional guide construction
Curtain engagement	40–60 mm depending on opening width
Wind lock	Optional; required where wind exposure or design demands it
Guide seal	Guide seal fitted

Barrel & shaft
Barrel type	Conventional or motorised barrel according to configuration
Shaft diameter	Configuration dependent
Shaft material	Steel
Bracket	Steel bracket, size selected according to shutter height and load; conventional reference range from 300 × 300 mm upward
Hood / headbox	Hood or headbox to suit the face material; size configuration dependent

Bottom
Bottom profile	Insulated bottom rail
Bottom bar dimensions	Configuration dependent
Bottom seal	EPDM or rubber seal
Lock	Central or side locking according to configuration

Operation & control
Operation	Gear operated or motorised
Motor options	Tubular, central or side-mounted motor depending on shutter size and configuration
Motor rating	Selected according to curtain weight, opening and duty
Supply voltage	230 V AC single-phase or 415 V AC three-phase depending on the selected motor
Emergency manual override	Manual override available on powered configurations
Controls	Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible

Performance
Wind resistance	Standard configuration; wind-resistant configuration available
Fire rating	Not automatically fire-rated; a fire rating requires a certified system
Thermal performance	Configuration dependent; a U-value is published only where actual product test data exists
Acoustic performance	Configuration dependent; a tested dB figure is published only where documented
Corrosion resistance	Depends on the face material and finish selected
Cycle rating	Duty dependent; the operator is selected according to operating frequency
Opening speed	Motor and configuration dependent

Safety
Safety devices	Photocell, safety edge and emergency stop available depending on the motor and control configuration
Anti-drop device	Available where required; configuration dependent
Brake	Motor or gear brake according to the selected operator
Obstacle detection	Available with a compatible control and safety system

Finish
Finish	Paint, powder coating, galvanized or aluminium finish
Colour	Standard colours; custom RAL available

Installation
Mounting	Face mounted, between jamb or recessed
Headroom required	Survey dependent
Side room required	Survey dependent
Mounting substrate	Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate

Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.

Often specified alongside

All Rolling Shutters

Rolling Shutters

GI Solid Rolling Shutter

Galvanized steel interlocking curtain in the 0.8–1.0 mm class and 1.2 mm heavy duty, for shops, godowns and outdoor openings where a painted curtain would not last.

2 configurations

Explore product

High Speed Doors

High Speed Cold Storage / Freezer Door

Insulated flexible PVC or specialist cold-temperature curtain with heated or temperature-resistant guides and a cold-storage bottom seal, under frequency control.

2 configurations

Explore product

FAQ

Questions we are actually asked

What U-value does it achieve?: We only publish a U-value where real test data exists for the specific construction, and none has been supplied for these configurations. Tell us the differential the opening has to hold and we will specify the core and sealing against it rather than quote a number we cannot support.
How thick is the insulating core?: It is configuration dependent. Core material and thickness are chosen against the thermal and acoustic requirement, so there is no single figure that applies across the range.
Does it reduce noise as well as heat?: Yes, the double-wall construction with a core reduces noise transfer as well. If acoustic performance is the main reason for specifying it, say so, because it can change which core is appropriate.
What sizes is the Insulated Rolling Shutter available in?: It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
Can it be motorised, and can an existing shutter be motorised?: Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
What happens during a power failure?: Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
What do you need from us to quote?: Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.

Engineering enquiry

Get a specification for Insulated Rolling Shutter.

Five answers about the opening are usually enough for us to come back with a configuration and a price.

+91 8888 100 280 WhatsApp us

Loading enquiry form…

Get in touch

Or talk it through with an engineer.

If it is easier to describe the opening than to write it down, call or message us and we will work through it with you.

Request a Quote WhatsApp Us +91 8888 100 280
