Automatic Gates/Retractable Gates
Retractable Gates
A folding lattice leaf that collapses into a very short stack.
Automatic GatesKey specifications
- Maximum length
- 30 m
- Standard height
- 1.6 m
- Travel speed
- 17–19 m/min
- Remote range
- 30 m or more
01Overview
About Retractable Gates

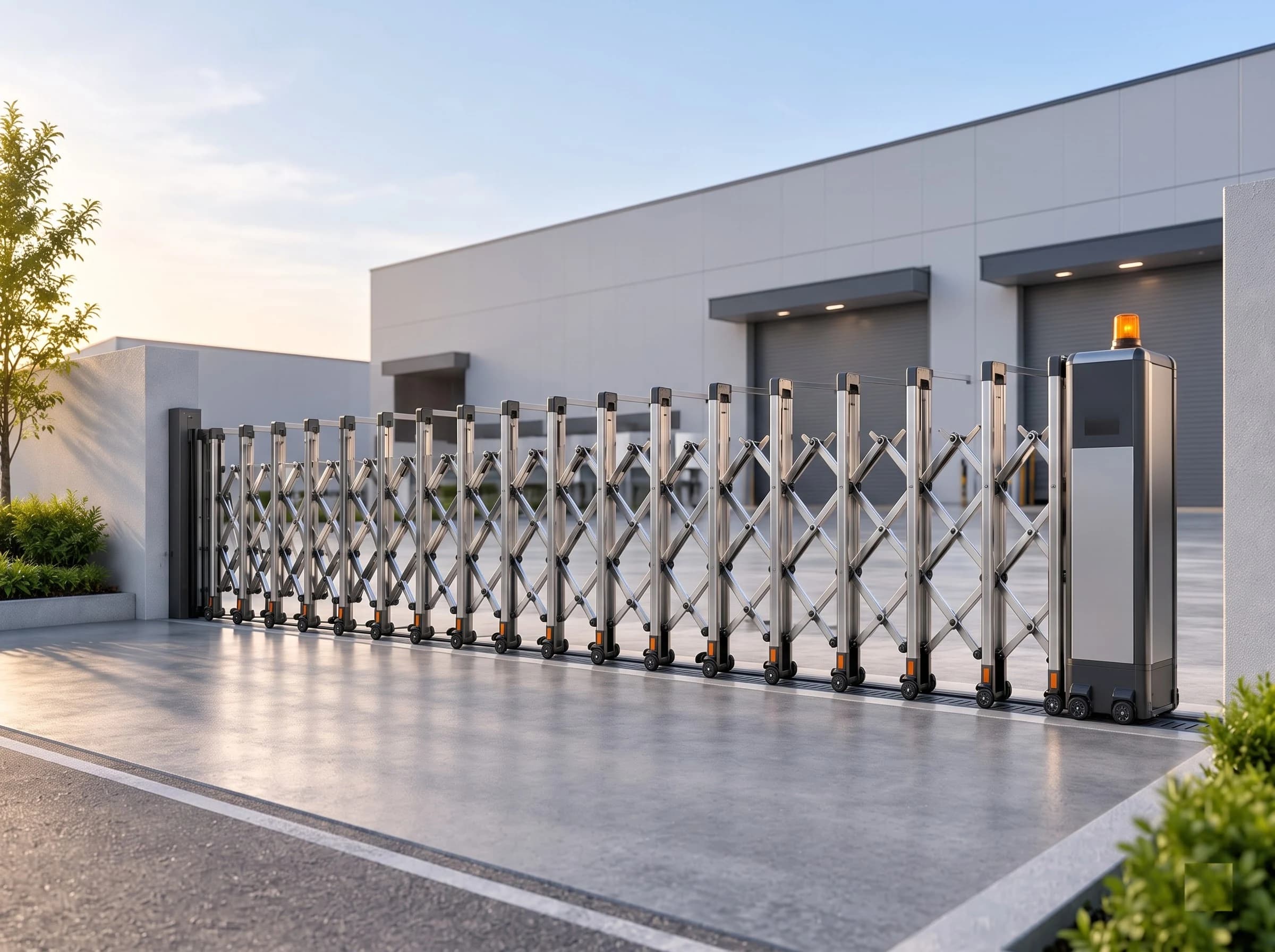

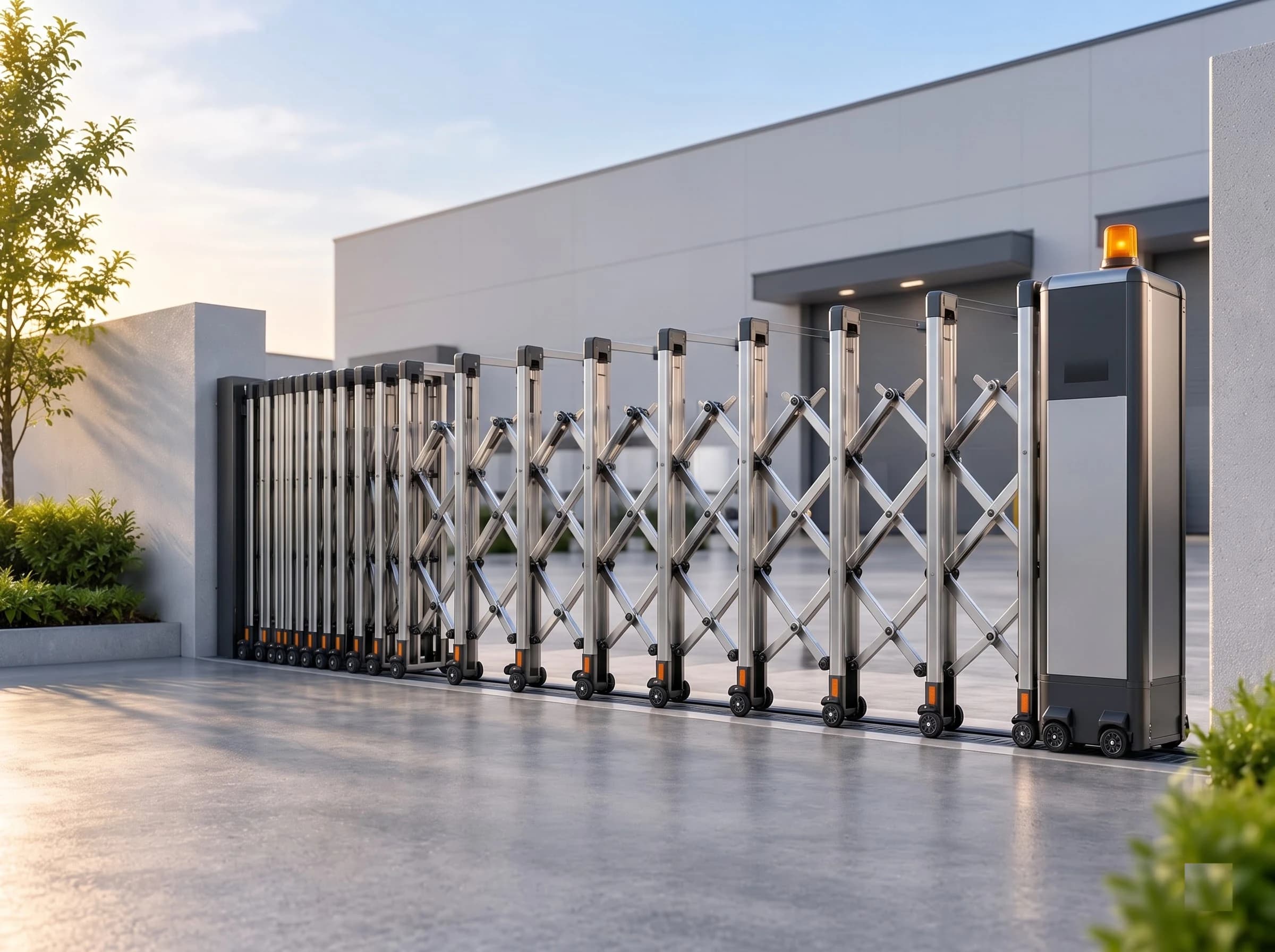

A retractable gate uses a folding lattice frame instead of a rigid leaf. Because the structure collapses on itself, a long opening can be closed by a gate that parks into a very short length of boundary — which is why the type is so common on factory, school and campus gates in India.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Trackless
Nothing crosses the driveway. Preferred where drainage, silt or heavy axle loads make a ground track impractical.
Single track
One ground rail for added lateral stability on longer runs.
Double track
Two ground rails for the greatest stability on long or wind-exposed openings.
10Gallery
Retractable Gates in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Dimensions5 fields
- Maximum clear opening(mm)
- 30 m
- Maximum leaf width(mm)
- Up to 30 m (single expanding leaf)
- Maximum leaf height(mm)
- 1.6 m
- Maximum leaf weight(kg)
- Per the gate length; configuration dependent
- Side-run or swing room required(mm)
- Parked stack length; confirmed at survey
With the operator, this is what sizes the drive.
Cycle performance3 fields
- Travel speed(m/min)
- 17–19 m/min
- Opening time for full travel(s)
- Length-dependent at 17–19 m/min travel speed
- Rated daily cycles(cycles/day)
- Duty dependent; confirmed at order
Construction6 fields

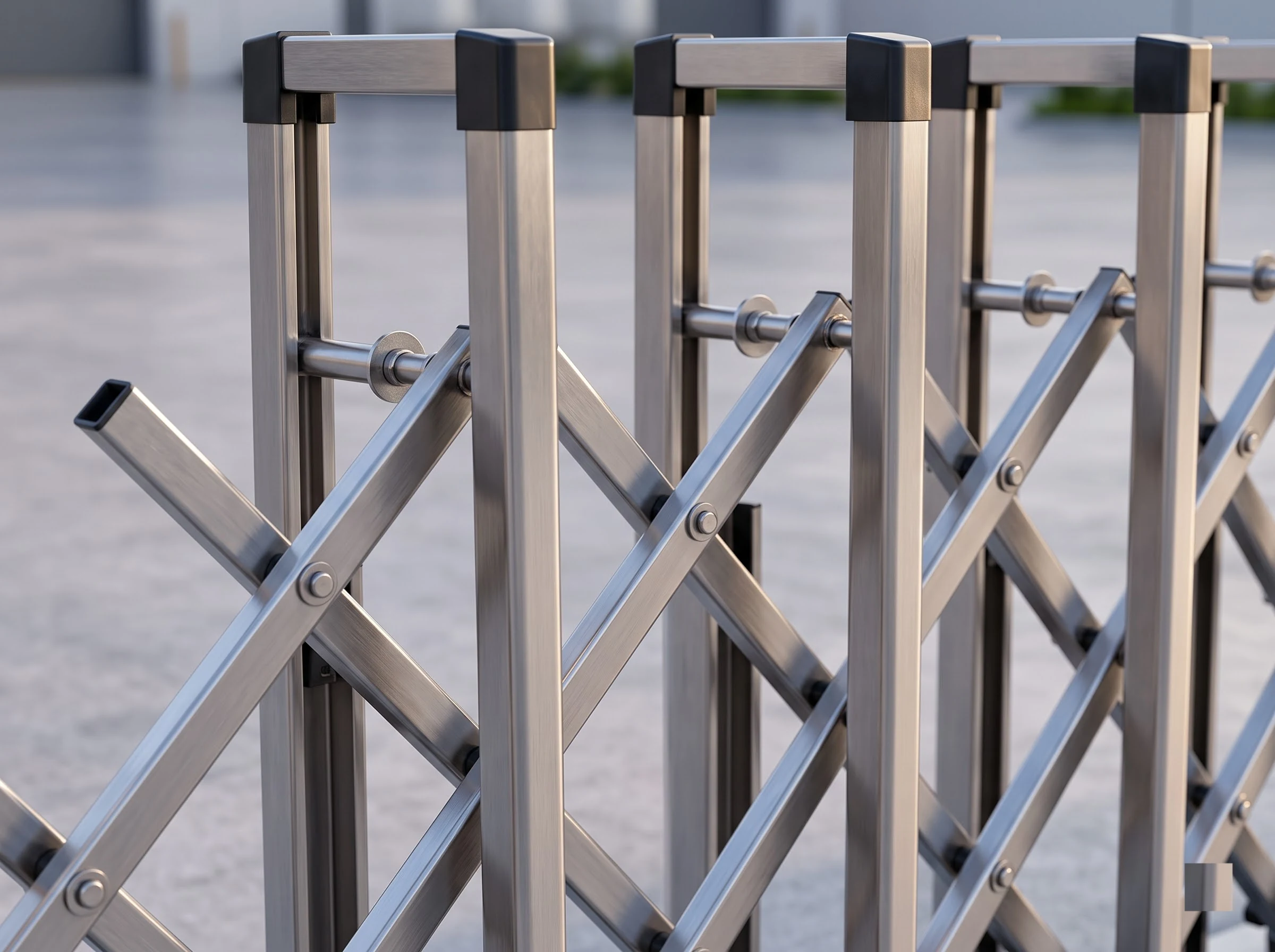

- Frame section
- 52 × 50 × 0.65 mm
- Infill
- Powder-coated aluminium alloy lattice (52 × 50 × 0.65 mm main, 44 × 35 × 0.6 mm cross tubes)

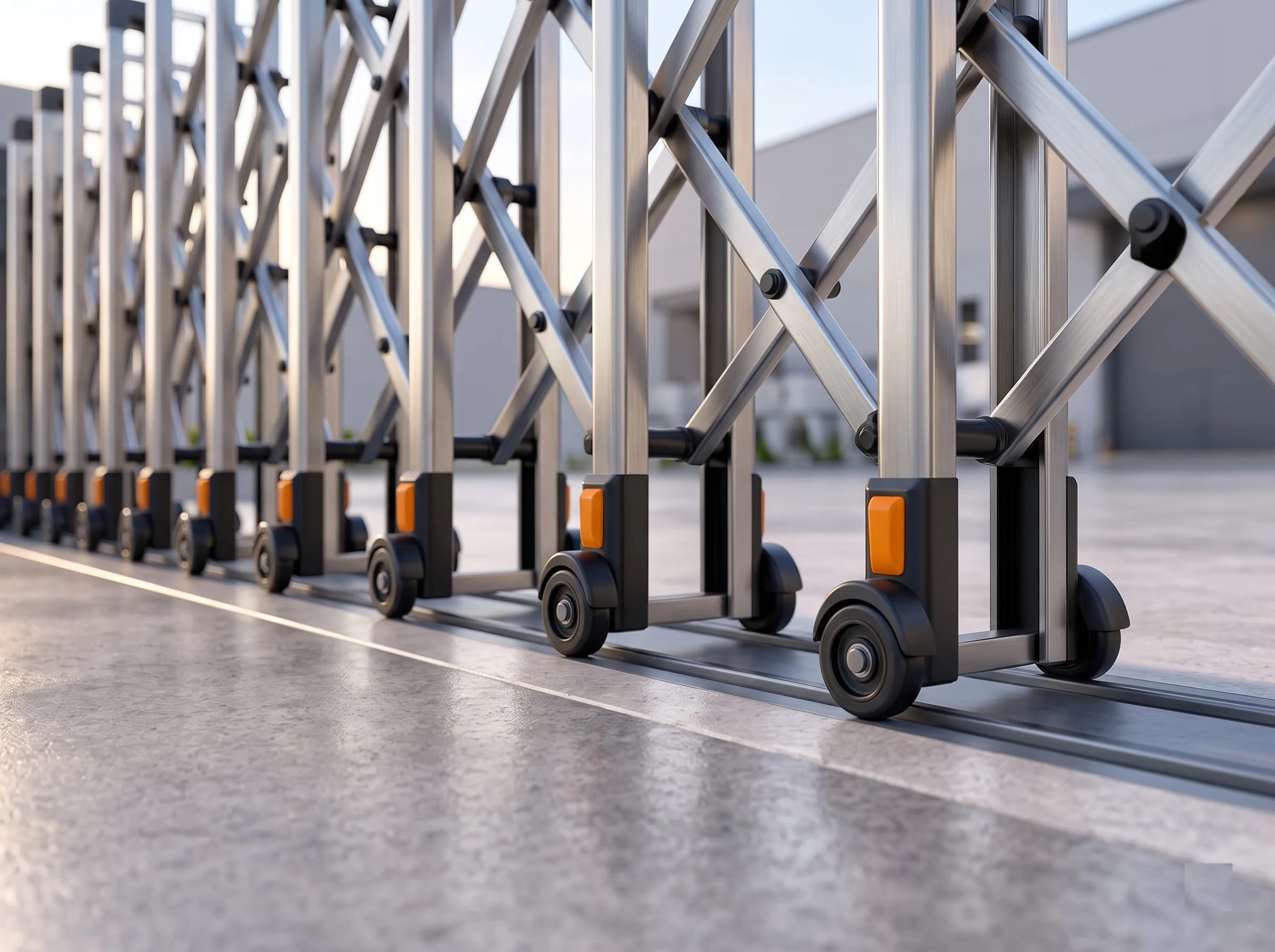

- Running gear
- Plastic or cast aluminium, 95 mm diameter
- Ground arrangement
- No track, single track, double track
- Posts and foundations
- Survey dependent — sized to the ground and the track arrangement
- Finish and colour
- Silver, black, red
Wheels, rollers, cantilever carriage or hinges.
Tracked, trackless or cantilever.
Drive5 fields
- Operator type
- Electric drive, 370 / 550 / 750 W, sized to the gate length
- Rated motor power(kW)
- 370 W / 550 W / 750 W
- Supply voltage(V / phase / Hz)
- 220 V ±10%, 50 Hz
- Duty rating(cycles per hour or %ED)
- Drive sized to the duty at order
- Manual override
- Manual release for hand operation during a power failure
Duty, not torque, is what usually limits an operator.
Control4 fields
- Control system

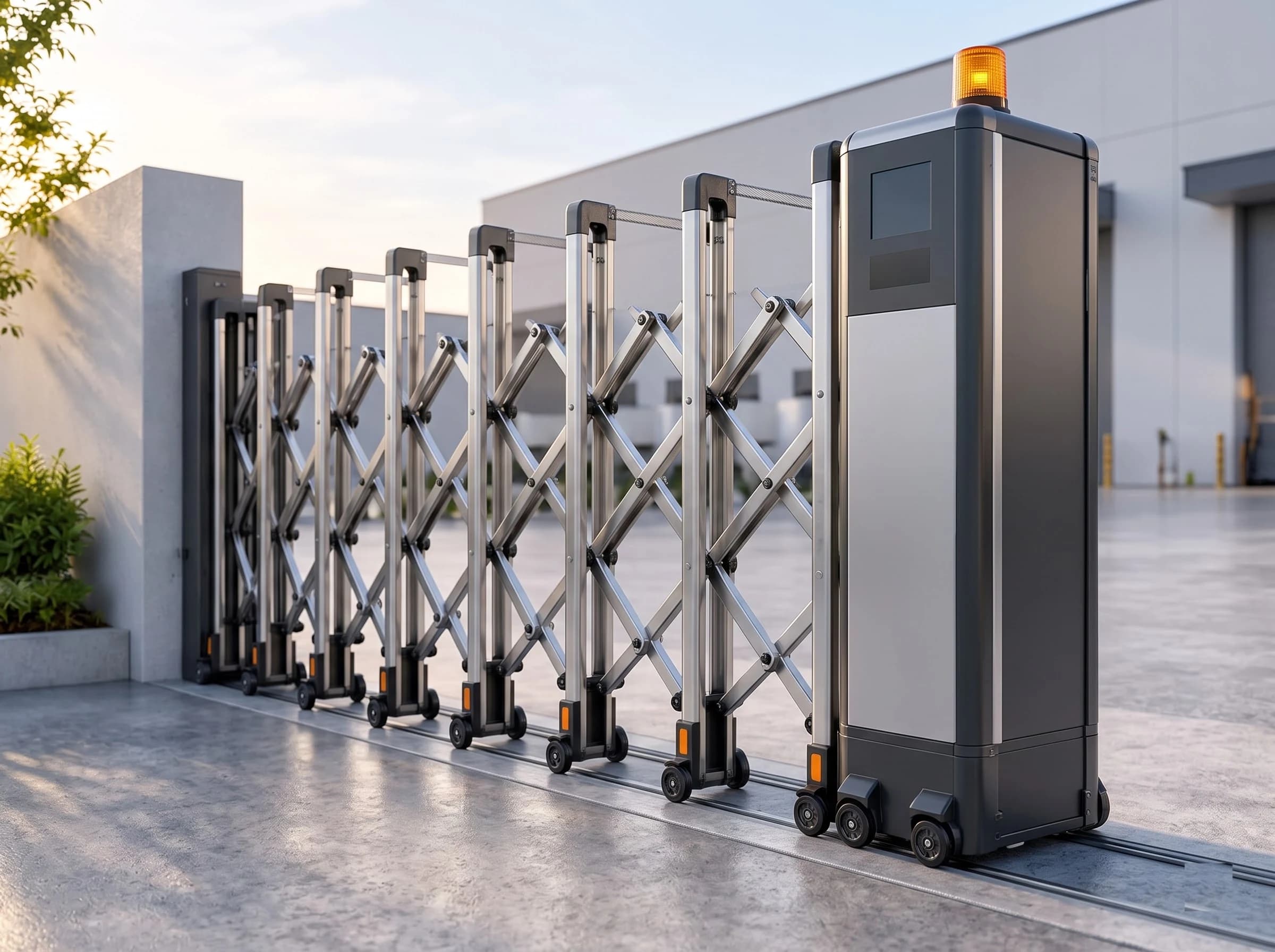

- Drive control unit in the leading section
- Activation devices
- Radio remote control (≥ 30 m range)
- Travel limit setting
- Set at commissioning
- Interfaces
- Configuration dependent
Access control, traffic lights, alarm panel, interlocks.
Safety6 fields
- Photocells
- Configuration dependent
- Safety edge
- Configuration dependent
- Obstruction detection
- Infrared sensor; auto-stop on an obstacle within 500 mm
- Operating force limitation
- Certification dependent (EN 12453)
- Manual release
- Manual release for hand operation during a power failure
- Warning light and audible warning
- Configuration dependent
EN 12453.
Compliance3 fields
- Product standard
- Certification dependent (EN 13241 / EN 12604 field list)
- Conformity marking
- Certification dependent
- Certificate reference
- Certification dependent
EN 13241 and EN 12604 apply to powered gates in this market.
Required before any rating is published.
Additional published data4 fields
- Cross tube
- 44 × 35 × 0.6 mm
- Operating current
- ≤ 2.5 A × 2
- Remote control range
- ≥ 30 m
- Working temperature
- -25 °C to +75 °C
| Maximum clear opening | 30 m |
|---|---|
| Maximum leaf width | Up to 30 m (single expanding leaf) |
| Maximum leaf height | 1.6 m |
| Maximum leaf weightWith the operator, this is what sizes the drive. | Per the gate length; configuration dependent |
| Side-run or swing room required | Parked stack length; confirmed at survey |
| Travel speed | 17–19 m/min |
|---|---|
| Opening time for full travel | Length-dependent at 17–19 m/min travel speed |
| Rated daily cycles | Duty dependent; confirmed at order |
| Frame section | 52 × 50 × 0.65 mm |
|---|---|
| Infill | Powder-coated aluminium alloy lattice (52 × 50 × 0.65 mm main, 44 × 35 × 0.6 mm cross tubes) |
| Running gearWheels, rollers, cantilever carriage or hinges. | Plastic or cast aluminium, 95 mm diameter |
| Ground arrangementTracked, trackless or cantilever. | No track, single track, double track |
| Posts and foundations | Survey dependent — sized to the ground and the track arrangement |
| Finish and colour | Silver, black, red |
| Operator type | Electric drive, 370 / 550 / 750 W, sized to the gate length |
|---|---|
| Rated motor power | 370 W / 550 W / 750 W |
| Supply voltage | 220 V ±10%, 50 Hz |
| Duty ratingDuty, not torque, is what usually limits an operator. | Drive sized to the duty at order |
| Manual override | Manual release for hand operation during a power failure |
| Control system | Drive control unit in the leading section |
|---|---|
| Activation devices | Radio remote control (≥ 30 m range) |
| Travel limit setting | Set at commissioning |
| InterfacesAccess control, traffic lights, alarm panel, interlocks. | Configuration dependent |
| Photocells | Configuration dependent |
|---|---|
| Safety edge | Configuration dependent |
| Obstruction detection | Infrared sensor; auto-stop on an obstacle within 500 mm |
| Operating force limitationEN 12453. | Certification dependent (EN 12453) |
| Manual release | Manual release for hand operation during a power failure |
| Warning light and audible warning | Configuration dependent |
| Product standardEN 13241 and EN 12604 apply to powered gates in this market. | Certification dependent (EN 13241 / EN 12604 field list) |
|---|---|
| Conformity marking | Certification dependent |
| Certificate referenceRequired before any rating is published. | Certification dependent |
| Cross tube | 44 × 35 × 0.6 mm |
|---|---|
| Operating current | ≤ 2.5 A × 2 |
| Remote control range | ≥ 30 m |
| Working temperature | -25 °C to +75 °C |
Final specification depends on door dimensions, configuration, operating environment and project requirements.
FAQ
Questions we are actually asked
- How long an opening can a retractable gate close?
- Our published configuration covers openings up to 30 m at a standard 1.6 m height, driven at 17–19 m/min.
- Does it need a track?
- No — trackless, single-track and double-track arrangements are all available. Track adds lateral stability; trackless keeps the driveway clear.
