Automatic Gates/Sliding Gates
Telescopic Sliding Gates
Full opening width on a site with only half the side-run.
Automatic GatesKey specifications
- Side-run needed
- About half a single leaf
- Leaves
- Two or three, nesting
- Opening time
- Shorter than an equivalent single leaf
- Specification
- Configured per opening at survey
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview

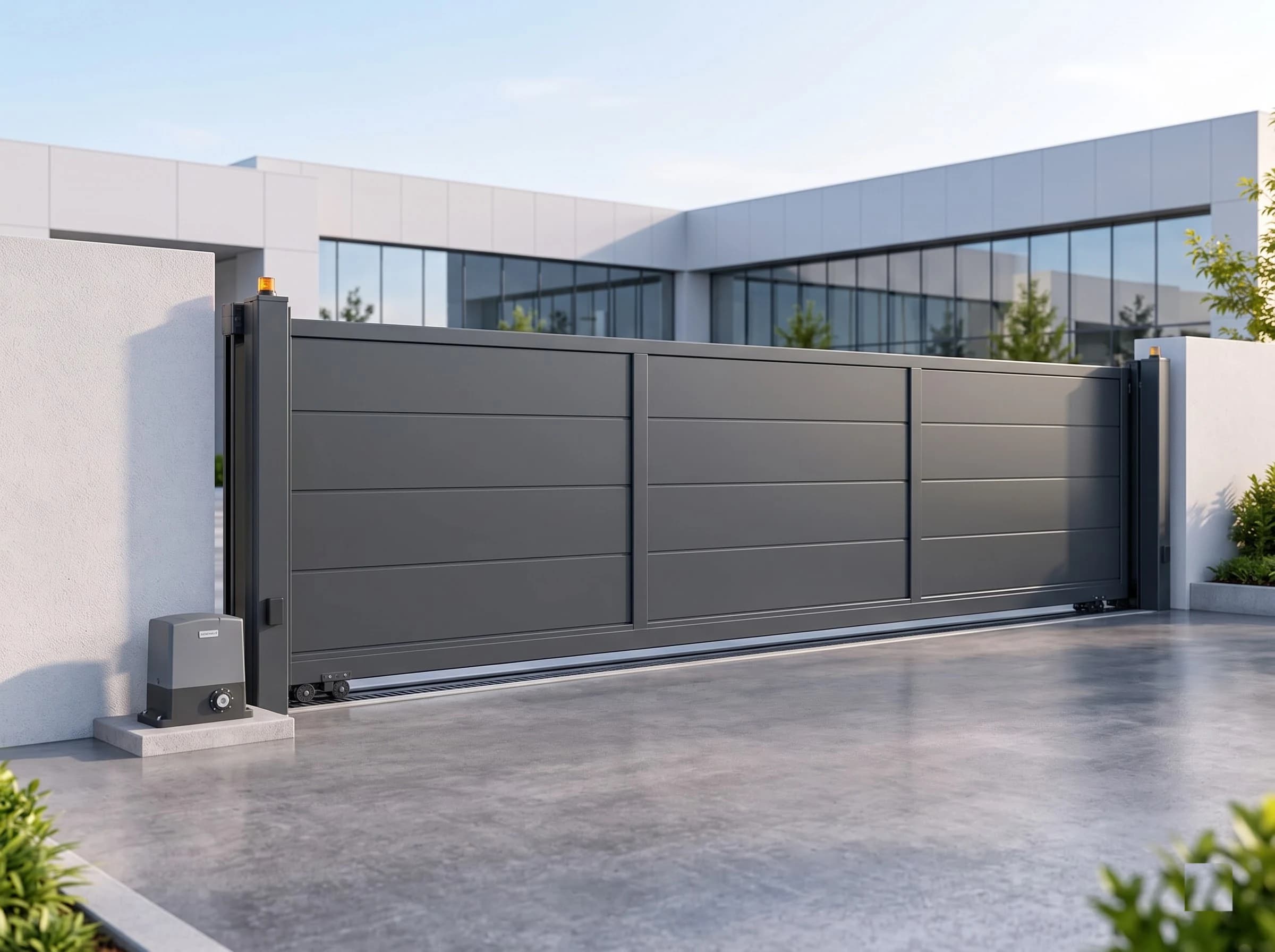

About Telescopic Sliding Gates

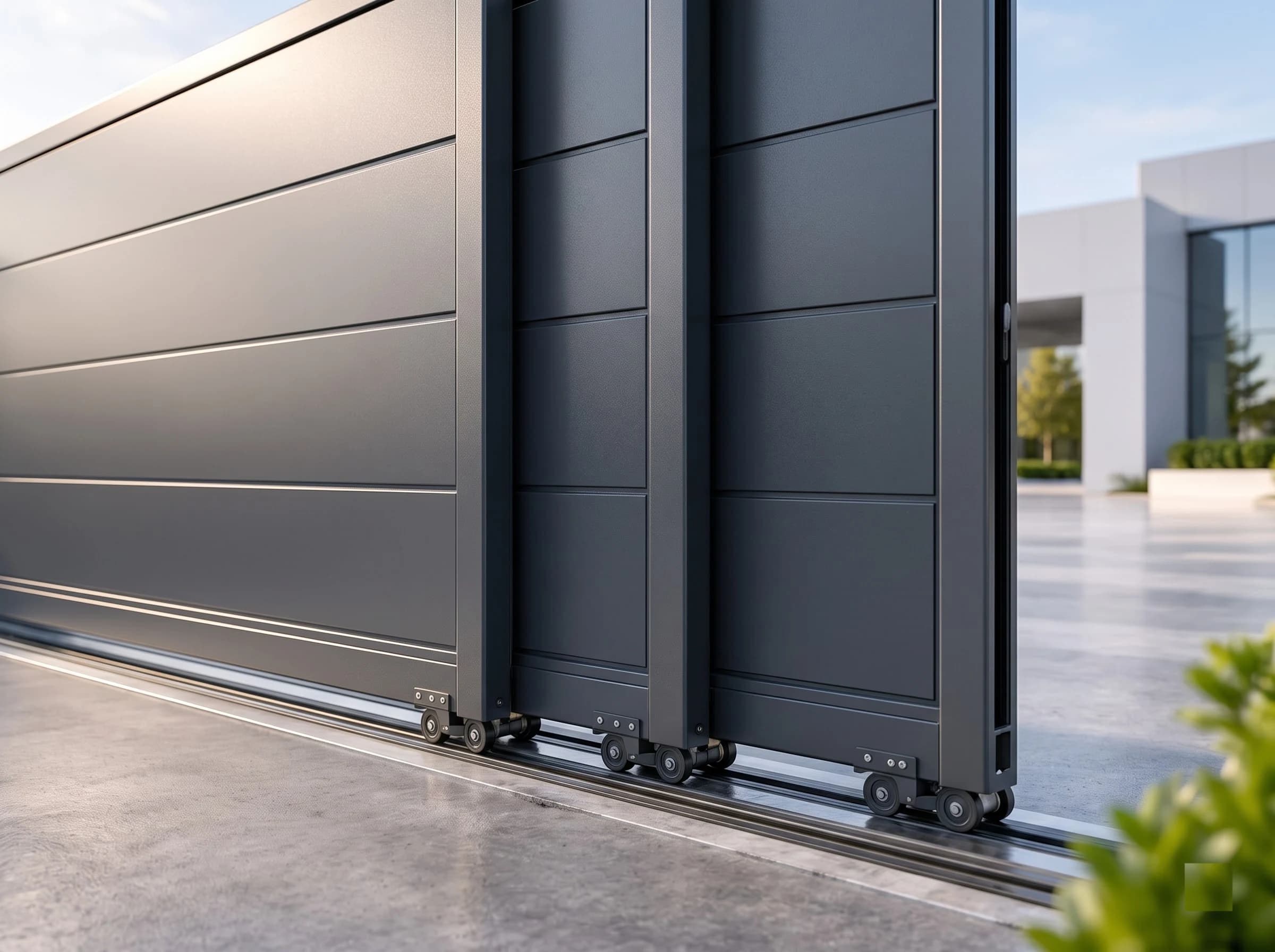

A telescopic gate solves a specific site constraint: the opening is wide, but there is nowhere near enough clear boundary alongside it for a single sliding leaf to retract into. Two or three leaves run on parallel tracks and nest inside one another, so the retracted stack is a fraction of the open width.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Two-leaf nesting
The usual arrangement. Halves the required side-run compared with a single leaf of the same opening width.

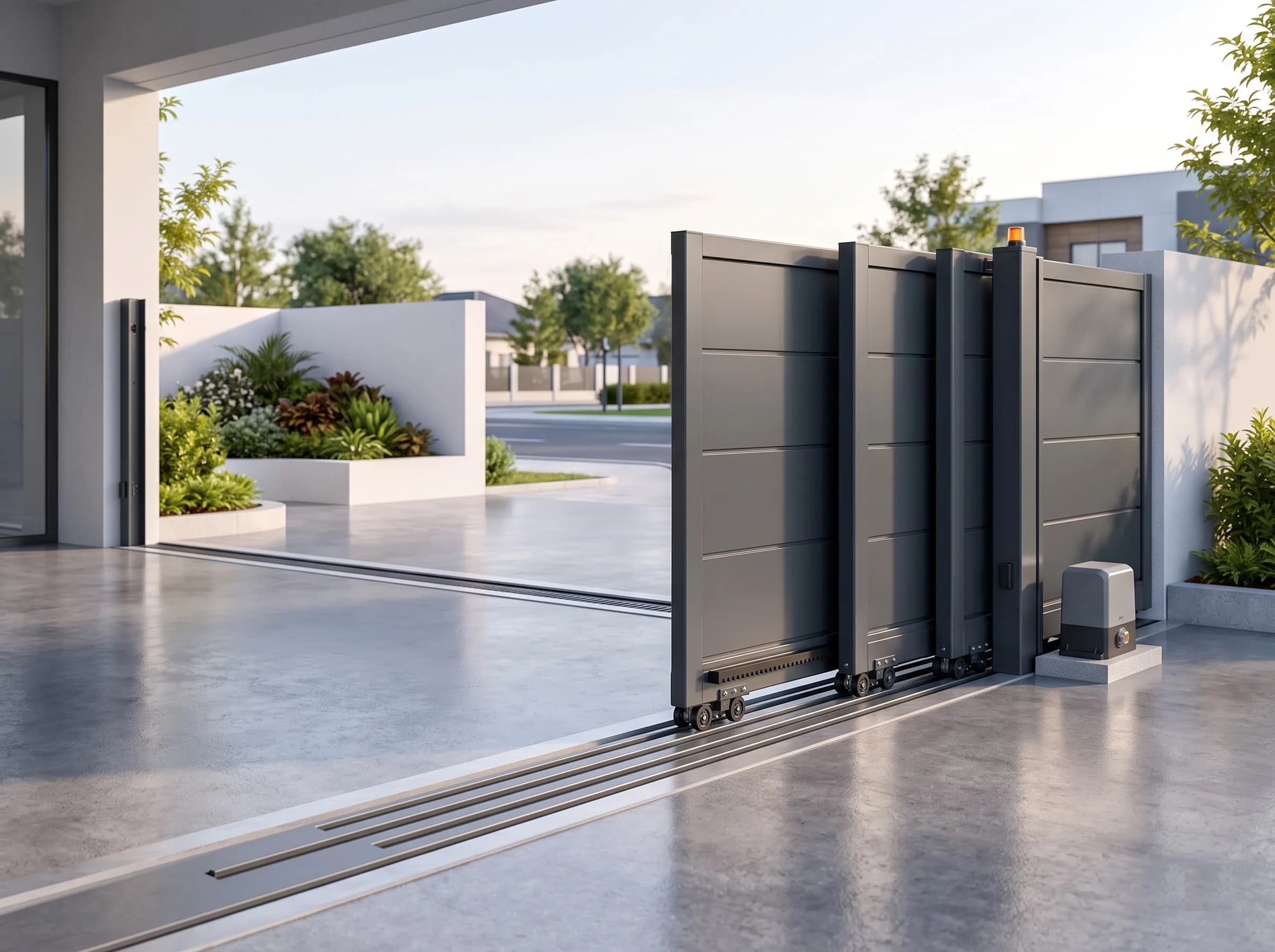

Three-leaf nesting
For very wide openings on very short boundaries, at the cost of a more involved drive and guidance arrangement.
10Gallery
Telescopic Sliding Gates in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Dimensions5 fields
- Maximum clear opening
- Up to 18,000 mm
- Maximum leaf width
- Up to 9,000 mm per telescopic leaf
- Maximum leaf height
- Up to 2,500 mm
- Maximum leaf weight
- Up to 1,500 kg per leaf
- Side-run or swing room required
- Approximately 50–60% of the clear opening, depending on the telescopic configuration
A design envelope rather than a combination: no single telescopic configuration reaches the maximum opening, leaf size and weight at once.
With the operator, this is what sizes the drive.
Cycle performance3 fields
- Travel speed
- Up to 10 m/min
- Opening time for full travel
- Application dependent
- Rated daily cycles
- Up to 300 cycles/day
Set by the clear opening, the number of leaves, the leaf weight, the operator configuration and its acceleration and deceleration, so no single figure covers every installation.
Construction6 fields
- Frame section
- Heavy-duty MS structural steel section
- Infill
- MS, GI, SS or aluminium, and customised infill options

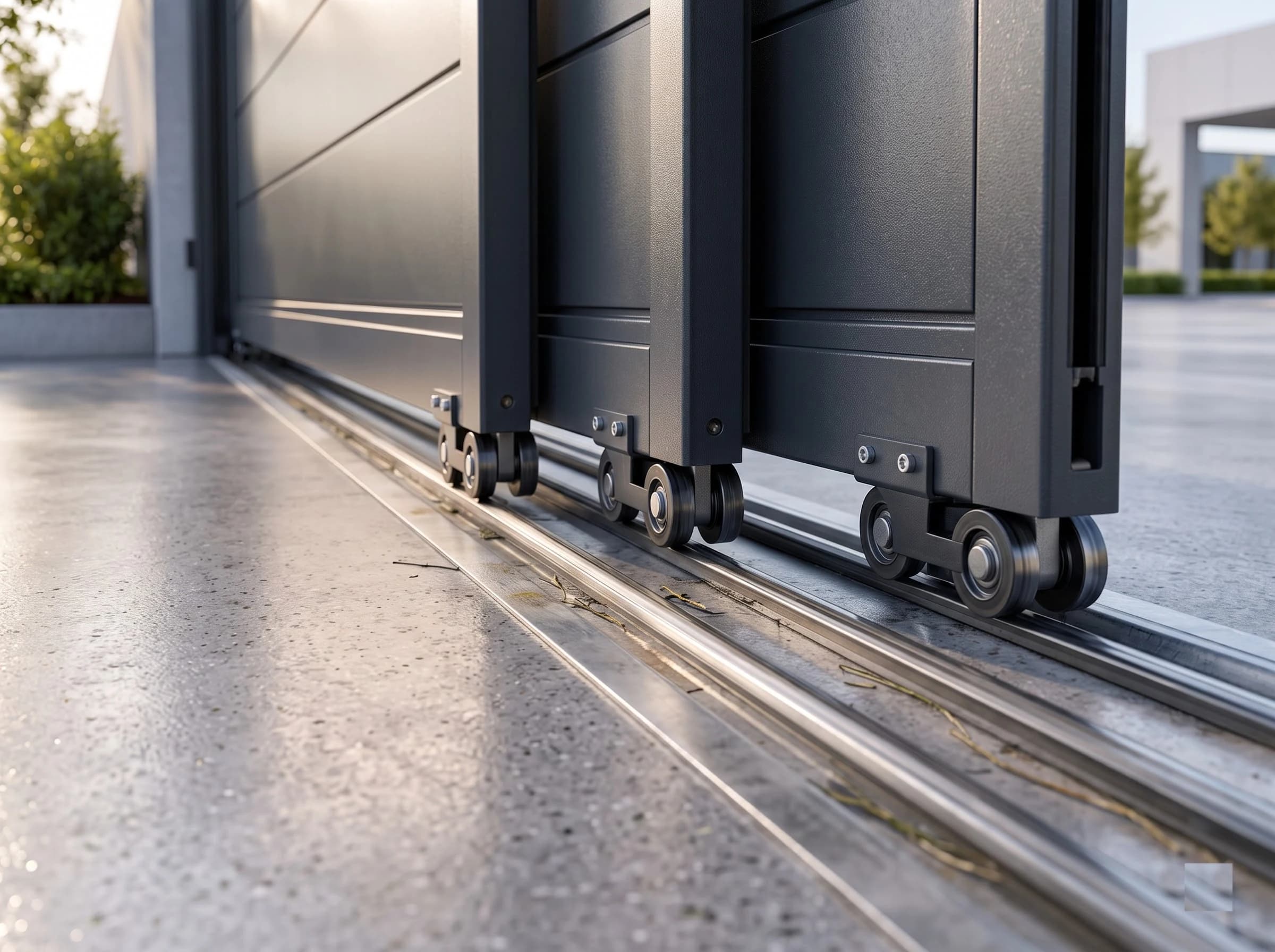

- Running gear
- Heavy-duty guide rollers and telescopic carriage system
- Ground arrangement
- Tracked telescopic or trackless configuration available, depending on the design
- Posts and foundations
- Site-specific structural design
- Finish and colour
- Powder coated, PU painted or hot-dip galvanized options
Wheels, rollers, cantilever carriage or hinges.
Tracked, trackless or cantilever.
Drive5 fields

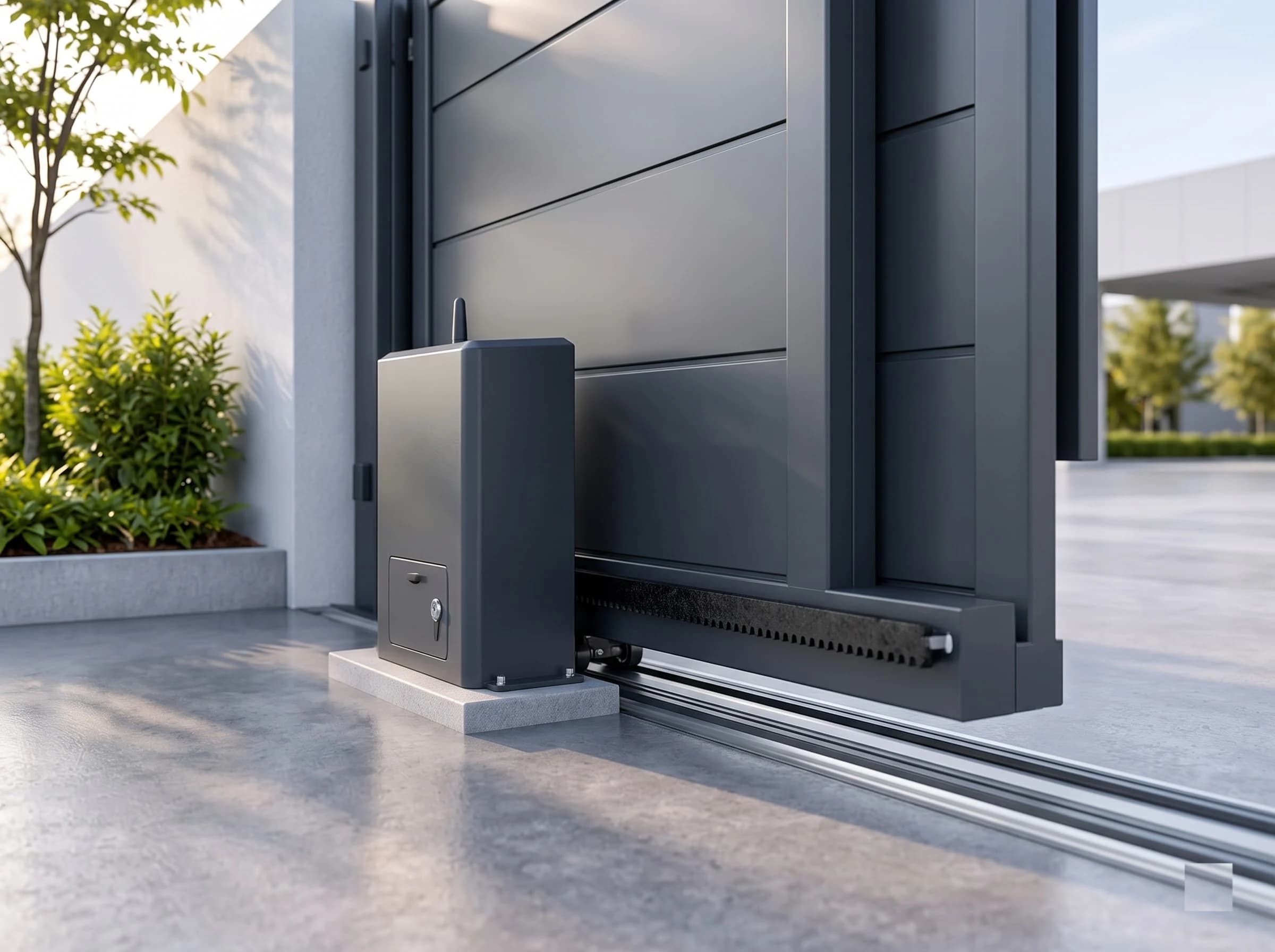

- Operator type
- Rack-and-pinion geared operator
- Rated motor power
- 0.75–1.5 kW, depending on gate size, weight and number of leaves
- Supply voltage
- 230 V AC single phase, or 415 V AC three phase
- Duty rating
- Heavy-duty, intensive use
- Manual override
- Key-operated emergency manual release
Selected per gate rather than fixed across the range.
Control4 fields
- Control system
- Microprocessor-based electronic control panel
- Activation devices
- Remote control, push button, key switch, RFID or access control, and loop detector
- Travel limit setting
- Electronic or magnetic limit system, depending on the operator
- Interfaces
- Access control, traffic lights, interlocks, and external control systems
Access control, traffic lights, alarm panel, interlocks.
Safety6 fields
- Photocells
- Dual safety photocells with presence detection
- Safety edge
- Sensitive safety edge where required
- Obstruction detection
- Electronic obstruction detection with automatic stop and reverse
- Operating force limitation
- Designed and tested according to applicable powered-gate safety requirements
- Manual release
- Emergency manual release
- Warning light and audible warning
- Flashing warning light; audible warning optional where the application requires it
Compliance3 fields
- Product standard
- Designed with reference to applicable standards for powered gates
- Conformity marking
- As applicable to the supplied configuration and market
- Certificate reference
- Available on request; configuration dependent
| Maximum clear openingA design envelope rather than a combination: no single telescopic configuration reaches the maximum opening, leaf size and weight at once. | Up to 18,000 mm |
|---|---|
| Maximum leaf width | Up to 9,000 mm per telescopic leaf |
| Maximum leaf height | Up to 2,500 mm |
| Maximum leaf weightWith the operator, this is what sizes the drive. | Up to 1,500 kg per leaf |
| Side-run or swing room required | Approximately 50–60% of the clear opening, depending on the telescopic configuration |
| Travel speed | Up to 10 m/min |
|---|---|
| Opening time for full travelSet by the clear opening, the number of leaves, the leaf weight, the operator configuration and its acceleration and deceleration, so no single figure covers every installation. | Application dependent |
| Rated daily cycles | Up to 300 cycles/day |
| Frame section | Heavy-duty MS structural steel section |
|---|---|
| Infill | MS, GI, SS or aluminium, and customised infill options |
| Running gearWheels, rollers, cantilever carriage or hinges. | Heavy-duty guide rollers and telescopic carriage system |
| Ground arrangementTracked, trackless or cantilever. | Tracked telescopic or trackless configuration available, depending on the design |
| Posts and foundations | Site-specific structural design |
| Finish and colour | Powder coated, PU painted or hot-dip galvanized options |
| Operator type | Rack-and-pinion geared operator |
|---|---|
| Rated motor powerSelected per gate rather than fixed across the range. | 0.75–1.5 kW, depending on gate size, weight and number of leaves |
| Supply voltage | 230 V AC single phase, or 415 V AC three phase |
| Duty rating | Heavy-duty, intensive use |
| Manual override | Key-operated emergency manual release |
| Control system | Microprocessor-based electronic control panel |
|---|---|
| Activation devices | Remote control, push button, key switch, RFID or access control, and loop detector |
| Travel limit setting | Electronic or magnetic limit system, depending on the operator |
| InterfacesAccess control, traffic lights, alarm panel, interlocks. | Access control, traffic lights, interlocks, and external control systems |
| Photocells | Dual safety photocells with presence detection |
|---|---|
| Safety edge | Sensitive safety edge where required |
| Obstruction detection | Electronic obstruction detection with automatic stop and reverse |
| Operating force limitation | Designed and tested according to applicable powered-gate safety requirements |
| Manual release | Emergency manual release |
| Warning light and audible warning | Flashing warning light; audible warning optional where the application requires it |
| Product standard | Designed with reference to applicable standards for powered gates |
|---|---|
| Conformity marking | As applicable to the supplied configuration and market |
| Certificate reference | Available on request; configuration dependent |
Final specification depends on door dimensions, configuration, operating environment and project requirements.
FAQ
Questions we are actually asked
- How much space is needed beside a sliding gate?
- A single leaf needs roughly its own width of clear boundary to retract into, plus the operator. Where that does not exist, a telescopic arrangement halves it and a swing or retractable gate may suit better.
- Tracked or cantilever?
- Cantilever where the driveway must stay clear for drainage, silt or heavy loading. Tracked where the approach is level and well drained and the leaf is long and heavy.
- What happens if the power fails?
- A key-operated manual release disengages the drive so the leaf can be moved by hand. Battery backup can be specified where the entrance must keep operating.
- How is the gate stopped from closing on a vehicle?
- Photocells across the opening, a safety edge on the leading edge, obstruction detection in the operator, and ground loops that confirm the vehicle has cleared before closing.
Engineering enquiry
Get a specification for Telescopic Sliding Gates.
Five answers about the opening are usually enough for us to come back with a configuration and a price.
