Why choose a rigid insulated door over a fabric one?

Two reasons, and both have to be real to justify the cost. Insulation, where the opening separates two temperatures and a curtain will not hold the difference. And rigidity, on a tall external elevation where the leaf has to carry load.

Is it slower than a roll-up door?

Yes, and deliberately. Published opening is approximately 1.2–1.5 m/s with closing at approximately 0.6 m/s, both subject to configuration. A heavier leaf has to be decelerated under control rather than dropped.

What opening sizes are possible?

Up to 5,000 mm wide and up to 7,500 mm high, subject to configuration — the tallest published figure in this family after the fold-up door.

How is it different from the spiral door?

Both use rigid insulated panels. The spiral guides the leaf into a spiral so the panels never touch, and is published faster and to a slightly greater width. This configuration lifts the panels vertically and is published taller, to 7,500 mm. Which one fits usually comes down to the head detail and whether height or speed is the binding requirement.

What wind loading can it take?

It is engineered for external applications, against the conditions the elevation actually sees. We confirm that per opening rather than publishing one figure for every site.

What safety systems are fitted?

A photocell, a safety edge and an emergency stop. Activation is by radar, infrared or push button, with the whole cycle managed by a PLC with an inverter and encoder.

What information do you need to quote?

Clear width and height of the opening, the headroom and side room available, roughly how many cycles a day it will take, whether it is internal or external, and what the two sides of the opening have to keep different from each other. Five answers and a photograph are usually enough for a configuration and a price.

High Speed Doors/Rigid Panel High Speed Doors

High Speed Rigid / Insulated Door

Name: Standard Automatic Solutions Pvt. Ltd.
Address: 215, Business Square, Opp. DSK Ranwara, Bavdhan, Pune, Maharashtra, 411021, IN
Telephone: +91 8888 100 280

A rigid insulated high speed door for openings that need more structural rigidity and thermal separation than a fabric curtain can give.

Request a Quote Talk to an Engineer

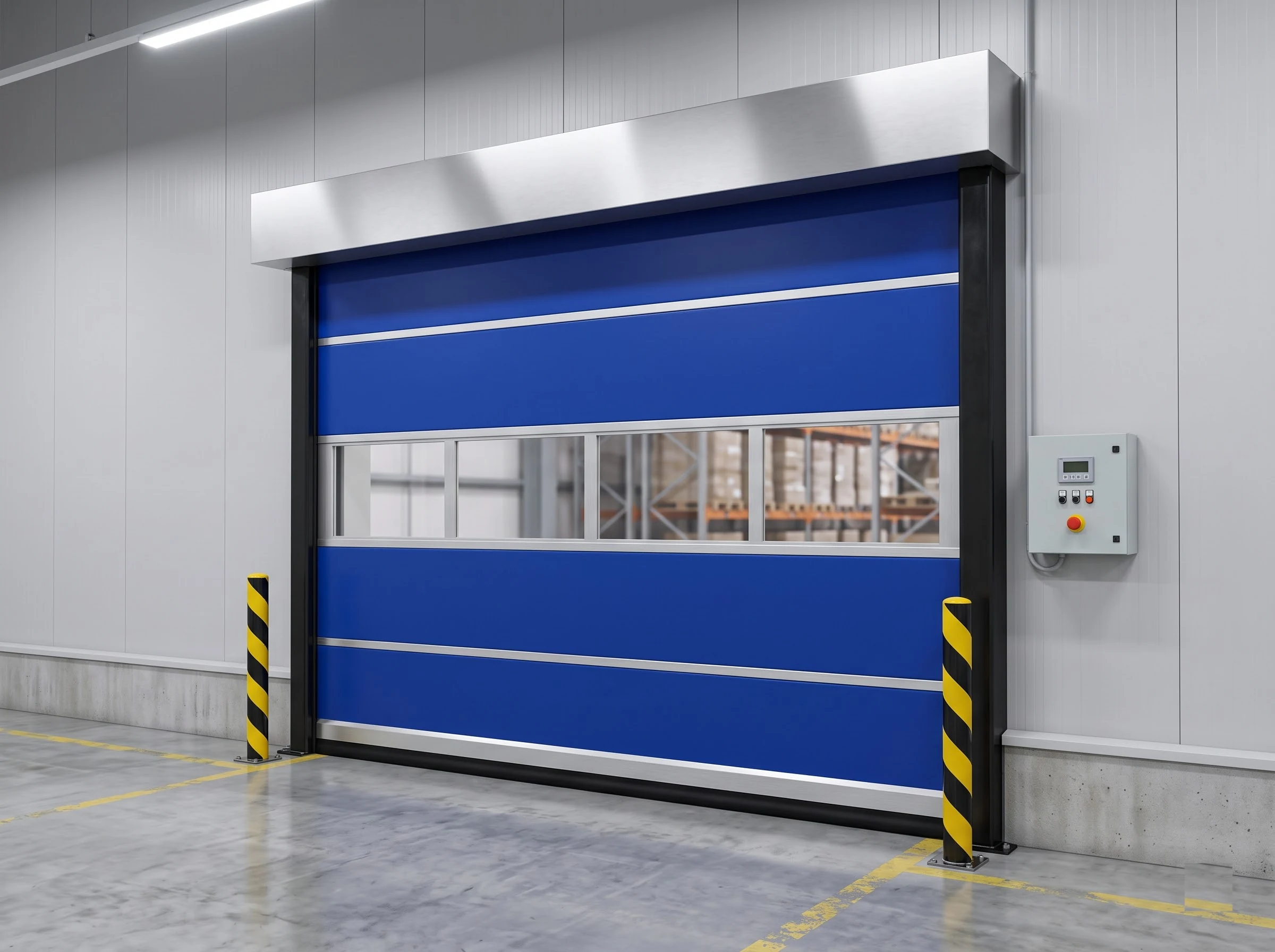

A royal-blue high speed rigid insulated door lowered to about two-thirds across a wide internal warehouse opening, its stacked double-skin panels separated by slim aluminium joint profiles with a full-width glazed row at mid height, running in black guide columns beneath a plain brushed stainless hood, the lit hall visible beneath the aluminium bottom rail, a wall control station with display and red emergency stop beside the guide and yellow-and-black bollards on the polished concrete floor

High Speed Doors

Product visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.

Key specifications

Maximum size: 5,000 × 7,500 mm
Opening speed: Approx. 1.2–1.5 m/s

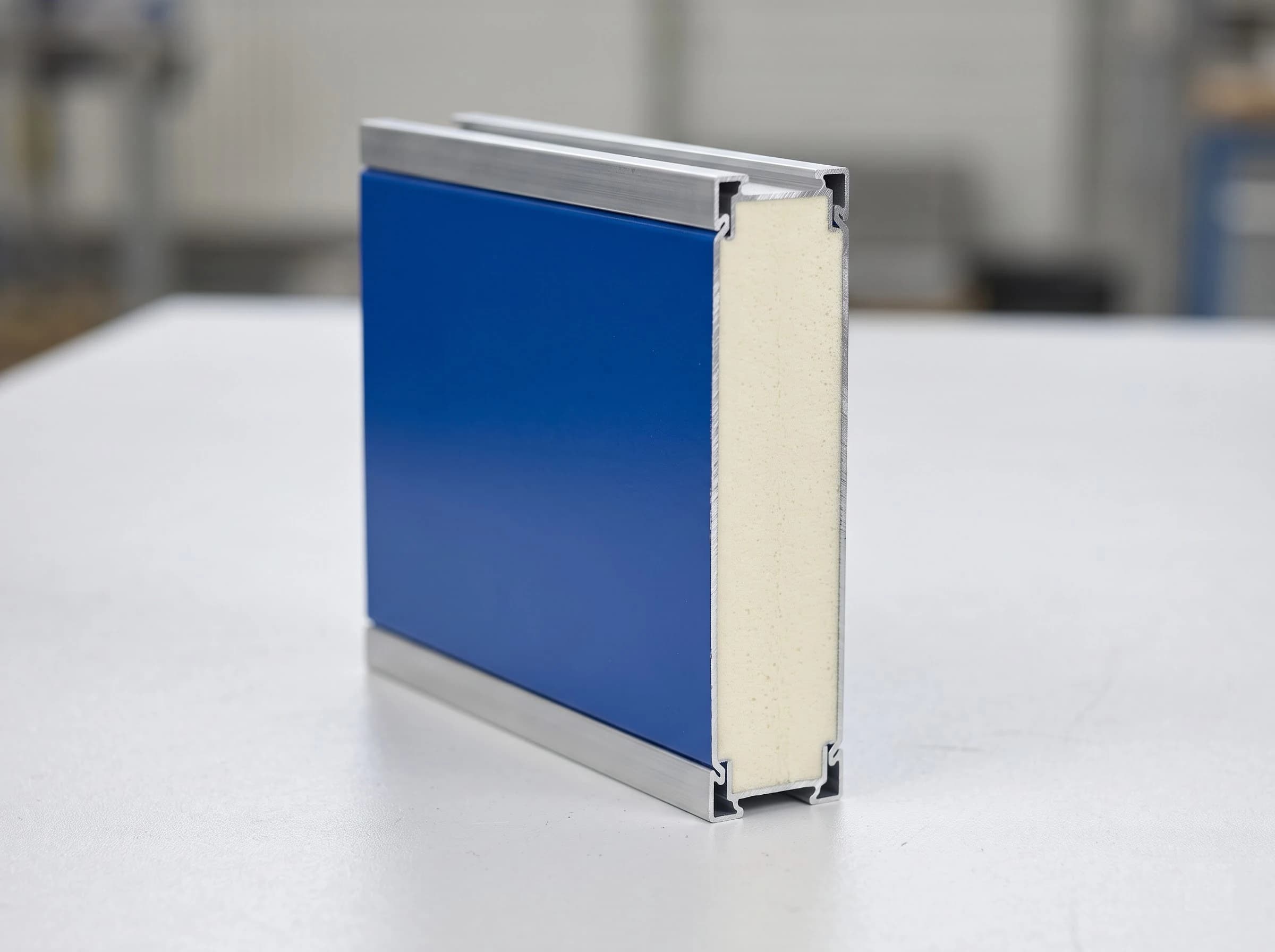

Panel: Double-skin insulated, 40–43 mm
Control: PLC / inverter / encoder

* Final specification depends on door dimensions, configuration, operating environment and project requirements.

01Overview

About High Speed Rigid / Insulated Door

There is a point at which a fabric curtain stops being the right answer. An opening that has to hold a genuine temperature difference, or that sits on an exposed elevation and has to carry the load, needs a leaf with structure in it. This configuration uses double-skin insulated rigid panels in aluminium alloy or engineered metal, 40–43 mm thick, with a PU or thermal insulation core.

The trade is speed. Published opening is approximately 1.2–1.5 m/s and closing approximately 0.6 m/s — quick, but not roll-up quick, because a heavier leaf has to be accelerated and decelerated under control rather than snatched. PLC, inverter and encoder control is what makes that possible without punishing the structure at either end of travel.

Where the spiral configuration guides its leaf into a spiral to keep the panels apart, this door lifts them vertically. It is the more direct arrangement, published to a greater height — 7,500 mm — and it is normally the answer where insulation and height matter more than the very top of the speed range.

Operating method

01

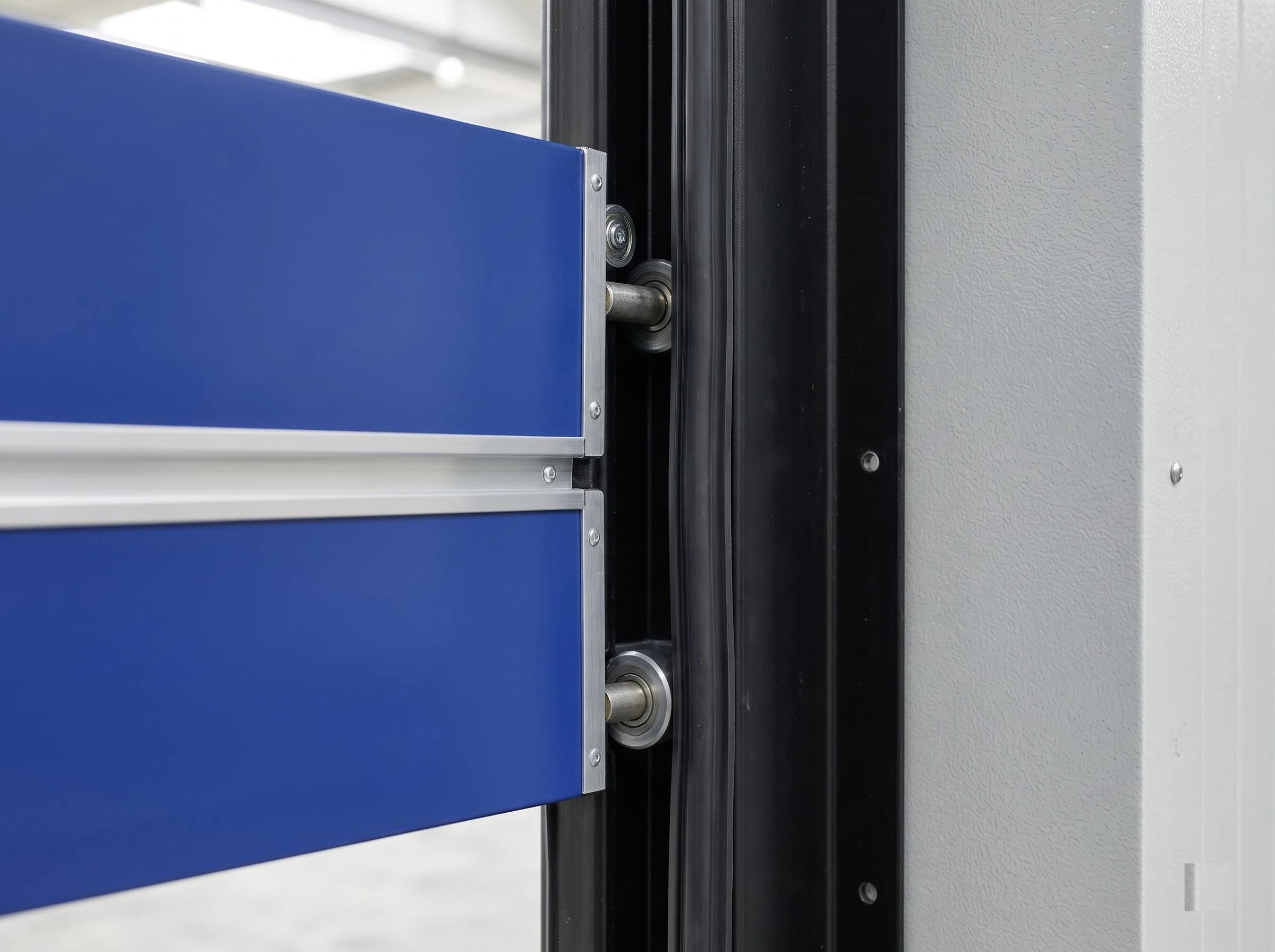

Double-skin insulated rigid panels are carried in side guides and driven vertically.
02
A PLC with an inverter and encoder ramps the panel up to speed and back down, so a heavier leaf is not snatched at either end of travel.
03
Radar, an infrared device or a push button opens the door on approach.
04
A photocell, a safety edge and an emergency stop govern the closing cycle.
05
Perimeter sealing between the panel and the opening maintains the separation the insulation is there to support.

03Variants

Available configurations

The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.

External configuration
Engineered for external applications, where the leaf has to carry the elevation load as well as cycle quickly.
Thermal separation configuration
For internal openings between areas held at different temperatures, where a fabric curtain will not hold the differential.

09Selection guide

Which configuration is right for your application?

What the decision actually turns on. If your situation is not listed, describe the opening and we will work it through with you.

The opening is used continuously through the shift: Size on duty cycle first. An operator chosen only for leaf weight will overheat long before it fails mechanically.
The opening separates two environments: State the differential — temperature, dust, insects, noise or pressure. It decides curtain or panel construction and the sealing requirement.
The opening is on an external elevation: Wind exposure sets the class the assembly must be built to, and rules out lighter constructions regardless of opening size.
The opening has to hold a real temperature difference: A fabric curtain will not. An insulated rigid panel with a PU or thermal core will, at a slower closing cycle.
The opening is tall and on an external elevation: This configuration is engineered for external applications and published to 7,500 mm, the taller of the two rigid options.
Cycle time is the single most important requirement: Look at the spiral configuration, published at up to 2.5 m/s, or at a fabric door if insulation is not actually needed.
The room is a freezer or cold store: The cold storage configuration is the more specific answer — heated guides and a cold-store bottom seal are not the same thing as an insulated panel.

10Gallery

High Speed Rigid / Insulated Door in detail

04Technical specifications

Specification, features and ordering

Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.

Dimensions3 fields

Maximum width: Up to 5,000 mm
Maximum height: Up to 7,500 mm
Panel thickness: 40–43 mm

Performance3 fields

Opening speed: Approximately 1.2–1.5 m/s
Closing speed: Approximately 0.6 m/s
Wind resistance: Engineered for external applications

Construction4 fields

Door type: High Speed Rigid / Insulated

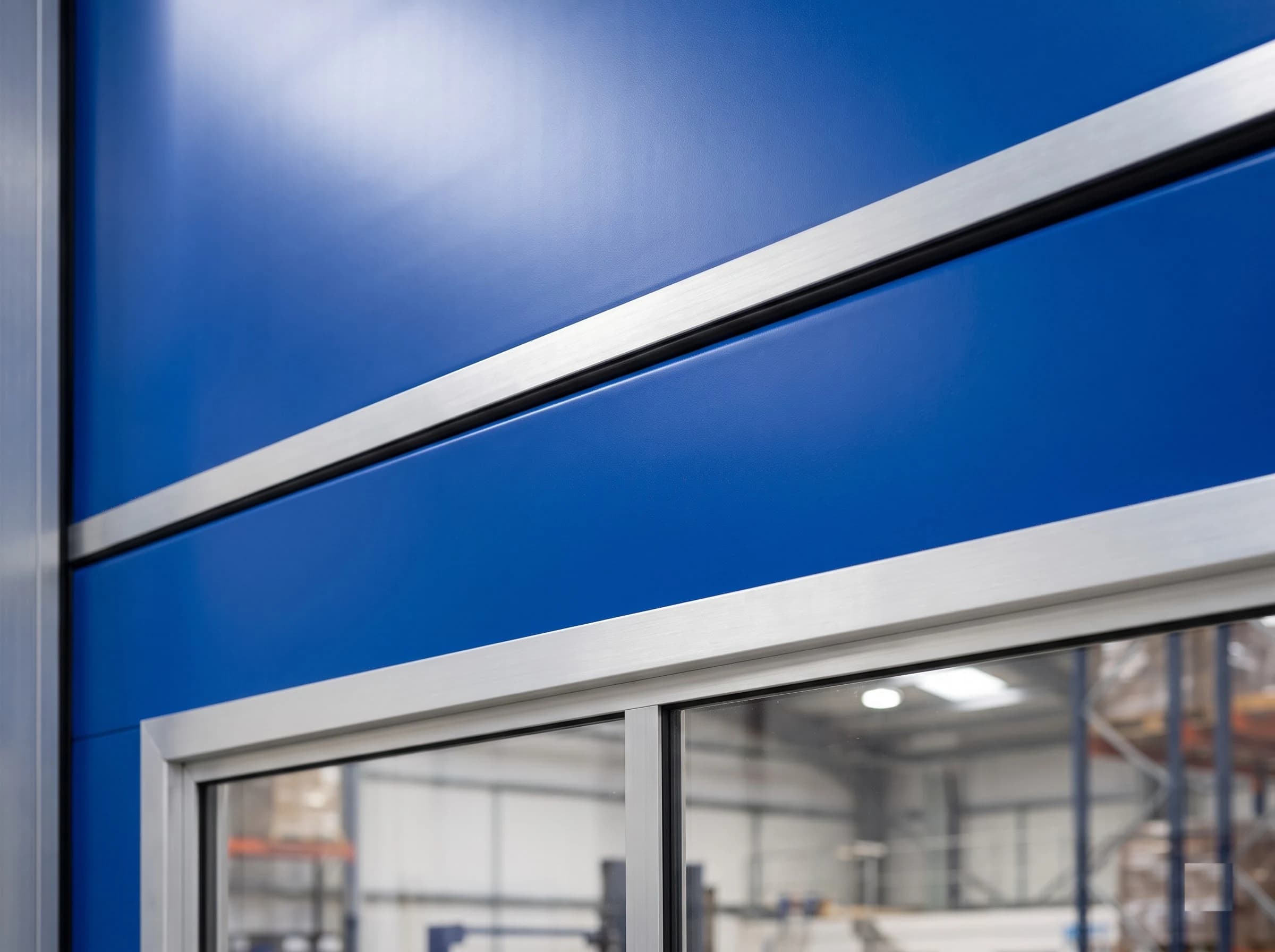

Construction: Double-skin insulated rigid panels
Panel material: Aluminium alloy / engineered metal panel
Insulation: PU / thermal insulation core

Drive & control3 fields

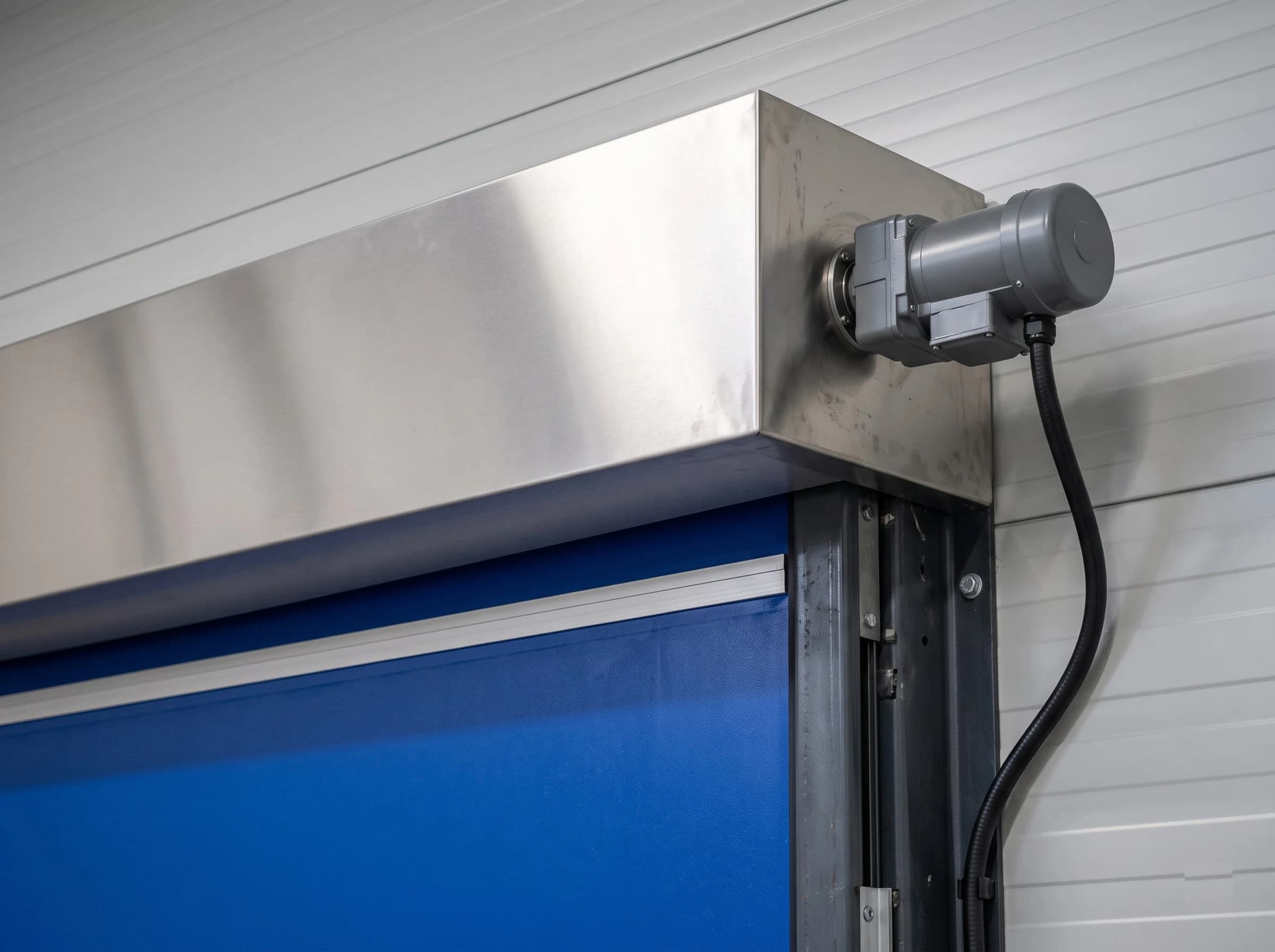

Drive: Industrial geared motor
Control: PLC / inverter / encoder
Activation: Radar / infrared / push button

Safety1 fields

Safety: Photocell / safety edge / emergency stop

Options1 fields

Vision: Optional

Dimensions
Maximum widthClear opening between finished reveals.	Up to 5,000 mm
Maximum height	Up to 7,500 mm
Panel thickness	40–43 mm

Performance
Opening speed	Approximately 1.2–1.5 m/s
Closing speed	Approximately 0.6 m/s
Wind resistance	Engineered for external applications

Construction
Door type	High Speed Rigid / Insulated
Construction	Double-skin insulated rigid panels
Panel material	Aluminium alloy / engineered metal panel
Insulation	PU / thermal insulation core

Drive & control
Drive	Industrial geared motor
Control	PLC / inverter / encoder
Activation	Radar / infrared / push button

Safety
Safety	Photocell / safety edge / emergency stop

Options
Vision	Optional

Final specification depends on door dimensions, configuration, operating environment and project requirements.

Often specified alongside

All High Speed Doors

High Speed Doors

High Speed Spiral Door

Insulated rigid aluminium panels carried into a spiral track above the opening, up to 5,000–6,000 mm each way, opening at up to 2.5 m/s.

2 configurations

Explore product

High Speed Doors

High Speed Fold-Up Door

Reinforced PVC-coated curtain folding into a stack above the opening, up to 5,000 × 8,000 mm, at 0.8–2.5 m/s in both directions.

3 configurations

Explore product

Industrial Doors

Industrial Sectional Overhead Doors

Insulated sectional doors in aluminium or galvanized steel with a PUF core, 40–50 mm thick, spanning up to 10 m, in manual and motorised configurations.

6 configurations

Explore product

FAQ

Questions we are actually asked

Why choose a rigid insulated door over a fabric one?: Two reasons, and both have to be real to justify the cost. Insulation, where the opening separates two temperatures and a curtain will not hold the difference. And rigidity, on a tall external elevation where the leaf has to carry load.
Is it slower than a roll-up door?: Yes, and deliberately. Published opening is approximately 1.2–1.5 m/s with closing at approximately 0.6 m/s, both subject to configuration. A heavier leaf has to be decelerated under control rather than dropped.
What opening sizes are possible?: Up to 5,000 mm wide and up to 7,500 mm high, subject to configuration — the tallest published figure in this family after the fold-up door.
How is it different from the spiral door?: Both use rigid insulated panels. The spiral guides the leaf into a spiral so the panels never touch, and is published faster and to a slightly greater width. This configuration lifts the panels vertically and is published taller, to 7,500 mm. Which one fits usually comes down to the head detail and whether height or speed is the binding requirement.
What wind loading can it take?: It is engineered for external applications, against the conditions the elevation actually sees. We confirm that per opening rather than publishing one figure for every site.
What safety systems are fitted?: A photocell, a safety edge and an emergency stop. Activation is by radar, infrared or push button, with the whole cycle managed by a PLC with an inverter and encoder.
What information do you need to quote?: Clear width and height of the opening, the headroom and side room available, roughly how many cycles a day it will take, whether it is internal or external, and what the two sides of the opening have to keep different from each other. Five answers and a photograph are usually enough for a configuration and a price.
