What is a spiral door and how is it different?

The rigid leaf is guided into a spiral above the opening instead of being stacked or wound, so the panels never rest on one another. That is what lets a rigid insulated door run at up to 2.5 m/s without wearing its own panel faces.

Where is it suitable?

External factory entrances, warehouses, logistics facilities, industrial buildings, high-traffic entrances and temperature-controlled areas — openings that need a rigid, insulated leaf and cannot afford a slow one.

What opening sizes are possible?

Up to 5,000–6,000 mm wide and up to 5,000–6,000 mm high, subject to configuration. As with any rigid high speed door the achievable size and the achievable speed are related, so both are confirmed together for your opening.

What wind loading can it take?

Wind resistance is configuration dependent and engineered for the applicable wind conditions. We do not publish a single class, because a spiral door is engineered around its opening and one figure would misrepresent every other installation.

How well does it insulate?

The leaf is an insulated rigid aluminium panel of approximately 40–43 mm with a PU or thermal insulation configuration. Thermal performance itself is configuration dependent — tell us the differential the opening has to hold and we will confirm the configuration that meets it.

What safety systems are fitted?

A light curtain, photocells and a safety edge, with a manual release for operation during a power failure. A rigid leaf makes presence detection more important rather than less, which is why the light curtain is part of the specification.

Can it integrate with site access control?

Yes. The drive is frequency-controlled and takes activation from radar, a photocell, a loop detector or a push button, and a release signal from an access control system on a volt-free contact.

What information do you need to quote?

Clear width and height of the opening, the headroom and side room available, roughly how many cycles a day it will take, whether it is internal or external, and what the two sides of the opening have to keep different from each other. Five answers and a photograph are usually enough for a configuration and a price.

High Speed Doors/Spiral High Speed Doors

High Speed Spiral Door

Name: Standard Automatic Solutions Pvt. Ltd.
Address: 215, Business Square, Opp. DSK Ranwara, Bavdhan, Pune, Maharashtra, 411021, IN
Telephone: +91 8888 100 280

A high speed rigid industrial door on a spiral-guided system, for demanding internal and external openings.

Request a Quote Talk to an Engineer

A silver high speed spiral door lowered to about two-thirds across the loading opening of a light-grey clad factory, its rigid aluminium panels alternating solid and glazed rows between silver guide columns beneath a plain brushed stainless hood, the lit warehouse showing beneath the black safety edge, a wall control station with display and red emergency stop beside the guide and yellow-and-black bollards on the concrete apron

High Speed Doors

Product visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.

Key specifications

Maximum size: 5,000–6,000 mm each way
Opening speed: Up to 2.5 m/s
Panel: Insulated rigid aluminium, approx. 40–43 mm
Guide system: Spiral / high-speed track

* Final specification depends on door dimensions, configuration, operating environment and project requirements.

01Overview

About High Speed Spiral Door

A spiral door answers a specific problem: an opening that needs a rigid, insulated leaf but cannot accept the cycle time that usually comes with one. The panels are guided into a spiral above the opening rather than stacked or wound, so the leaf never rests on itself. Nothing rubs, and the door can run at up to 2.5 m/s — flexible-door speed from a rigid door.

The leaf is insulated rigid aluminium panelling, approximately 40–43 mm thick, with the insulation configuration selected against the thermal requirement. That is what makes it viable on an external factory entrance or a temperature-controlled area, where a fabric curtain would be doing neither job well.

Wind resistance and thermal performance are both configuration dependent and engineered against the conditions the opening actually sees. That is deliberate rather than evasive: a spiral door is specified around its opening, and quoting a single class for every installation would misrepresent how the type is engineered.

Operating method

01

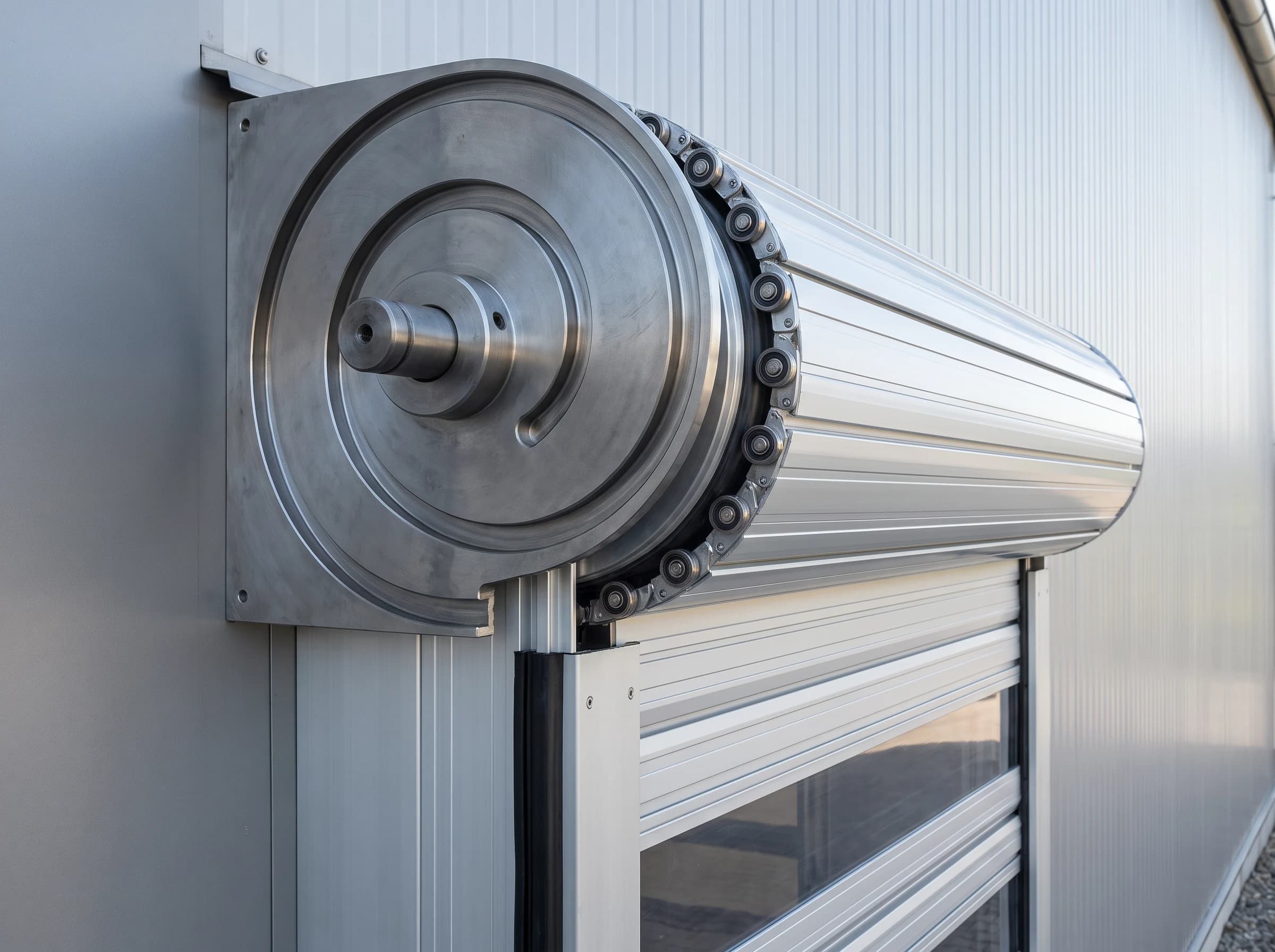

Insulated rigid aluminium panels run in a spiral high-speed track above the opening, so the leaf never rests on itself.
02
A high-cycle industrial motor under frequency control accelerates and decelerates the leaf.
03
Radar, a photocell, a loop detector or a push button opens the door on approach.
04

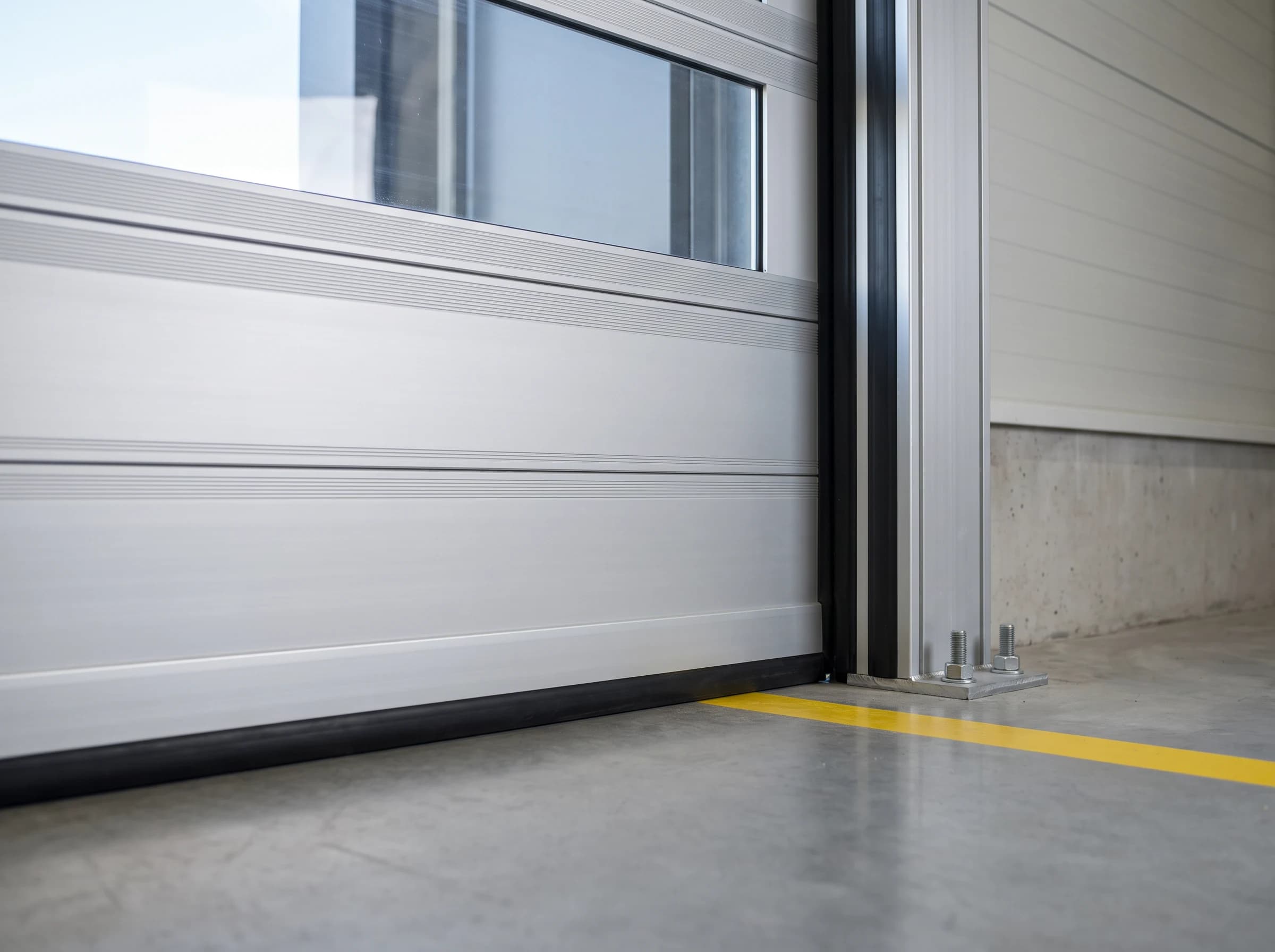

A light curtain, photocells and a safety edge govern closing.
05
A manual release allows the door to be operated during a power failure.

03Variants

Available configurations

The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.

Insulated panel configuration
PU or thermal insulation configuration in the panel, selected against the thermal requirement of the opening.

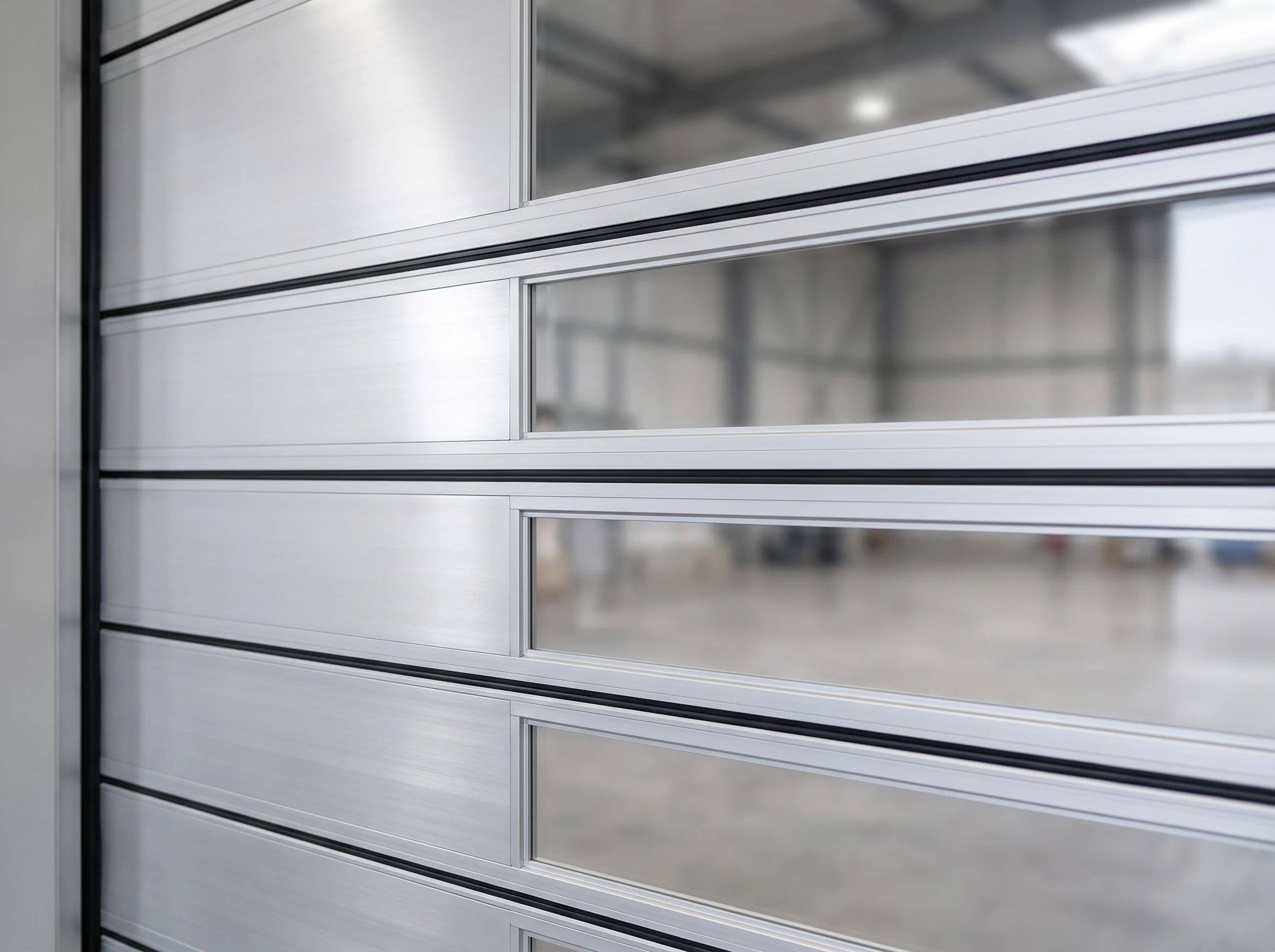

Transparent panel configuration
Transparent panel sections in the leaf, so a driver sees the far side of the opening before the door has finished travelling.

09Selection guide

Which configuration is right for your application?

What the decision actually turns on. If your situation is not listed, describe the opening and we will work it through with you.

The opening is used continuously through the shift: Size on duty cycle first. An operator chosen only for leaf weight will overheat long before it fails mechanically.
The opening separates two environments: State the differential — temperature, dust, insects, noise or pressure. It decides curtain or panel construction and the sealing requirement.
The opening is on an external elevation: Wind exposure sets the class the assembly must be built to, and rules out lighter constructions regardless of opening size.
The opening needs a rigid leaf but cannot lose the cycle time: This is what the spiral geometry exists for. Up to 2.5 m/s from an insulated aluminium panel is not available from a conventional rigid door.
Panel finish matters and the door cycles constantly: The spiral keeps the panels apart in the stored position, so the leaf is not worn by the door simply operating.
The opening serves a temperature-controlled area: State the differential. Thermal performance is configuration dependent and is engineered to it rather than assumed.
The head detail is shallow: A spiral track is a deeper head detail than a drum of the same span. If headroom is the binding constraint, look at the fold-up configuration instead.

10Gallery

High Speed Spiral Door in detail

04Technical specifications

Specification, features and ordering

Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.

Dimensions3 fields

Maximum width: Up to 5,000–6,000 mm
Maximum height: Up to 5,000–6,000 mm
Panel thickness: Approximately 40–43 mm

Performance4 fields

Opening speed: Up to 2.5 m/s
Closing speed: Approximately 0.5 m/s
Wind resistance: Configuration dependent; engineered for applicable wind conditions
Thermal performance: Configuration dependent

Construction4 fields

Door type: High Speed Spiral Door
Door leaf: Insulated rigid aluminium panels
Insulation: PU / thermal insulation configuration
Guide system: Spiral / high-speed track

Drive & control3 fields

Drive: High-cycle industrial motor
Control: Frequency-controlled
Activation: Radar / photocell / loop / push button

Safety2 fields

Safety: Light curtain / photocell / safety edge
Emergency operation: Manual release

Options1 fields

Vision: Optional transparent panel configuration

Dimensions
Maximum widthClear opening between finished reveals.	Up to 5,000–6,000 mm
Maximum height	Up to 5,000–6,000 mm
Panel thickness	Approximately 40–43 mm

Performance
Opening speed	Up to 2.5 m/s
Closing speed	Approximately 0.5 m/s
Wind resistance	Configuration dependent; engineered for applicable wind conditions
Thermal performance	Configuration dependent

Construction
Door type	High Speed Spiral Door
Door leaf	Insulated rigid aluminium panels
Insulation	PU / thermal insulation configuration
Guide systemThe leaf follows a spiral above the opening, so the panels do not rest on one another.	Spiral / high-speed track

Drive & control
Drive	High-cycle industrial motor
Control	Frequency-controlled
Activation	Radar / photocell / loop / push button

Safety
Safety	Light curtain / photocell / safety edge
Emergency operation	Manual release

Options
Vision	Optional transparent panel configuration

Final specification depends on door dimensions, configuration, operating environment and project requirements.
