Rolling Grille
Maximum visibility and airflow, on a curtain that still locks.
Rolling ShuttersProduct visualisations. These images are built to a written specification of this door type rather than photographed on site, and they are replaced as installation photography becomes available. They illustrate construction and arrangement; the figures that matter are in the specification below.
Key specifications
- Constructions
- Link, lattice, open security, bar/rod
- Bar diameter
- Approx. 6–8 mm class, design dependent
- Opening spacing
- Approx. 35–150 mm, pattern dependent
- Cycle rating
- Configuration dependent
* Final specification depends on door dimensions, configuration, operating environment and project requirements.
01Overview
About Rolling Grille

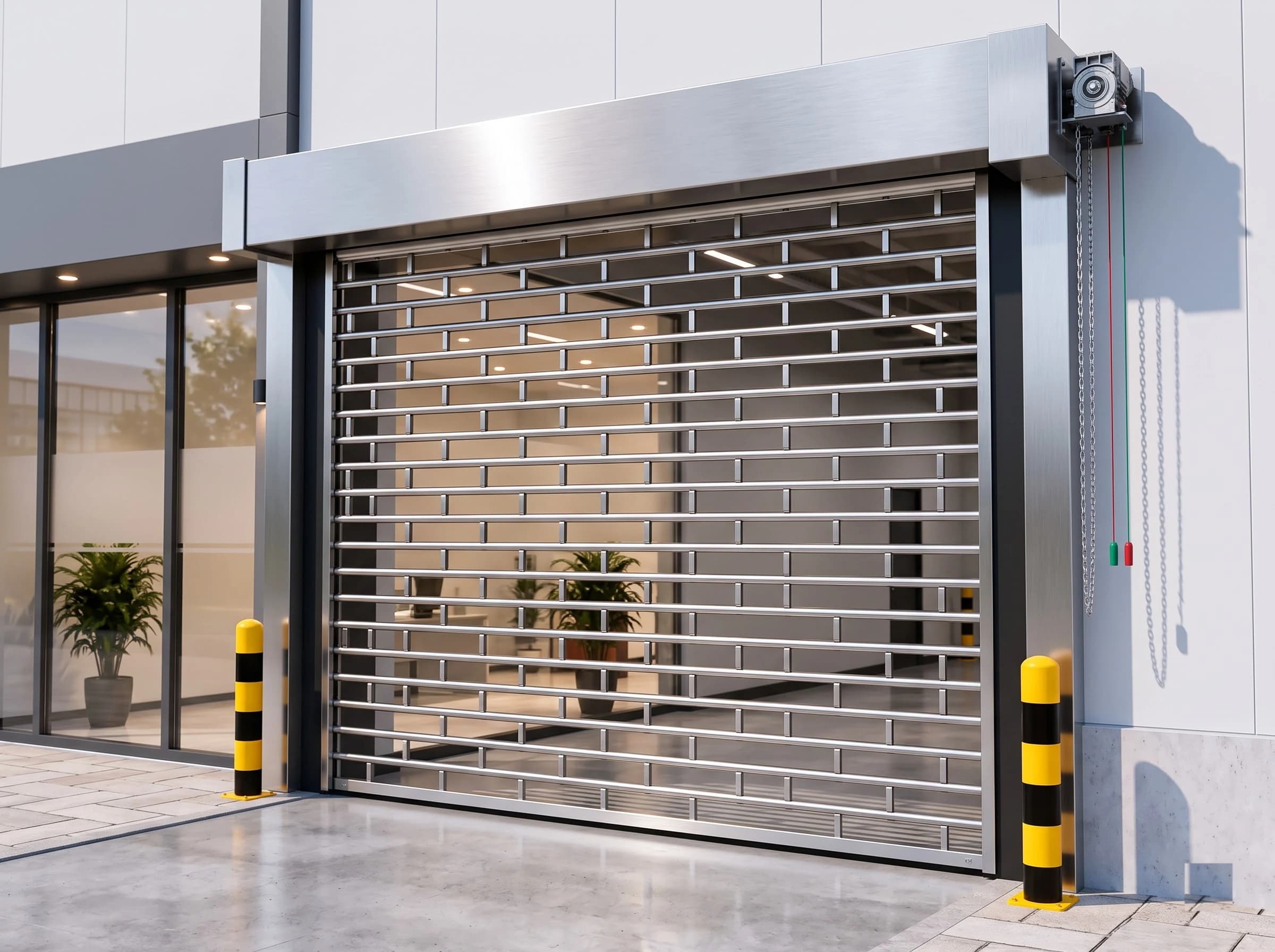

A rolling grille is the open end of this family. Rod, bar and link construction leaves most of the opening genuinely open, so a mall unit stays visible and a parking deck stays ventilated while the opening is secured overnight.
Operating method
03Variants
Available configurations
The same product, built for a different job. Where a specification depends on opening dimensions, selected profile, operating duty or site conditions, the final configuration is confirmed during technical assessment.
Steel rolling grille

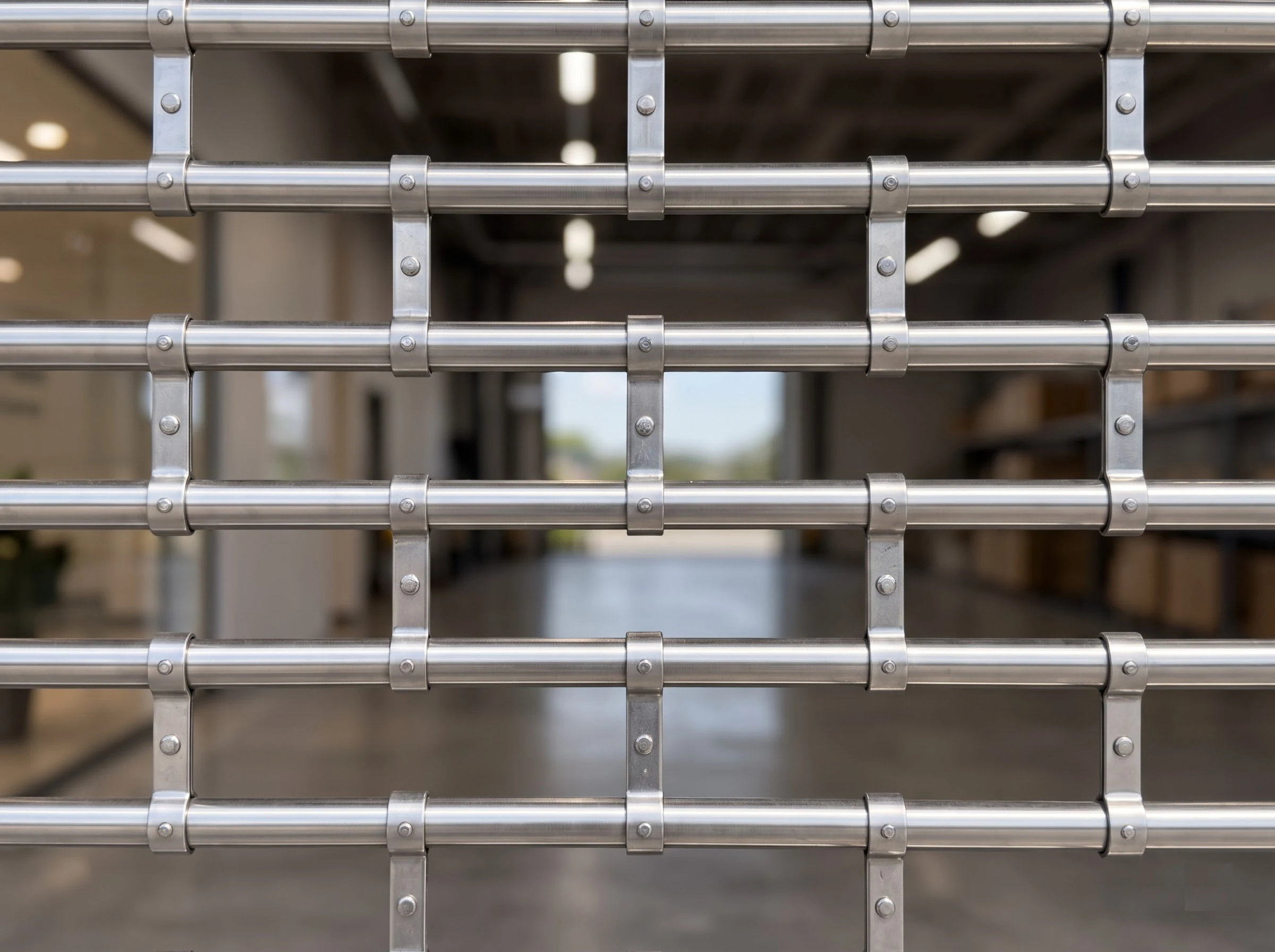

Steel rod, bar and link construction. Bar diameter in approximately the 6 to 8 mm class and opening spacing approximately 35 to 150 mm, both depending on the pattern selected.
Aluminium rolling grille
Aluminium link or lattice construction, lighter and corrosion resistant, for retail and commercial entrances.
Stainless steel rolling grille
Stainless construction for high-corrosion, coastal and hygiene-sensitive installations.
High-cycle security grille
Specified for openings operated frequently through the day, with the barrel, bearings and drive selected against the duty. Cycle rating is confirmed for the supplied system rather than published as a headline.
10Gallery
Rolling Grille in detail
04Technical specifications
Specification, features and ordering
Technical data is shown first; features, applications, compatibility, installation, safety, ordering and downloads are a click away.
Identification & material5 fields
- Product family
- Rolling Grille
- Material
- Steel / aluminium / stainless steel
- Material grade
- Steel MS or GI as selected; stainless SS304 or SS316; aluminium profile dependent
- Coating
- Paint, galvanized, powder coating, anodising or brushed stainless depending on material
- Surface treatment
- Powder coating, anodising or brushed stainless depending on material
Curtain10 fields
- Construction
- Link, lattice, open security or bar-and-rod construction
- Profile
- Grille pattern selected according to the application
- Profile height
- Pattern dependent
- Bar / rod diameter
- Approximately 6–8 mm class depending on design
- End lock
- Configuration dependent
- Slat weight
- Not applicable to a grille; weight is calculated from the selected construction
- Curtain weight
- Calculated from the selected grille construction and opening dimensions
- Opening spacing
- Approximately 35–150 mm depending on grille pattern
- Link dimensions
- Configuration dependent
- Grille pitch
- Pattern dependent
Opening4 fields
- Maximum width
- Custom size; configuration dependent
- Maximum height
- Custom size; configuration dependent
- Maximum area
- Configuration dependent
- Intermediate mullion
- Available for large or multiple curtain arrangements
Guide7 fields
- Guide material
- Steel, aluminium or stainless steel according to the product
- Guide width
- 65 / 75 / 100 mm class depending on opening size
- Guide depth
- Configuration dependent; conventional systems approximately 65–100 mm class
- Guide thickness
- 3.15 mm class conventional guide construction
- Curtain engagement
- 40–60 mm depending on opening width
- Wind lock
- Optional; required where wind exposure or design demands it
- Guide seal
- Optional; configuration dependent
Barrel & shaft5 fields
- Barrel type
- Barrel and bearings specified against duty on the high-cycle configuration
- Shaft diameter
- Configuration dependent
- Shaft material
- Steel
- Bracket
- Configuration dependent
- Hood / headbox
- Hood or headbox to suit the construction; size configuration dependent
Bottom4 fields

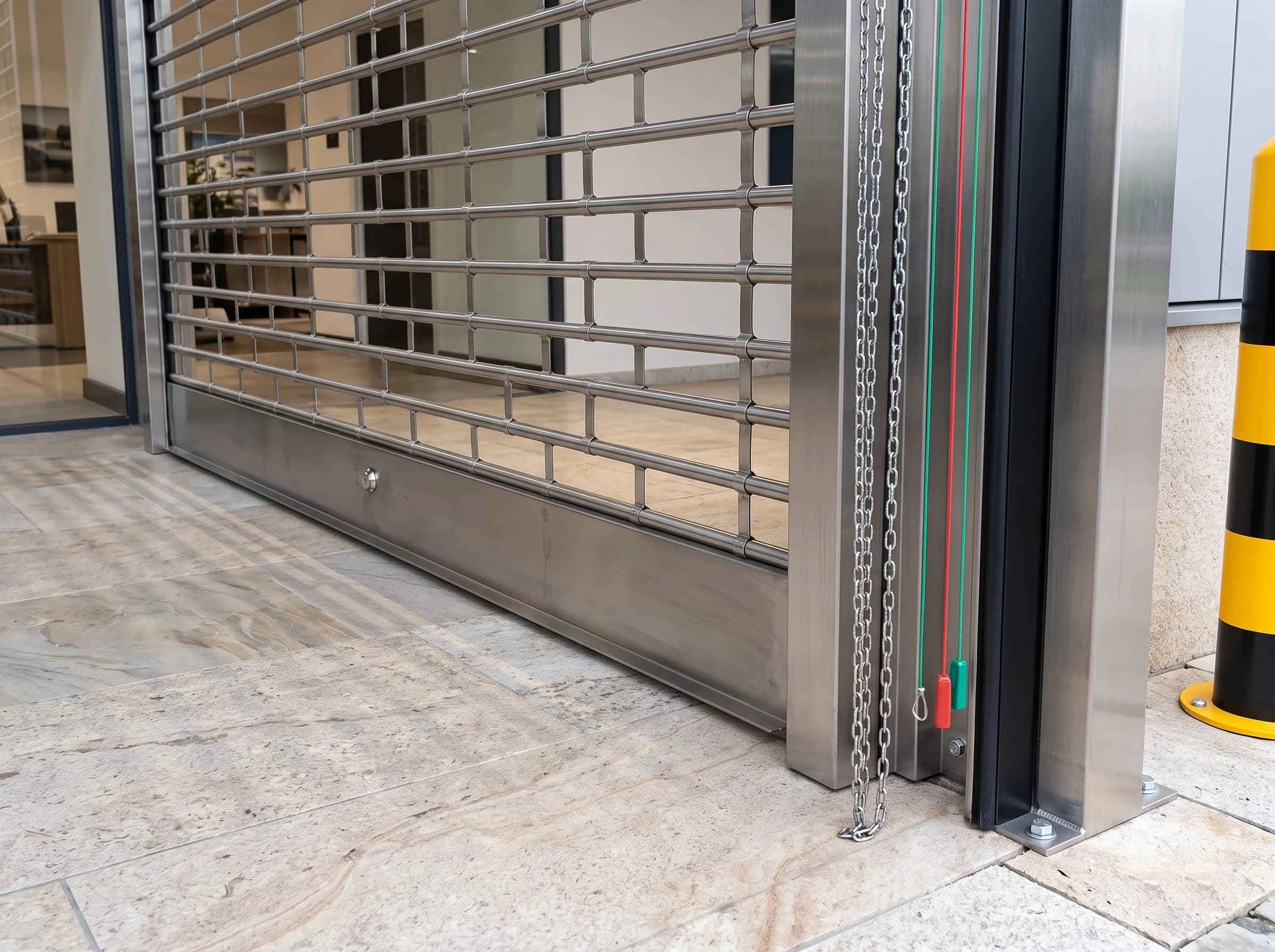

- Bottom profile
- Bottom rail appropriate to the grille construction
- Bottom bar dimensions
- Configuration dependent
- Bottom seal
- Optional rubber or EPDM seal where required
- Lock
- Central or side locking according to configuration
Operation & control6 fields

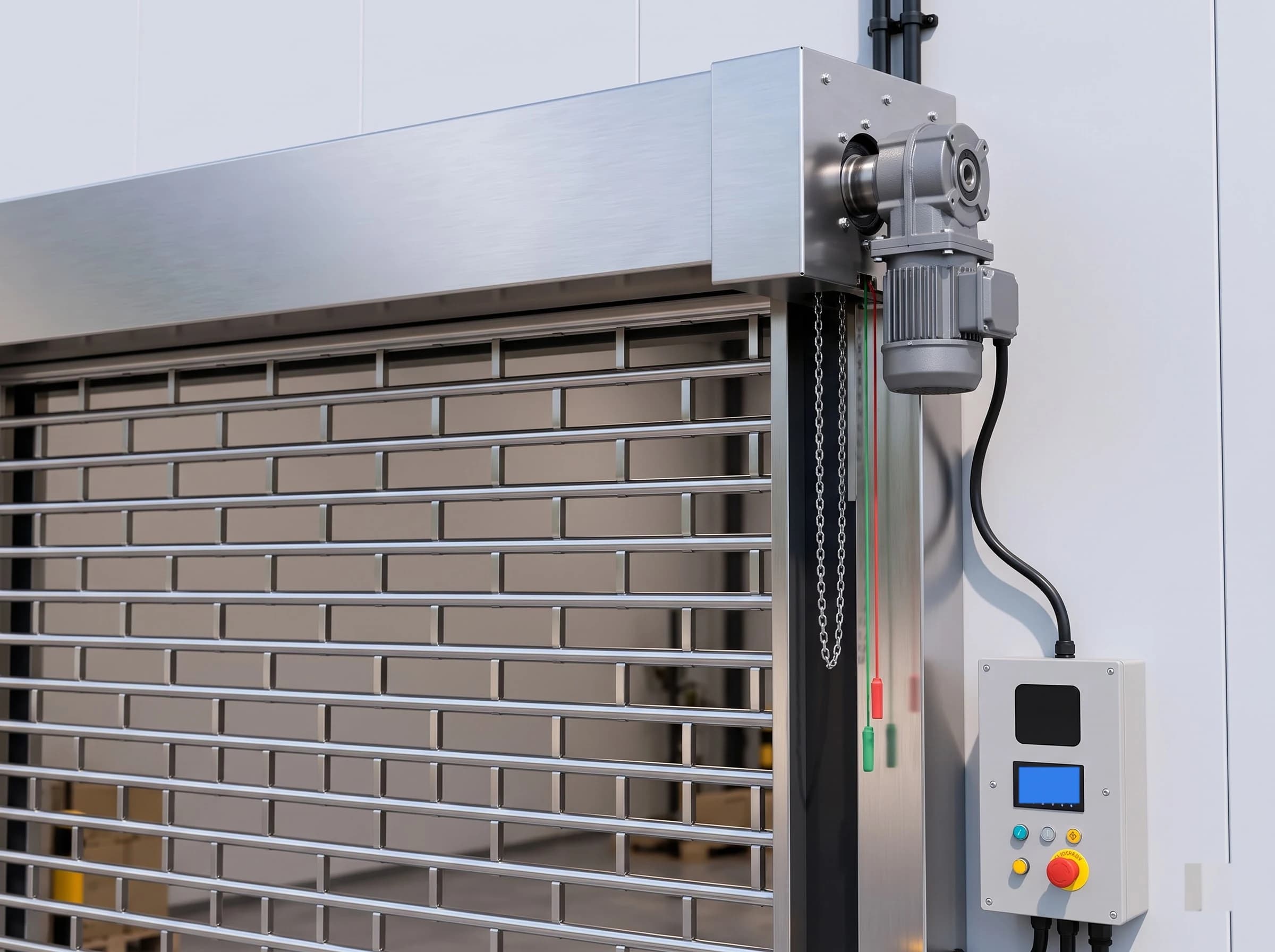

- Operation
- Manual, gear operated or motorised; high-cycle configuration available
- Motor options
- Tubular, central or side-mounted motor depending on shutter size and configuration
- Motor rating
- Selected according to curtain weight, opening size, barrel and duty cycle
- Supply voltage
- 230 V AC single-phase or 415 V AC three-phase depending on the selected motor
- Emergency manual override
- Manual override available on powered configurations
- Controls
- Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible
Performance7 fields
- Wind resistance
- Configuration dependent
- Fire rating
- Not fire-rated unless supplied as a certified fire-rated system
- Thermal performance
- Not rated
- Acoustic performance
- Not specifically rated; configuration dependent
- Corrosion resistance
- Depends on the material and finish selected
- Cycle rating
- Product and system dependent; a validated rating is published only for a system actually tested to it
- Opening speed
- Motor and configuration dependent
Safety4 fields
- Safety devices
- Photocell, safety edge and emergency stop available depending on the motor and control configuration
- Anti-drop device
- Available where required; configuration dependent
- Brake
- Motor or gear brake according to the selected operator
- Obstacle detection
- Available with a compatible control and safety system
Finish2 fields
- Finish
- Paint, galvanized, powder coating, anodising or brushed stainless
- Colour
- Standard colours; custom RAL available
Installation4 fields
- Mounting
- Face mounted, between jamb or recessed
- Headroom required
- Survey dependent
- Side room required
- Survey dependent
- Mounting substrate
- Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate
| Product family | Rolling Grille |
|---|---|
| Material | Steel / aluminium / stainless steel |
| Material grade | Steel MS or GI as selected; stainless SS304 or SS316; aluminium profile dependent |
| Coating | Paint, galvanized, powder coating, anodising or brushed stainless depending on material |
| Surface treatment | Powder coating, anodising or brushed stainless depending on material |
| Construction | Link, lattice, open security or bar-and-rod construction |
|---|---|
| Profile | Grille pattern selected according to the application |
| Profile height | Pattern dependent |
| Bar / rod diameter | Approximately 6–8 mm class depending on design |
| End lock | Configuration dependent |
| Slat weight | Not applicable to a grille; weight is calculated from the selected construction |
| Curtain weight | Calculated from the selected grille construction and opening dimensions |
| Opening spacing | Approximately 35–150 mm depending on grille pattern |
| Link dimensions | Configuration dependent |
| Grille pitch | Pattern dependent |
| Maximum width | Custom size; configuration dependent |
|---|---|
| Maximum height | Custom size; configuration dependent |
| Maximum area | Configuration dependent |
| Intermediate mullion | Available for large or multiple curtain arrangements |
| Guide material | Steel, aluminium or stainless steel according to the product |
|---|---|
| Guide width | 65 / 75 / 100 mm class depending on opening size |
| Guide depth | Configuration dependent; conventional systems approximately 65–100 mm class |
| Guide thickness | 3.15 mm class conventional guide construction |
| Curtain engagement | 40–60 mm depending on opening width |
| Wind lock | Optional; required where wind exposure or design demands it |
| Guide seal | Optional; configuration dependent |
| Barrel type | Barrel and bearings specified against duty on the high-cycle configuration |
|---|---|
| Shaft diameter | Configuration dependent |
| Shaft material | Steel |
| Bracket | Configuration dependent |
| Hood / headbox | Hood or headbox to suit the construction; size configuration dependent |
| Bottom profile | Bottom rail appropriate to the grille construction |
|---|---|
| Bottom bar dimensions | Configuration dependent |
| Bottom seal | Optional rubber or EPDM seal where required |
| Lock | Central or side locking according to configuration |
| Operation | Manual, gear operated or motorised; high-cycle configuration available |
|---|---|
| Motor options | Tubular, central or side-mounted motor depending on shutter size and configuration |
| Motor rating | Selected according to curtain weight, opening size, barrel and duty cycle |
| Supply voltage | 230 V AC single-phase or 415 V AC three-phase depending on the selected motor |
| Emergency manual override | Manual override available on powered configurations |
| Controls | Push button, key switch, RF remote, access control, GSM or Wi-Fi where compatible |
| Wind resistance | Configuration dependent |
|---|---|
| Fire rating | Not fire-rated unless supplied as a certified fire-rated system |
| Thermal performance | Not rated |
| Acoustic performance | Not specifically rated; configuration dependent |
| Corrosion resistance | Depends on the material and finish selected |
| Cycle rating | Product and system dependent; a validated rating is published only for a system actually tested to it |
| Opening speed | Motor and configuration dependent |
| Safety devices | Photocell, safety edge and emergency stop available depending on the motor and control configuration |
|---|---|
| Anti-drop device | Available where required; configuration dependent |
| Brake | Motor or gear brake according to the selected operator |
| Obstacle detection | Available with a compatible control and safety system |
| Finish | Paint, galvanized, powder coating, anodising or brushed stainless |
|---|---|
| Colour | Standard colours; custom RAL available |
| Mounting | Face mounted, between jamb or recessed |
|---|---|
| Headroom required | Survey dependent |
| Side room required | Survey dependent |
| Mounting substrate | Masonry, RCC, structural steel or other suitable structural support; fixing selected according to the substrate |
Specifications may vary according to opening dimensions, selected profile, material, operating method, site conditions and final system configuration.
FAQ
Questions we are actually asked
- What bar diameter and spacing do you use?
- Bar diameter is typically in the 6 to 8 mm class and opening spacing approximately 35 to 150 mm, but both depend on the pattern selected. These are reference ranges for the constructions available, not one universal specification.
- How many cycles will a grille last?
- We will not publish a headline cycle figure. Cycle life depends on the specific system, its drive and how it is maintained, and we only state a rating where the supplied system has actually been validated to it. For frequently operated openings, ask for the high-cycle configuration and we will confirm what it is rated for.
- Does a rolling grille keep weather out?
- No, and it is not designed to. It secures and ventilates an opening while leaving it visible. Where weather closure is also needed, the usual answer is a grille paired with a solid shutter.
- What sizes is the Rolling Grille available in?
- It is made to the opening rather than supplied in fixed sizes. Send us the clear width and height along with the headroom and side room available, and we will confirm what the configuration supports.
- Can it be motorised, and can an existing shutter be motorised?
- Yes to both, where the curtain and barrel suit it. Motor selection follows curtain weight, opening size, barrel diameter and how often the shutter runs, so it is calculated for the opening rather than taken from a product line.
- What happens during a power failure?
- Every powered shutter is supplied with a manual override, by hand chain, crank or release depending on the configuration. It is part of the specification rather than an accessory.
- What do you need from us to quote?
- Clear opening width and height, the headroom and side room, roughly how many times a day it will be used, whether it is internal or external, and the finish you want. That is usually enough for a configuration and a price.
